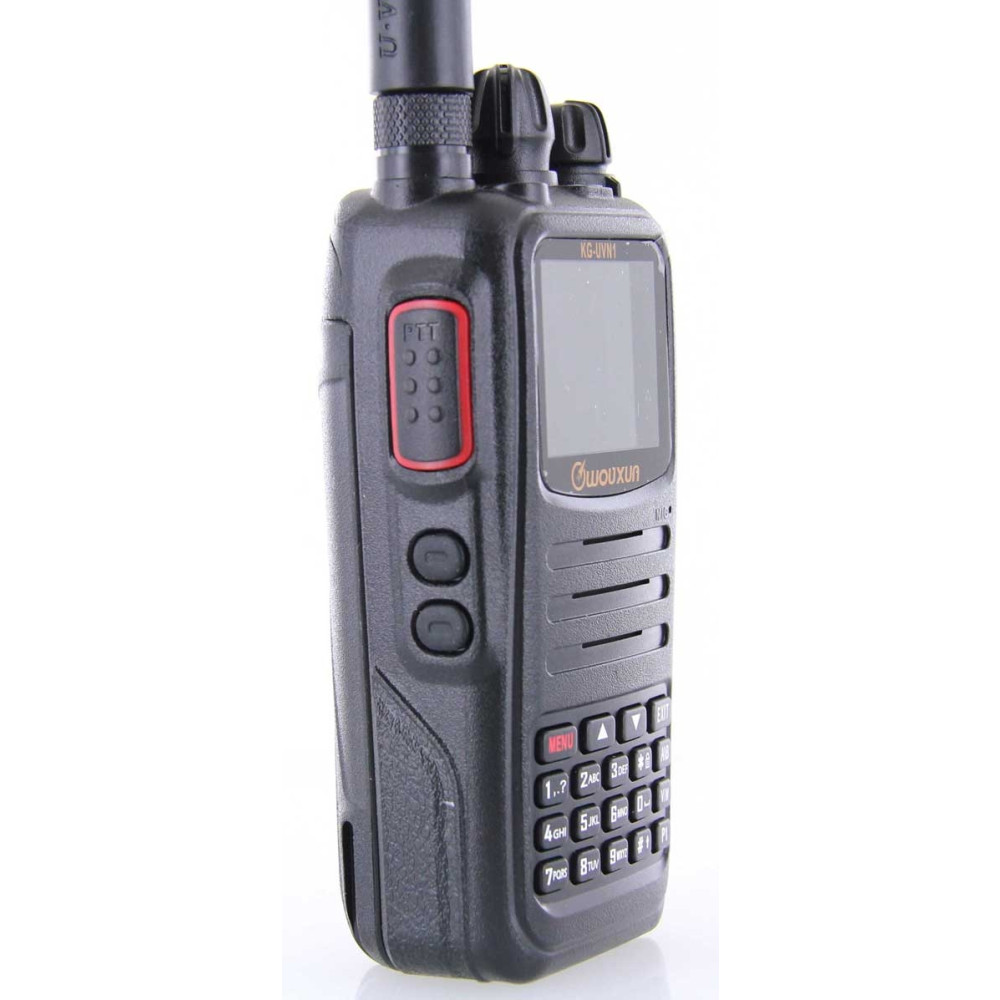

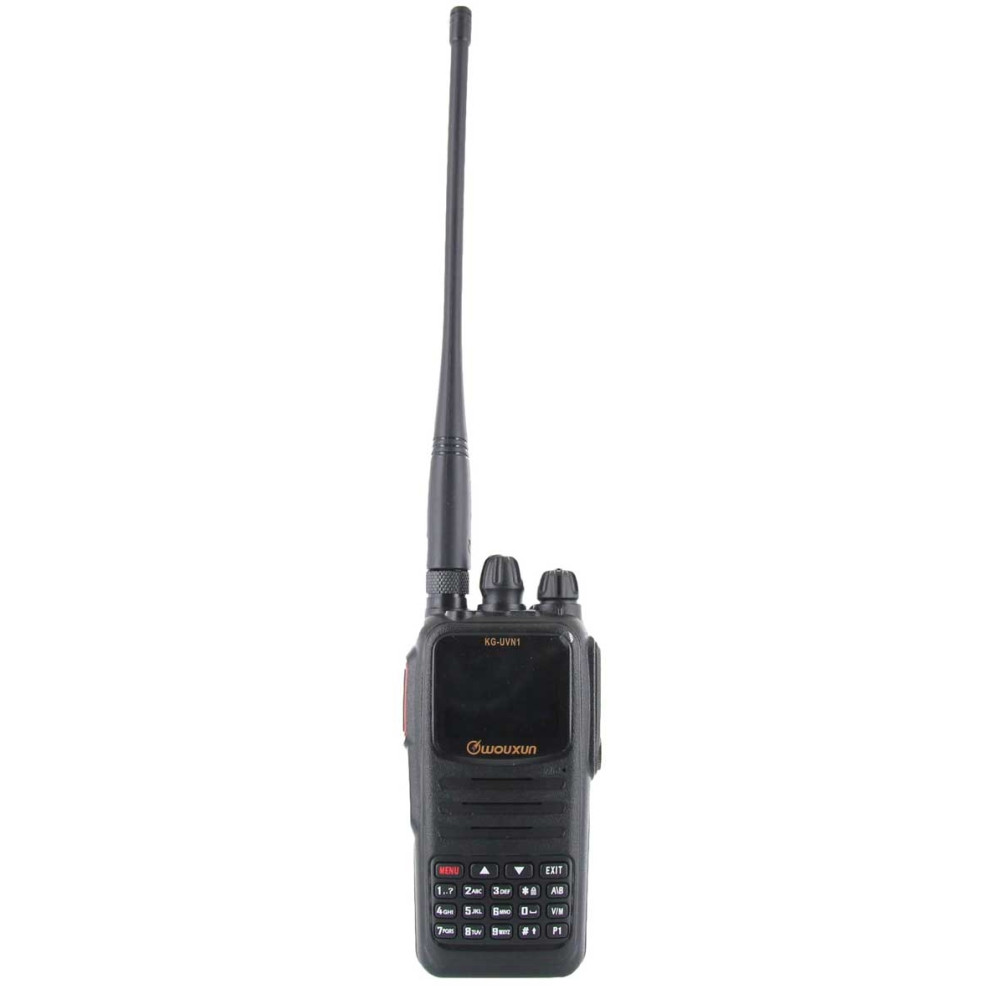

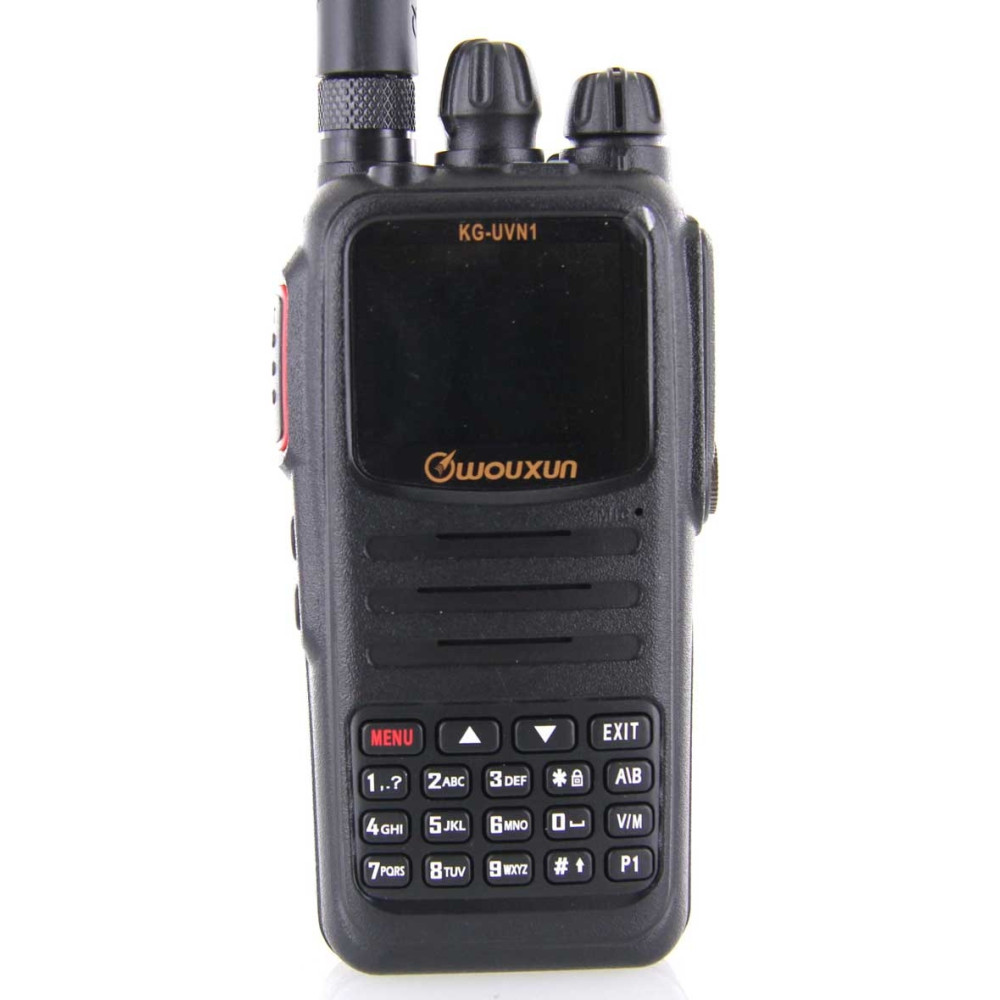

Wouxun KG-UVN1 Dual Band DMR Digital Two Way Radio

85 4 100 0

Quick Overview

Get more from your DMR experience with the Wouxun KG-UVN1 Dual Band DMR Digital Portable Two Way Radio! The KG-UVN1 gives you all the benefits of a high end Digital Mobile Radio while you keep your analog connections, all in one portable handheld transceiver! The UVN1 operates on 70cm UHF frequencies at up to 4 watts and 2 meter VHF with up to 5 watts of power on a 12.5kHz channel using Time-Division Multiple-Access (TDMA) digital technology.

Free Shipping

Limited Quantity

Availability: In Stock

$159.99

Email to a Friend

Qty:

Details

This radio is intended for Amateur Radio use only. See note below for more information.

Get more from your DMR experience with the Wouxun KG-UVN1 Dual Band DMR Digital Portable Two Way Radio! The KG-UVN1 gives you all the benefits of a high end Digital Mobile Radio while you keep your analog connections, all in one portable handheld transceiver! The UVN1 operates on 70cm UHF frequencies at up to 4 watts and 2 meter VHF with up to 5 watts of power on a 12.5kHz channel using Time-Division Multiple-Access (TDMA) digital technology.

The KG UVN1 has 3072 channels, 250 zones, and a whopping 160,000 contacts. The full radioid.net contact database is preloaded onto the radio. It has CTCSS/DCS, digital encryption, channel scan, group scan and text messaging. It features VOX functonality, a full DTMF keypad and programmable multi-function side keys.

The KG-UVN1 is a full featured radio with high end functionality, such as independent programming in VFO and channel modes, Private Call, Group Call, All Call, ARTS function, tail elimination, menu encryption, menu hide, lone worker, and stun/kill/activate options. It has a solid, rugged construction that puts it in the same league for durability as many business class radios.

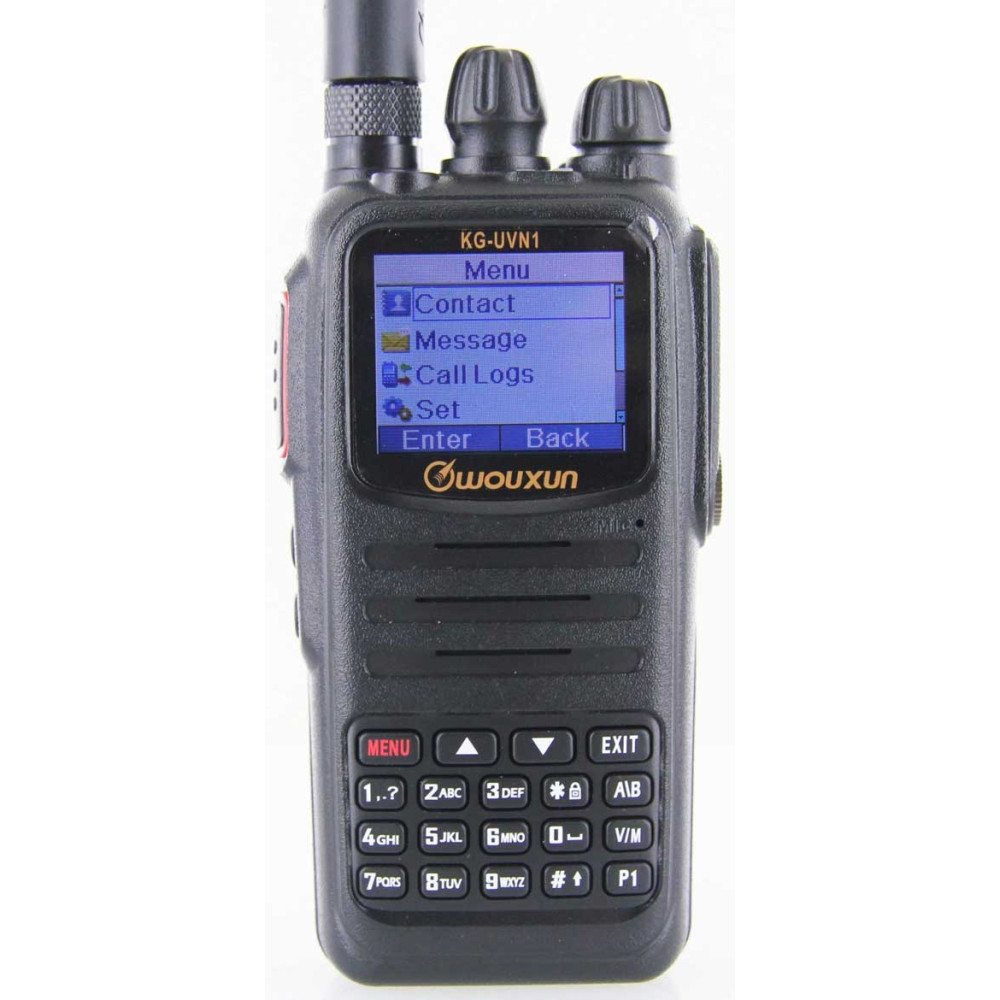

Of course, it wouldn't be a Wouxun without their legendary full color LCD display, and the KG-UVN1 has it. The large, bright screen of the KG-UVN1 offers maximum visual clarity for the display of menus, graphics and text messages, and two frequency bands with the look and feel of a high end, professional two way radio.

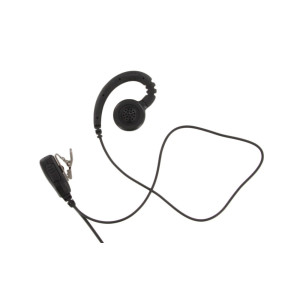

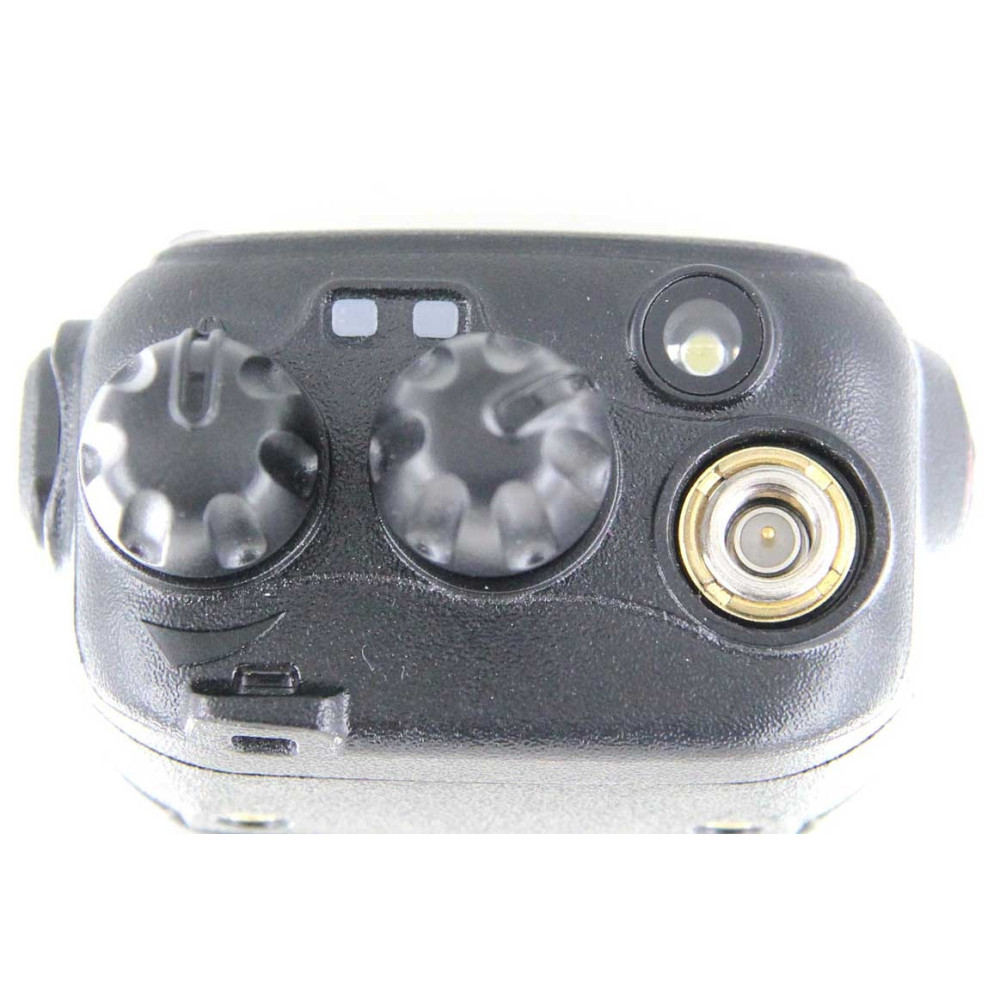

The KG-UVN1 is easy to accessorize. It uses a common SMA Male antenna connector, and the same Kenwood 2-pin (K1) connector used by many other Wouxun radios. If you have another Wouxun, chances are good your headsets, earbuds, speaker mics and other audio accessories will work with the UVN1 as well.

The Wouxun KG-UVN1 is compatible with other makes and models of DMR supported radios. It is Tier I & II compatible. It is also compatible with any existing analog two-way radio operating on the supported UHF and VHF frequencies on the Amateur Radio bands.

Includes one Wouxun KG-UVN1 Dual Band UHF/VHF digital DMR/analog two way radio, antenna, belt clip, AC charger, 2600mAh lithium-ion rechargeable battery, wrist strap, owner's manual and one year manufacturer warranty.

Note

This radio is limited to operation on frequencies within the 2 meter and 70cm amateur radio bands as required by the FCC.

Wouxun is producing this radio with two different firmware versions: one with support for 160,000 contacts, and the other with support for 8 hours of recording. We are shipping the 160,000 contact version. As such, it does not include the 8 hour recording function in order to accommodate the additional contacts.

Disassembly, hardware or software hacks may damage your radio or render it inoperable and will void the manufacturer warranty. Customers who attempt to modify, hack, reverse engineer or otherwise attempt to alter the Wouxun KG-UVN1 radio from its original specifications with the use of hardware or software hacks do so at their own risk.

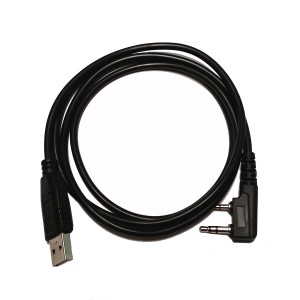

Optional Programming Cable

For your convenience, an optional USB programming cable is available to program the Wouxun KG-UVN1 from a computer.

NOTE: Programming software is available for download from the Downloads tab above.

Videos

Wouxun KG-UVN1 Features

3072 Channels
250 Zones
255 Receiving Groups
160,000 Contacts
Full RadioID.net Contact Database Preloaded
144-148 MHZ VHF Amateur Frequencies
420-450MHz UHF Amateur Frequencies
Built-in CTCSS/DCS
5W VHF/4W UHF Output Power
Repeater Capable

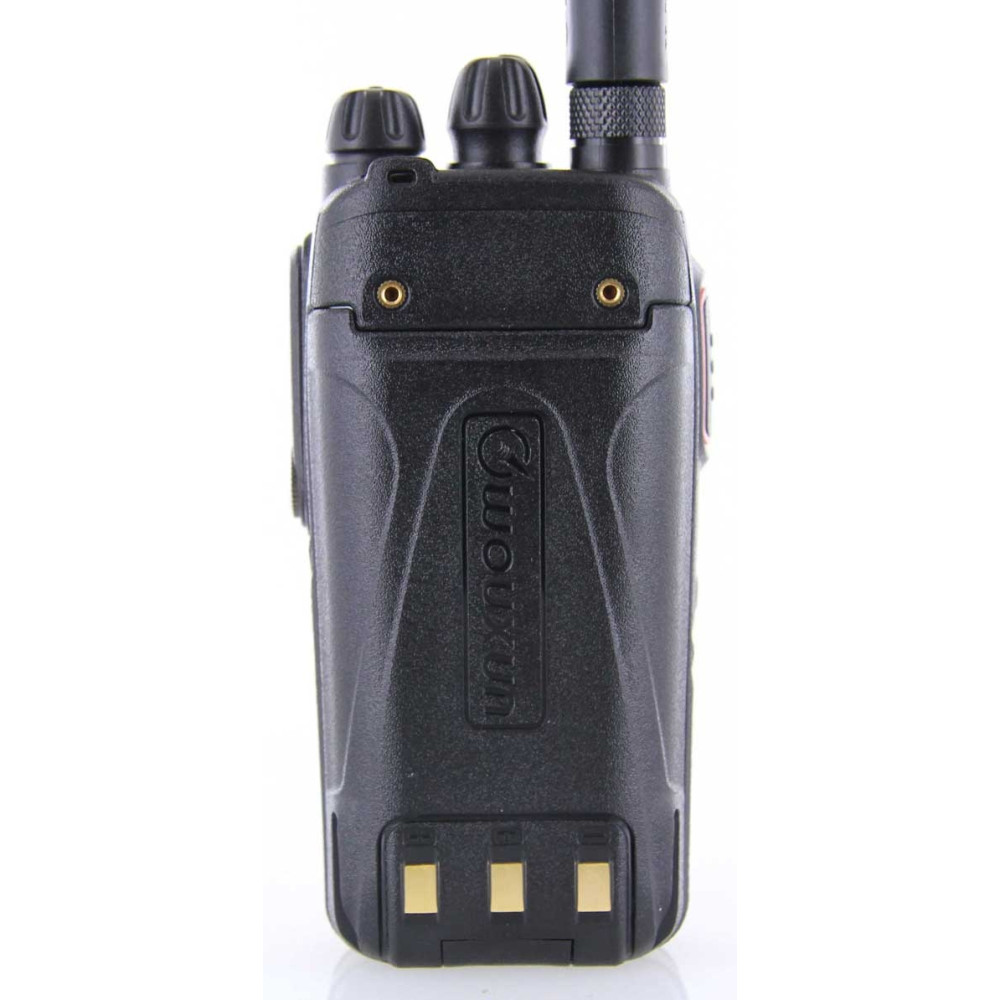

Uses Li-ion Rechargeable Battery Packs
Rechargeable Li-ion Battery Pack Included
Includes Charger
Emergency Alarm
VOX
Encryption (Digital Mode Only)
Private Call/Group Call/All Call
Text Messaging (Digital Mode)
Flashlight
Channel Scan
Priority Scan
ARTS Function
LED Status Light

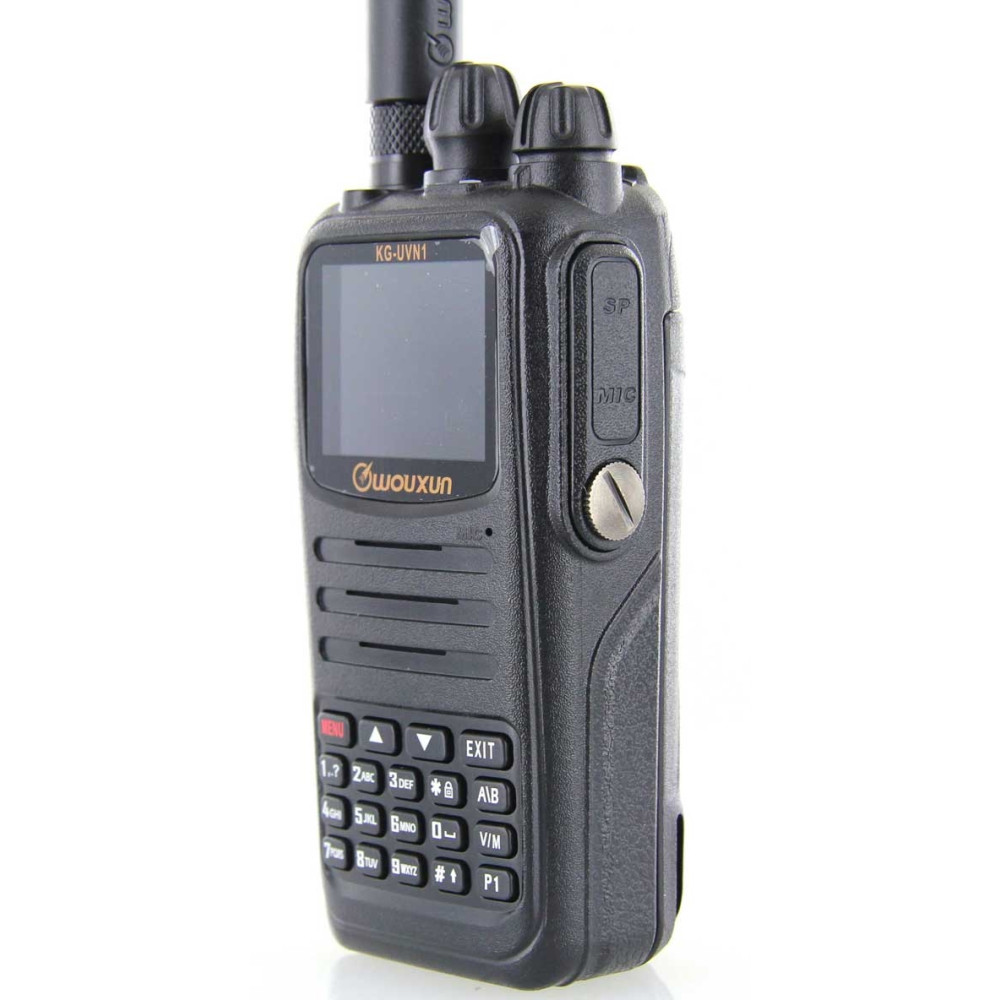

Color LCD Display
Lighted DTMF Keypad
Hi/Low Power Selectable
Signal Strength Indicator
Battery Meter
Low Battery Alert
Battery Saver

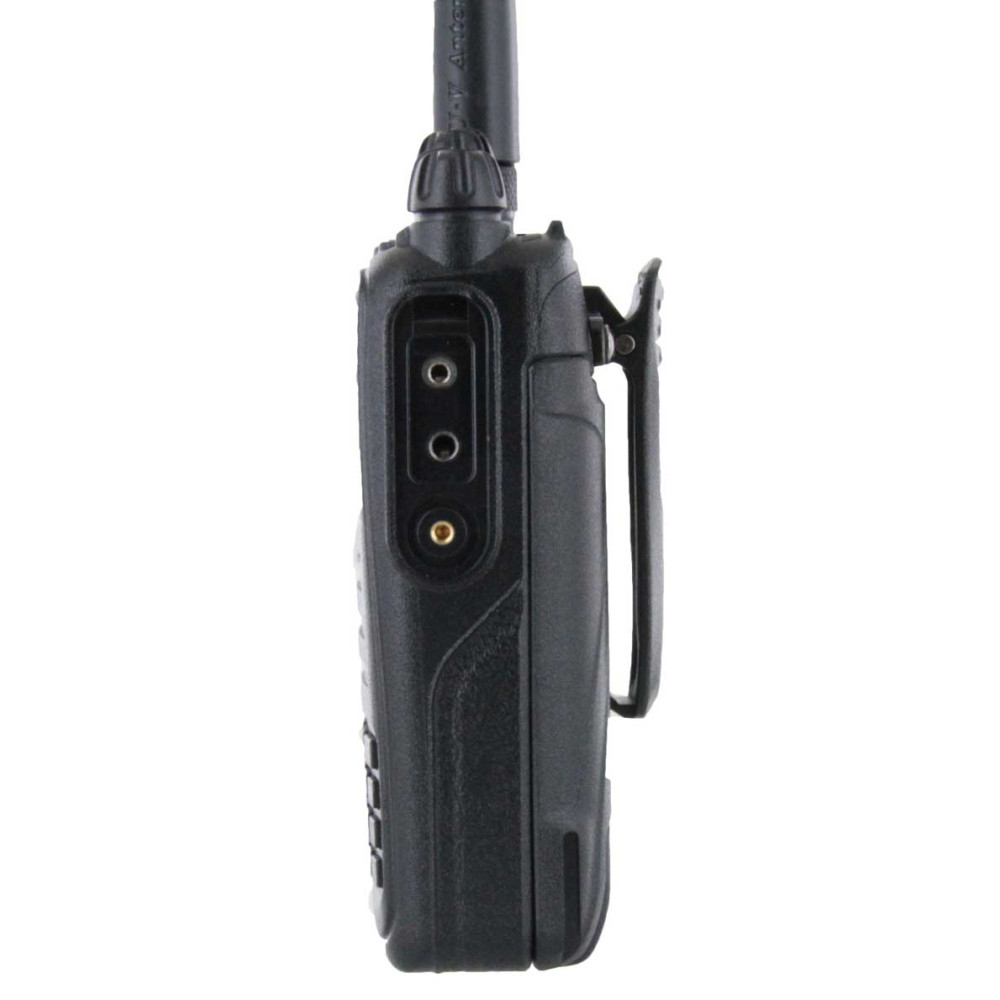

3 Programmable Multifunction Keys
PC Programmable (Optional Software and Cable Required)
Timeout Timer
Keypad Lock
Audible Button Beeps
FM Radio
Tail Elimination
Lone Worker
Drop-In Charge Capable

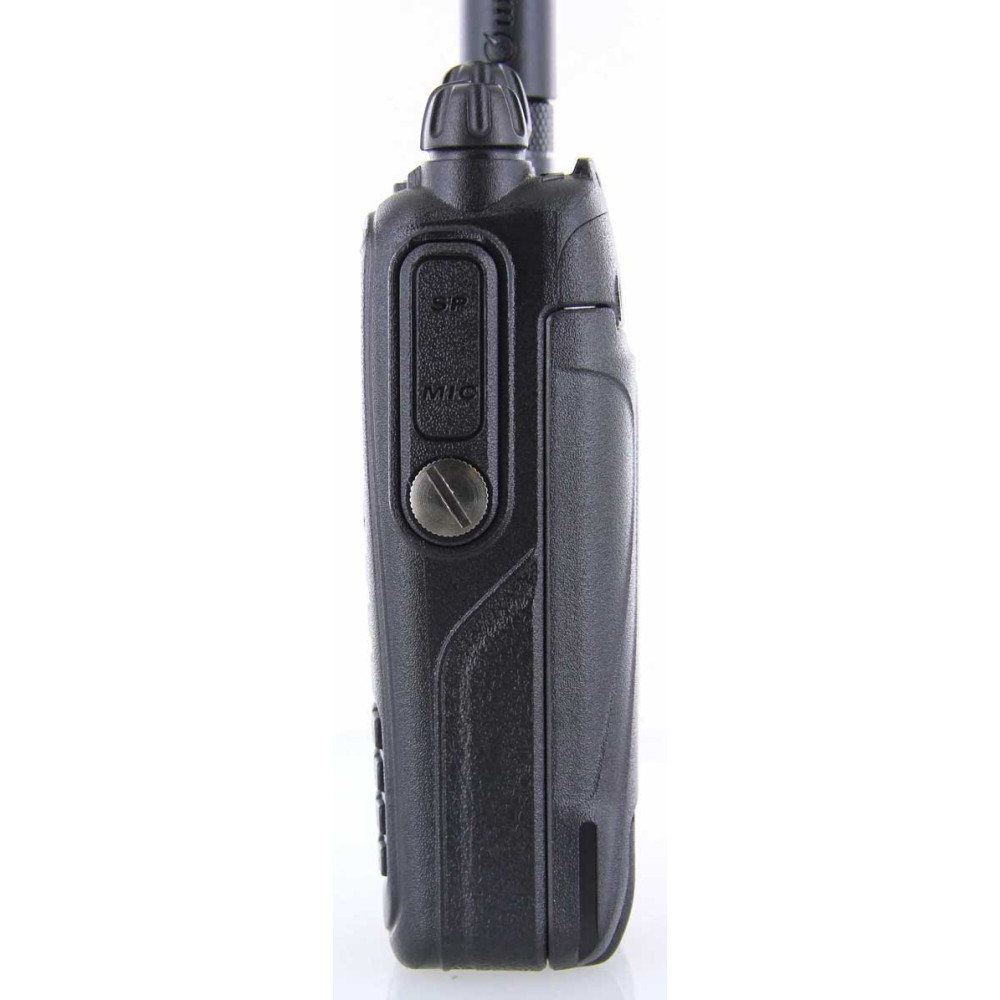

Audio Accessory Connector
TDMA
DMR
Tier I & II Compatible
Independent Programming in VFO/CH Modes
Radio Program Password
Menu Encryption
Menu Hide
Stun/Kill/Activate
Reset
One Year Manufacturer Warranty

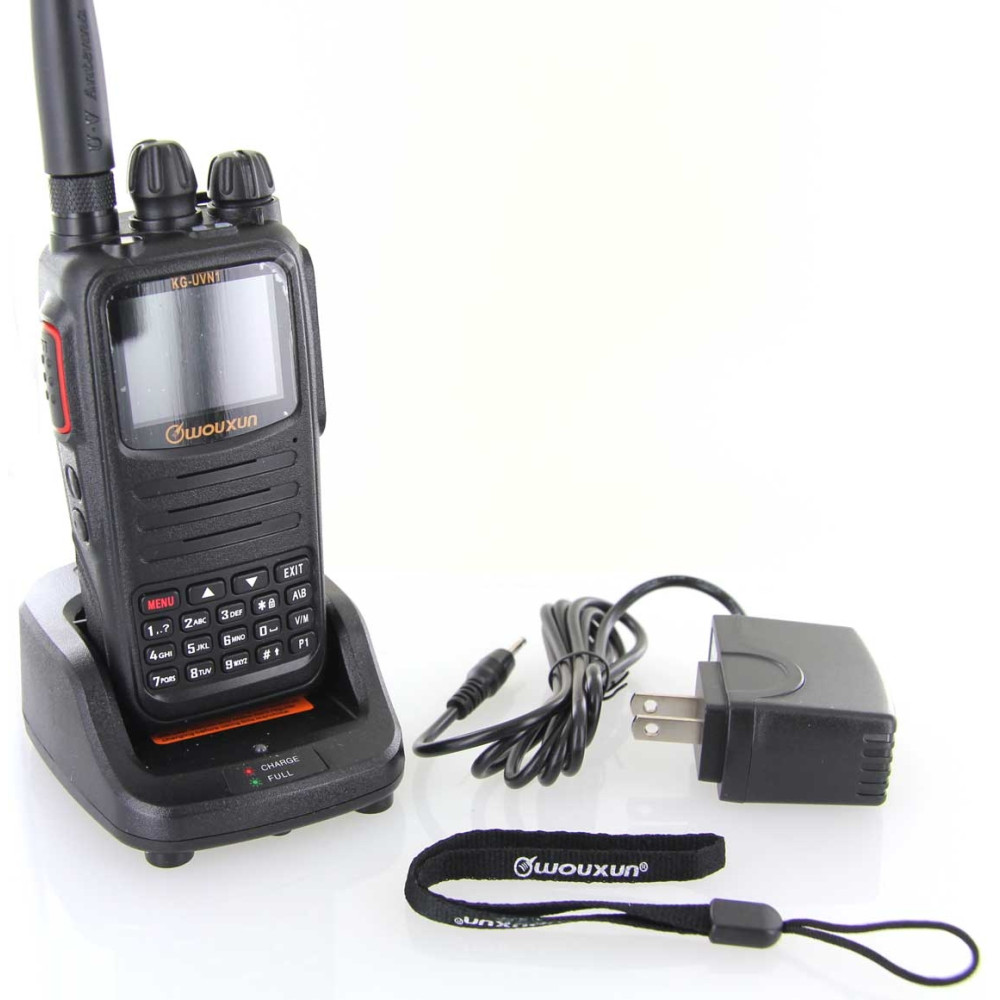

Included with the Wouxun KG-UVN1

Wouxun KG-UVN1 Dual Band DMR Digital Two Way Radio
Li-ion Battery
Antenna
Belt Clip
AC Adapter

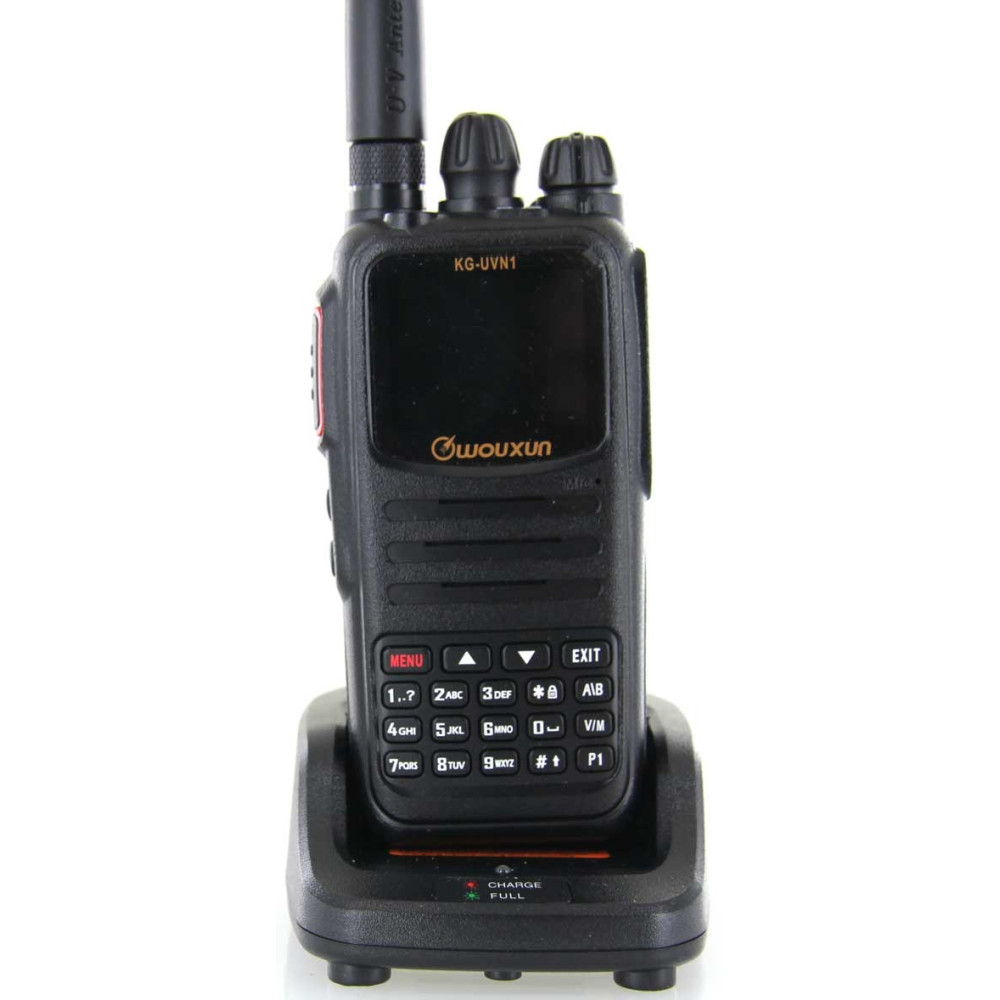

Desktop Charger
Wrist Strap
Owners Manual

Wouxun KG-UVN1 Specifications

Dimensions (Without Antenna): 5.11 in. x 2.51 in. x 1.61 in. (130mm x 64mm x 41mm)
Weight (With Battery): 11.71 oz (331.97 g)
Antenna connector type: SMA Male

Additional Information

Warranty	1 Year
Maximum Output Power	5 Watts
Radio Type	Handheld
Services	Amateur
Safety Features	Flashlight
Digital Standard	DMR
Integration	Repeater Capable
Frequency Bands	2 Meter (VHF), 70 cm (UHF)

Solidly Made HT, Still Learning The Programming review by AB4BF on 11/19/2022

Rating

This is my fourth Wouxun HT and I like them for the audio and clear transmit properties. I'm still learning the programming. There isn't much out there for a tutorial, but, its just another challenge.
Well Made Radio review by Oliver on 5/29/2022

Rating

New to DMR. Fortunately I have a friend who is one of the country's experts on DMR. Could not have programmed it without him, even after studying for many hours before giving him a call. Really need a tutorial on the software, so minus one star.

For operating thru a repeater, if you are using two radios to hear yourself, they need to be at least 20 feet apart, unlike analog.

For group numbers just place the group number in the contact ID and be sure to add group contact to receiver group list, otherwise you won't receive the group.

Add your contact to your channel creation. Be sure to select Digital or Analog first thing and uncheck all the boxes on the upper half of the screen, especially RX only.

You have to have repeater frequencies, color code and time slot for the group.

That should get you started.
excellent radio & firmware review by geoffrey on 5/15/2022

Rating

excellent radio & programming software / hardware.no real problems with programming the radio but the dmr is new to me & i'm having to take my time to get it done properly.very happy with this radio & would buy another one down the road if the radio still is available.the radio has the feel & look of a public safety type radio which can be used for a security radio when working security as well as when you do neighborhood watch programs in your neighborhood.wouxon radios are a great radio for the money wouxon needs to make a radio that can get all of the bands even the public safety bands such as the 700mhz to 900mhz.even the higher bands that are ham bands in the 1000mhz n up.
love everything about this radio but the manual needs to be more detailed on how to program dmr frequencies n contacts because the dmr is very complicated to figure out.
Solid Radio - Poor Software review by WA9RYO on 10/26/2019

Rating

A very solid radio, but the software is poorly executed. The database manipulation (when bringing up Contacts) is super slow. You cannot edit contacts. No automatic offsets. CHIRP'does not support this radio and thus there are no codeplugs available to copy.
