Details

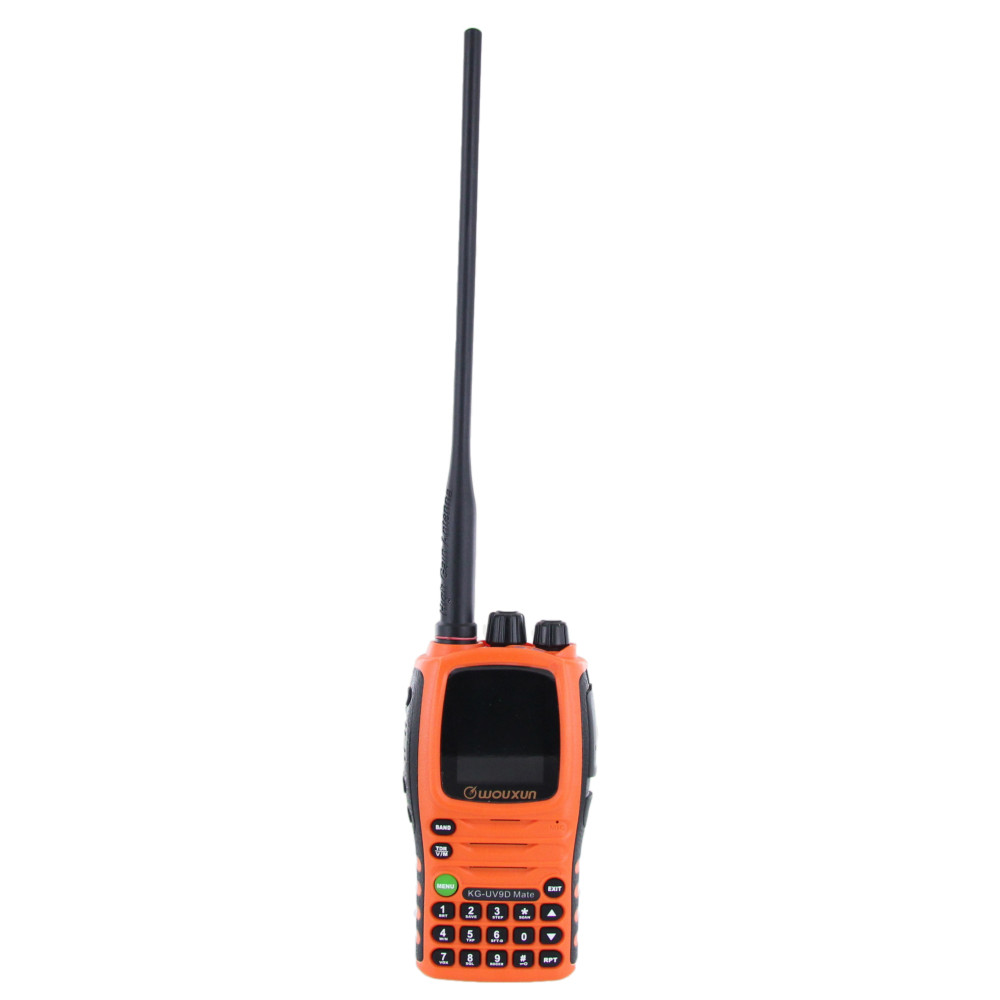

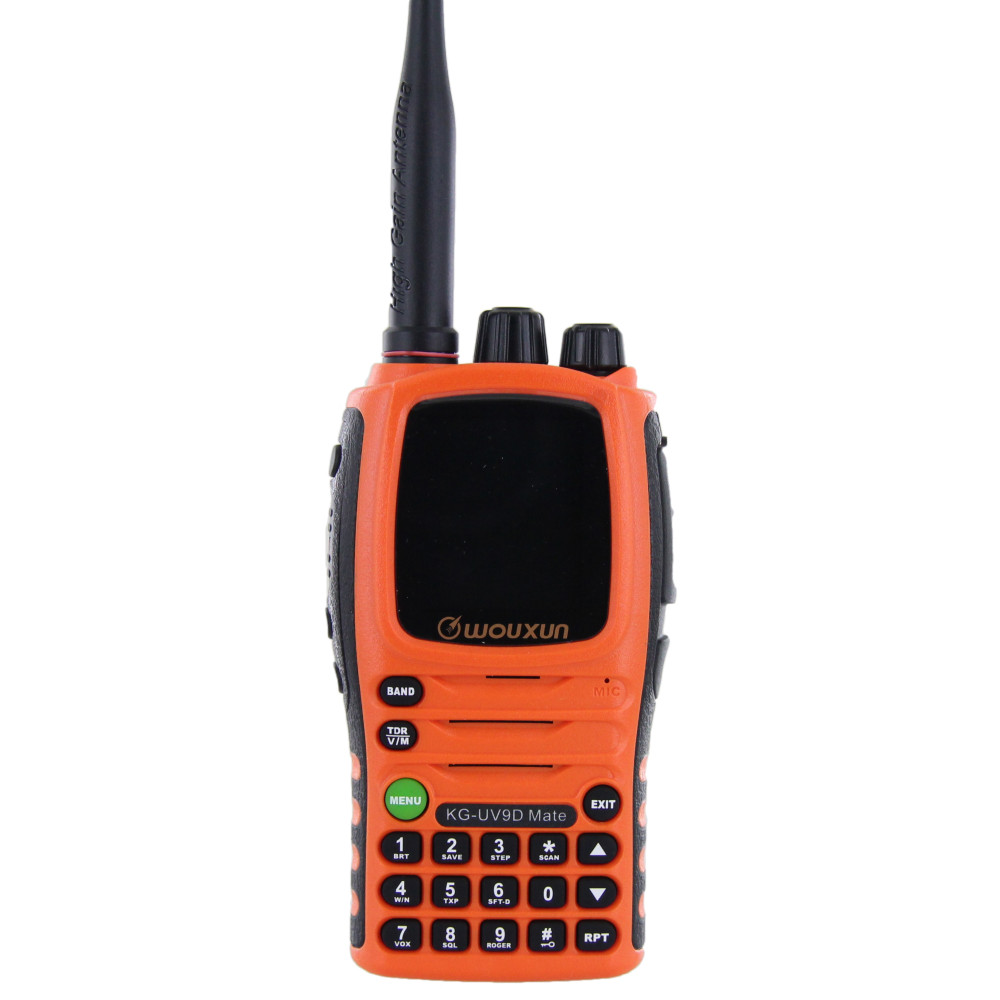

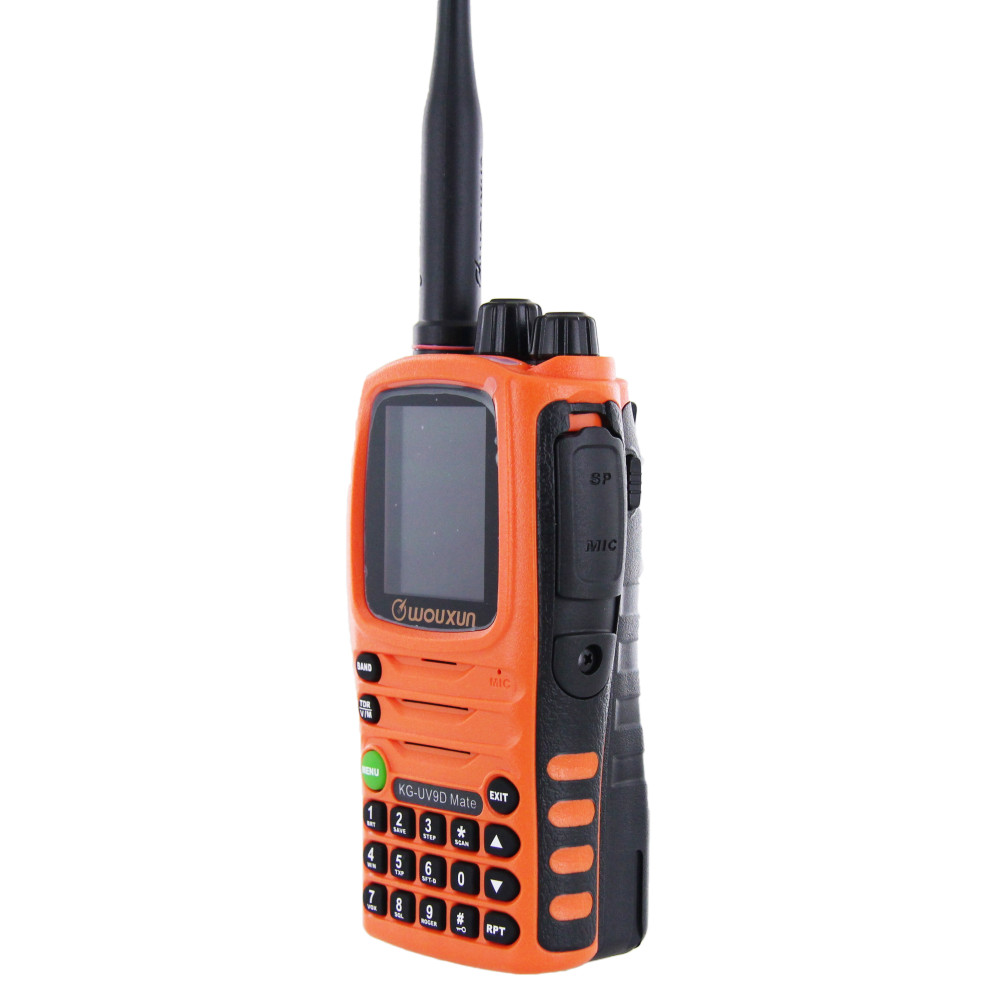

The Wouxun KG-UV9D Mate brings multi-band excitement back to amateur radio! It's a multi-modulation transceiver that combines dual band transmission, 7 band reception and multiple feature options for multi-functional operation you won't get with the typical dual band handheld radio!
The KG-UV9D-MATE transmits on up to 8 watts UHF and a whopping 10 watts VHF with high, medium and low power settings. It features an impressive 999 programmable memory channels with QT/DQT encoding and decoding, DTMF encode/decode and 25KHz/12.5KHz wide/narrow bandwidth selection.
Dual Band Transmission - 144-148MHz VHF (FM TX)
- 420-450MHz UHF (FM TX)
7 Band Reception - 76-108MHz (FM Radio)
- 108-136MHz (AM RX)
- 136-180MHz (FM RX)
- 230-250MHz (FM RX)
- 350-400MHz (FM RX)
- 400-512MHz (FM RX)
- 700-985MHz (FM RX)
The KG-UV9D Mate operates on multiple tiers to maximize the portable amateur radio experience! It has
true dual reception, so you can receive two signals on the same or different bands at once. You can even transmit on one band while you receive on the other simultaneously. It can also be configured as a portable handheld cross-band repeater!
But its multi-function operation doesn't end there. The KG-UV9D Mate has multiple
scan capabilites, as well. Priority scan, channel group scan, plus CTCSS/DCS scanning is standard with this radio. Want more scan excitement? With dual receive, the KG-UV9D can scan two bands at the same time. Now,
that's multi-functional excitement!

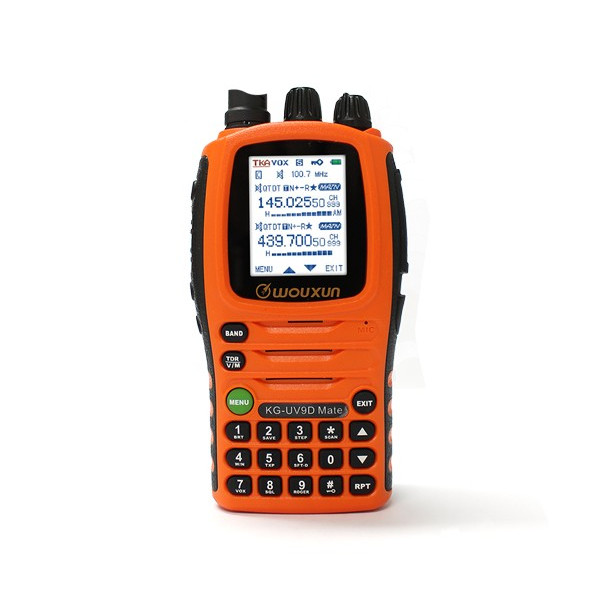

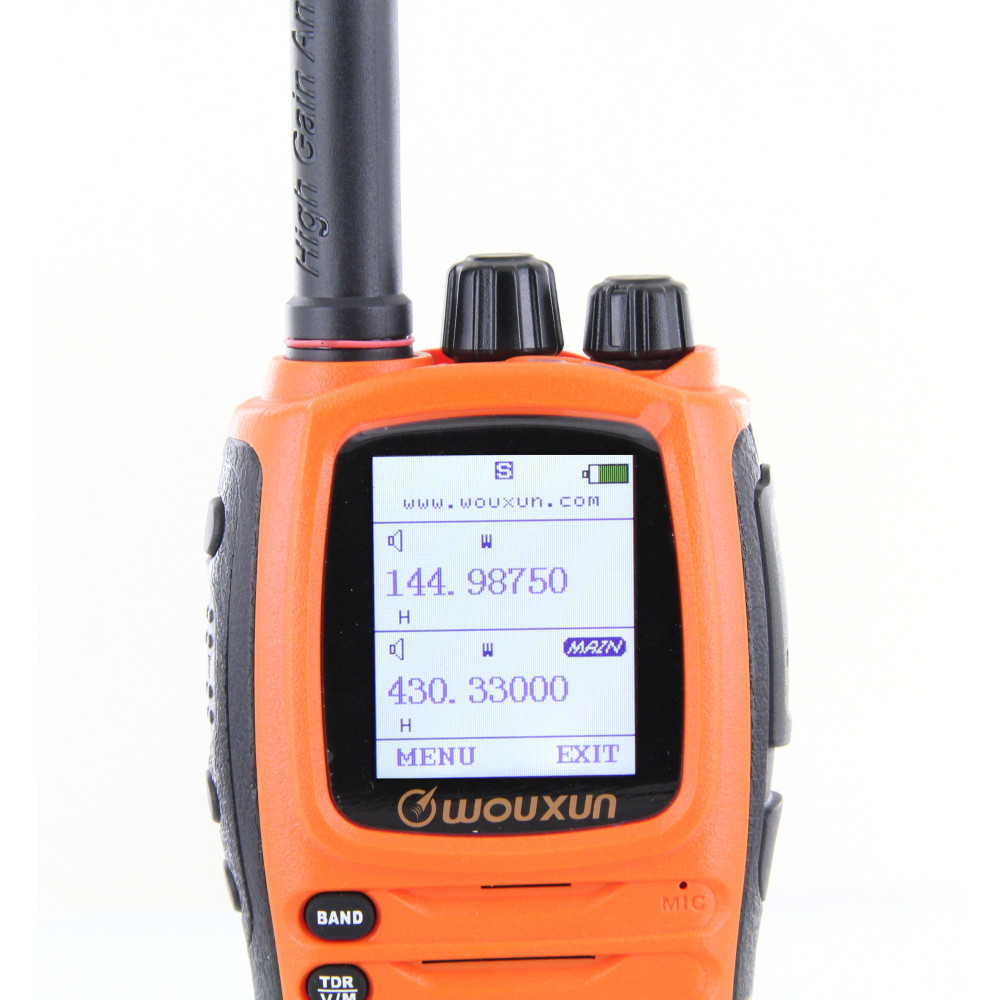

Then there is the color multi display. Since its introduction with the classic KG-UV8D, the concept of a large, color screen is naturally part of the KG-UV9D Mate. It has plenty of room to display all the information needed to operate a multi-function radio on both bands at the same time. The display is also adjustable, with five levels of brightness. Customize the settings for your viewing comfort while conserving battery power as needed. With the KG-UV9D Mate in your hand, you are in control of your wireless communications!
Speaking of control, check out
Lock Mode. You can choose to lock only the keypad, lock the keypad and the encoders, lock the keypad and the PTT, or lock it all. It's no longer all or nothing. Multiple lock options let you decide how your radio can be accessed, keeping you in control.

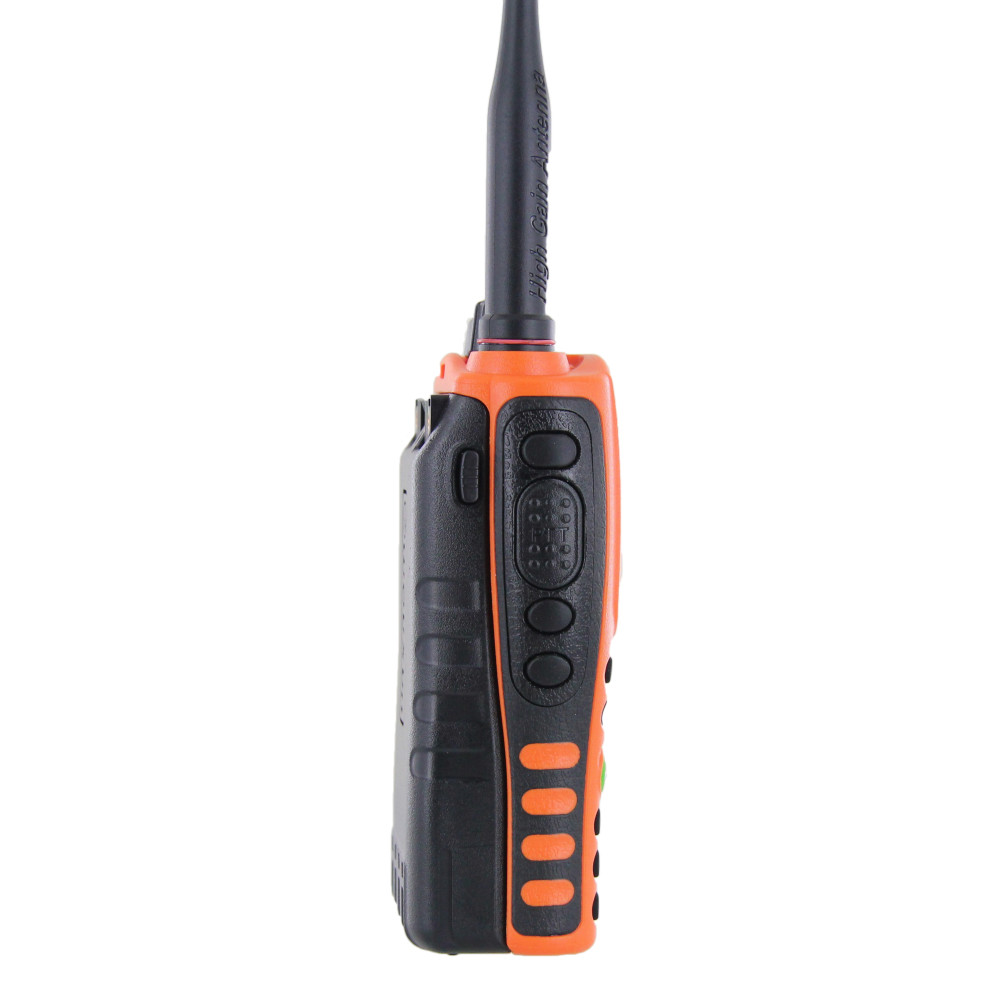

The KG-UV9D Mate is also loaded with a plethora of other features to make it truly multi-functional! Three programmable side keys, sub-frequency transmission setting, Channel Name edit and display, Caller ID display, 76-108Mhz FM radio, SOS function, remote alarm, single-tone pulse frequency, reverse frequency, stun, kill, monitor, inspection, low voltage voice prompt, VOX (Voice Operated Transmit) for hands-free operation and a high illumination flashlight are all part of the package. And yes, like the 8D, the KG-UV9D Mate has a stopwatch!

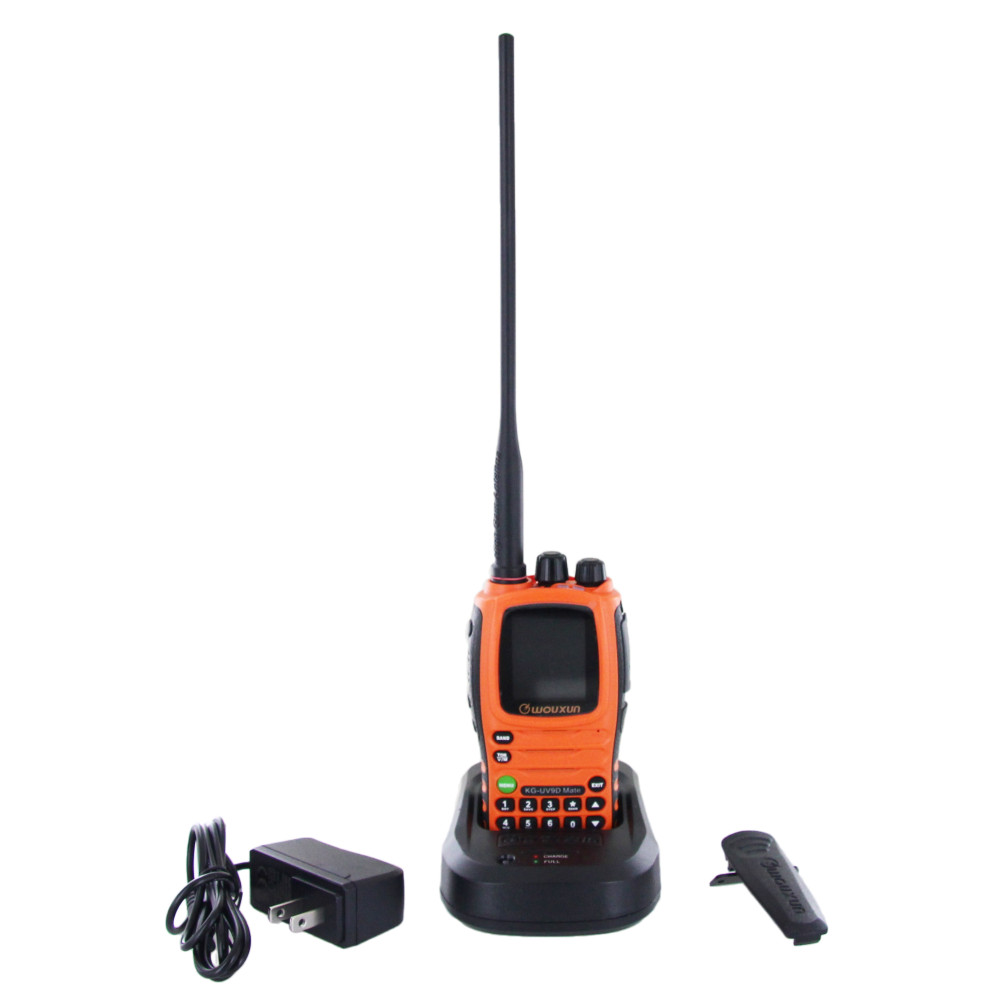

The Wouxun KG-UV9D Mate comes with a 3200mAh Li-Ion battery pack, belt clip, high gain antenna, wrist strap, desktop charger, AC cord, owner's manual and a one year manufacturer warranty from Wouxun.
Optional Programming Cable
For your convenience, an optional USB programming cable is available to program the Wouxun KG-UV9D MATE from a computer.
NOTE: Programming software is available for download from the Downloads tab above.
Wouxun KG-UV9D Mate Features
- 999 Memory Channels
- Dual Band Transmit
- 144-148MHz VHF Frequencies RX/TX
- 420-450MHz UHF Frequencies RX/TX
- 7-Band Receive
- Repeater Capable
- Cross-Band Repeat Capability
- 8W UHF/10W VHF Transmit Power
- Li-Ion Battery Pack
- 3200mAh Rechargeable Battery Included
- Battery Charger
- FM Radio
- SOS Feature
- Memory Channel
- Simultaneous Scanning on Twin Bands
- Priority Scan
- Dual Watch
- Dual Receive
- Busy Channel Lockout
- Duplex Work Mode
- Reverse Frequency Function
- CTCSS/DCS Tones
- CTCSS/DCS Tone Scan
- Large Color Backlit LCD Display w/5 Level Brightness
- Channel Name Edit and Display
- Battery Meter
- Low Battery Alert
- Power Saver
- Timeout Timer
- VOX
- Multiple Lock Modes (Keypad, Encoders/PTT/All
- English Voice Prompts
- Drop-In Charge Capable

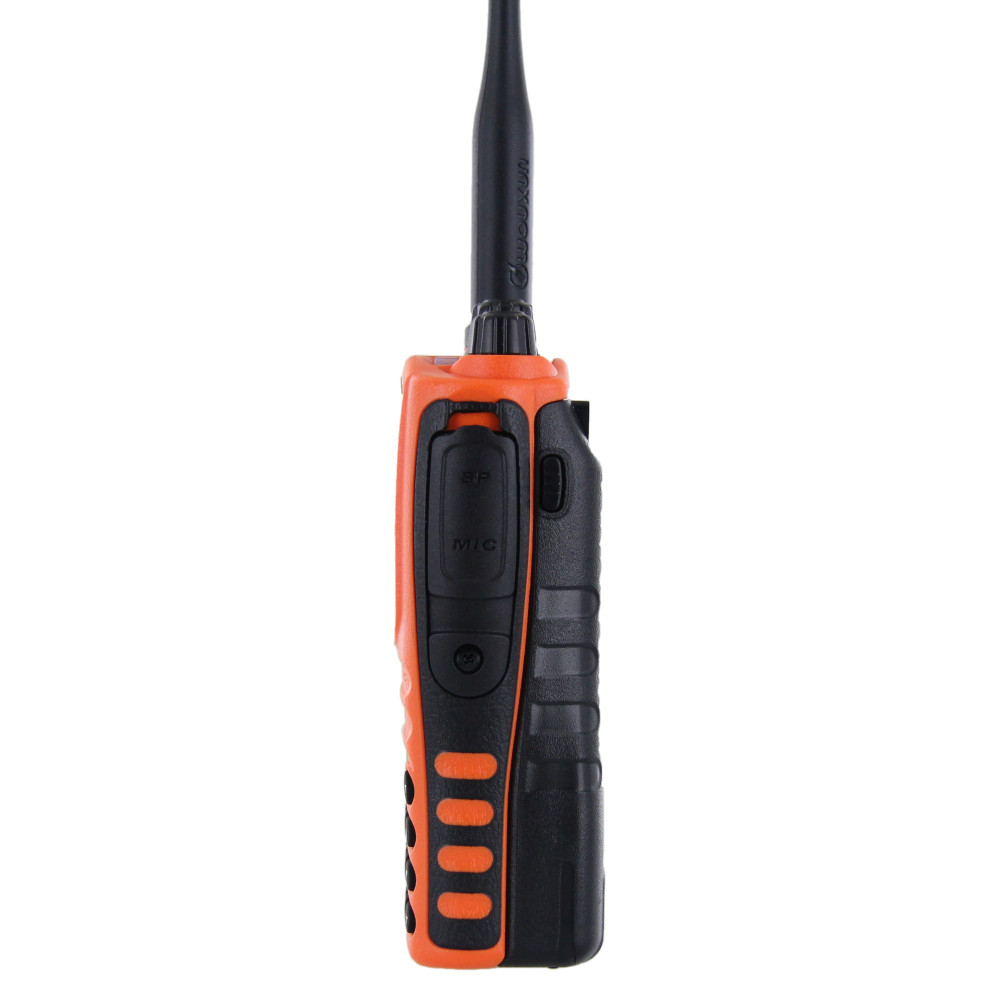

- Audio Accessory Connector
- Cloning Capable
- PC Programmable (Requires Optional Cable)
- LED Flashlight
- Stopwatch
- DTMF Encode/Decode
- Reset
- One Year Manufacturer Warranty
Included with the Wouxun KG-UV9D Mate
- Wouxun KG-UV9D Mate Two Way Radio
- 3200mAh Li-Ion Battery Pack
- Multi-Band High Gain Antenna
- Belt Clip
- Wrist Strap
- Charger Tray
- AC Adapter
- Owners Manual
Wouxun KG-UV9D Mate Specifications

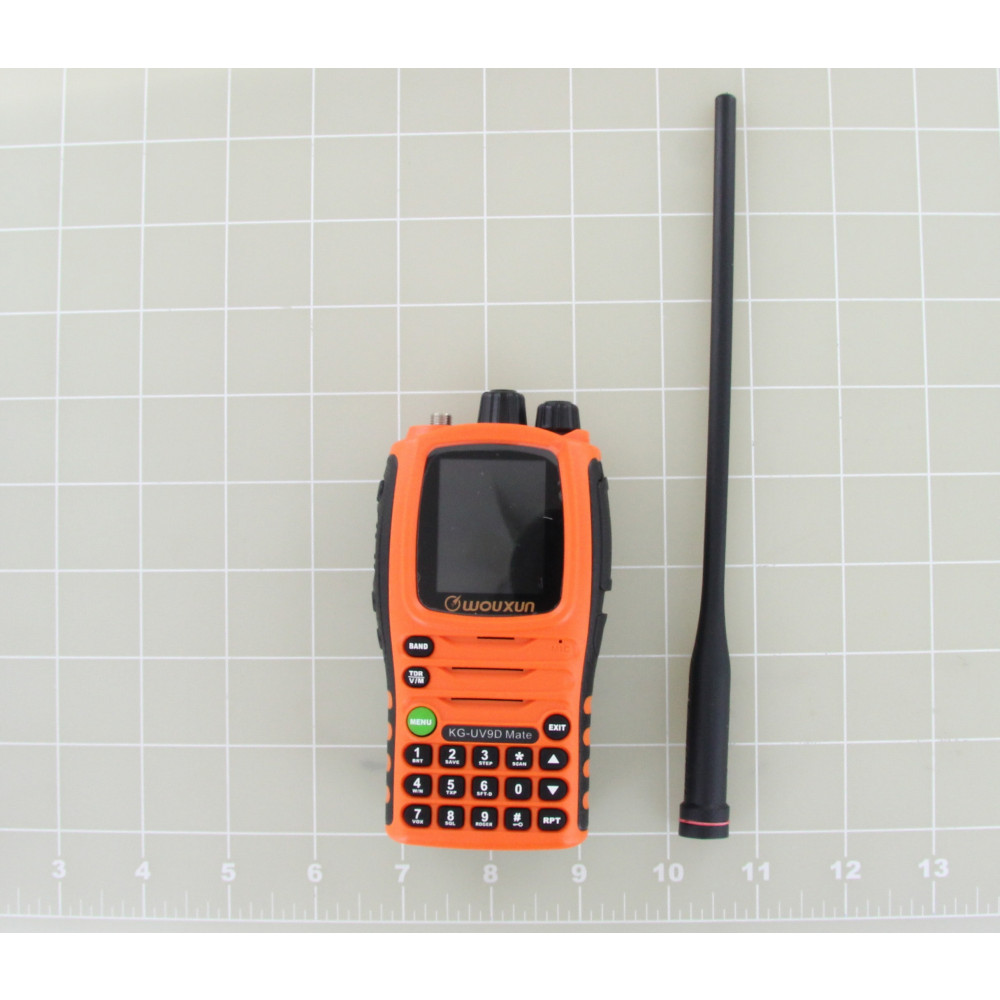

- Dimensions: 124.5mm × 61.49mm × 33.88mm
- Weight: 490g
- Antenna connector type: SMA Female (Standard)
