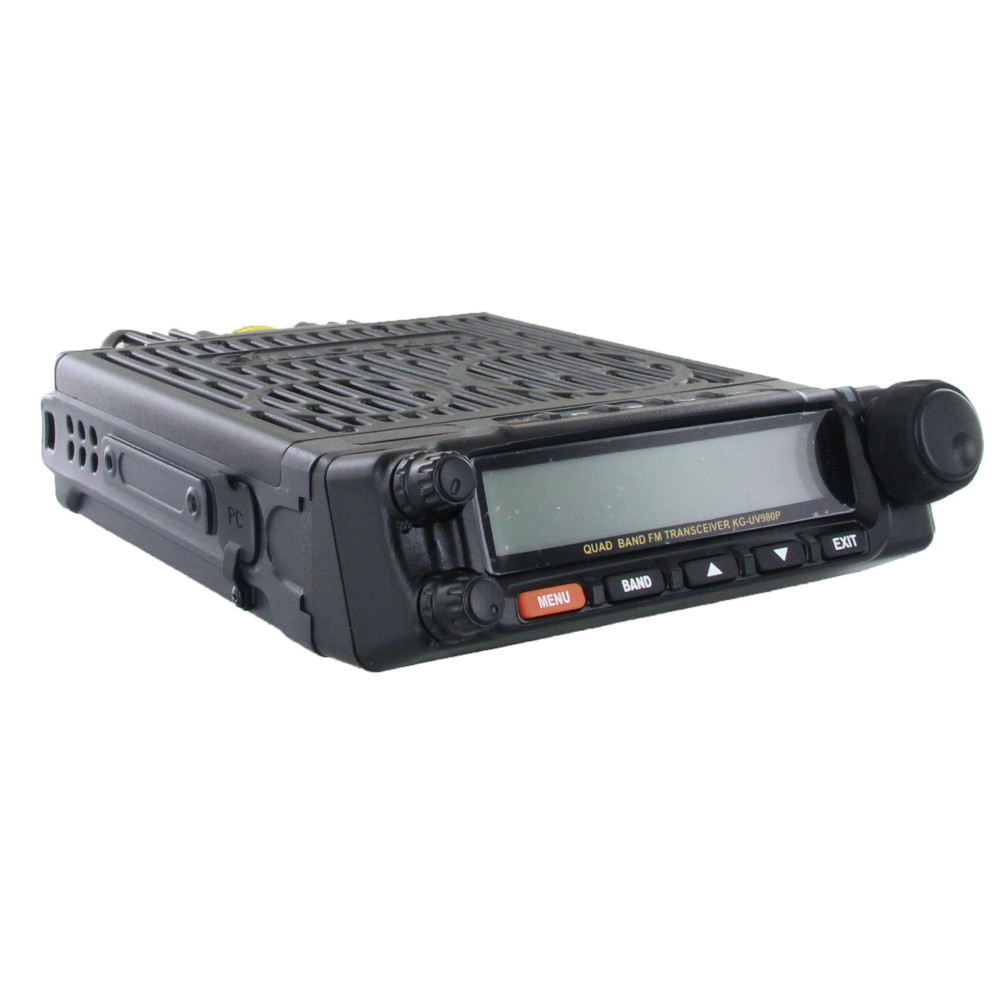

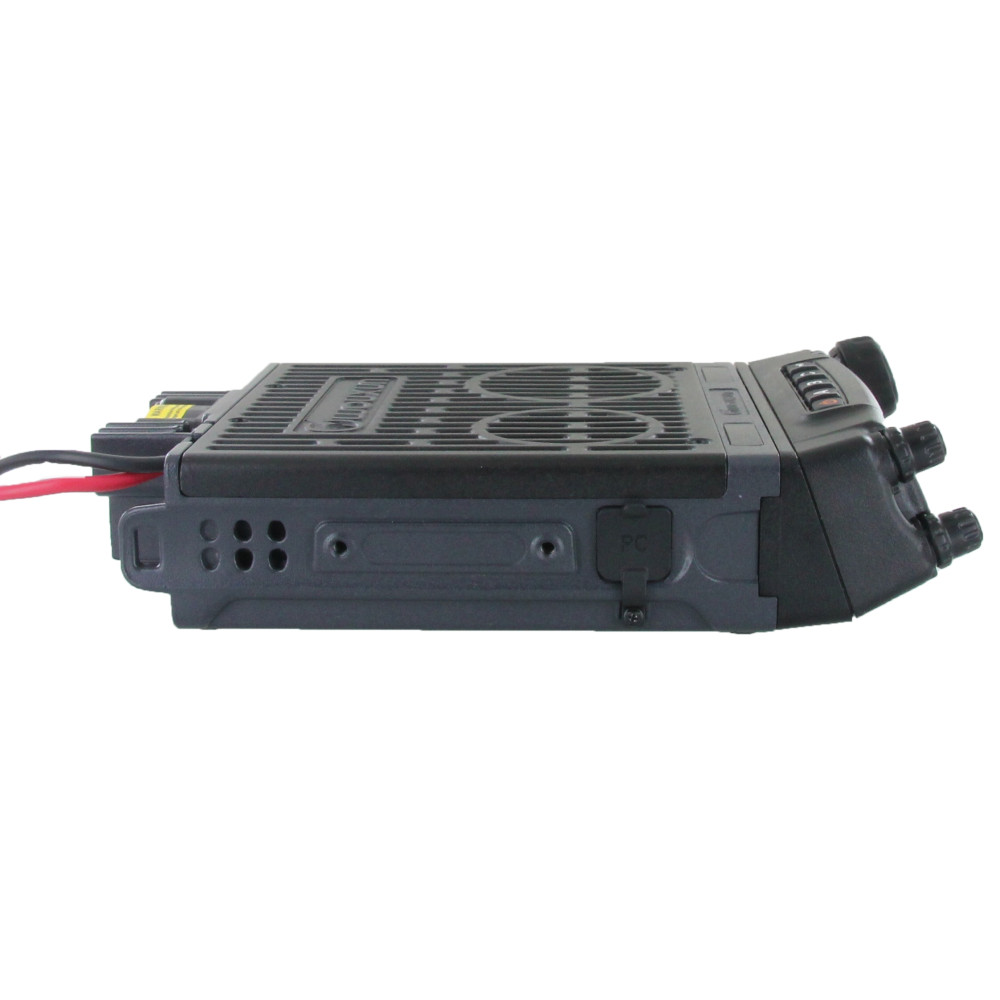

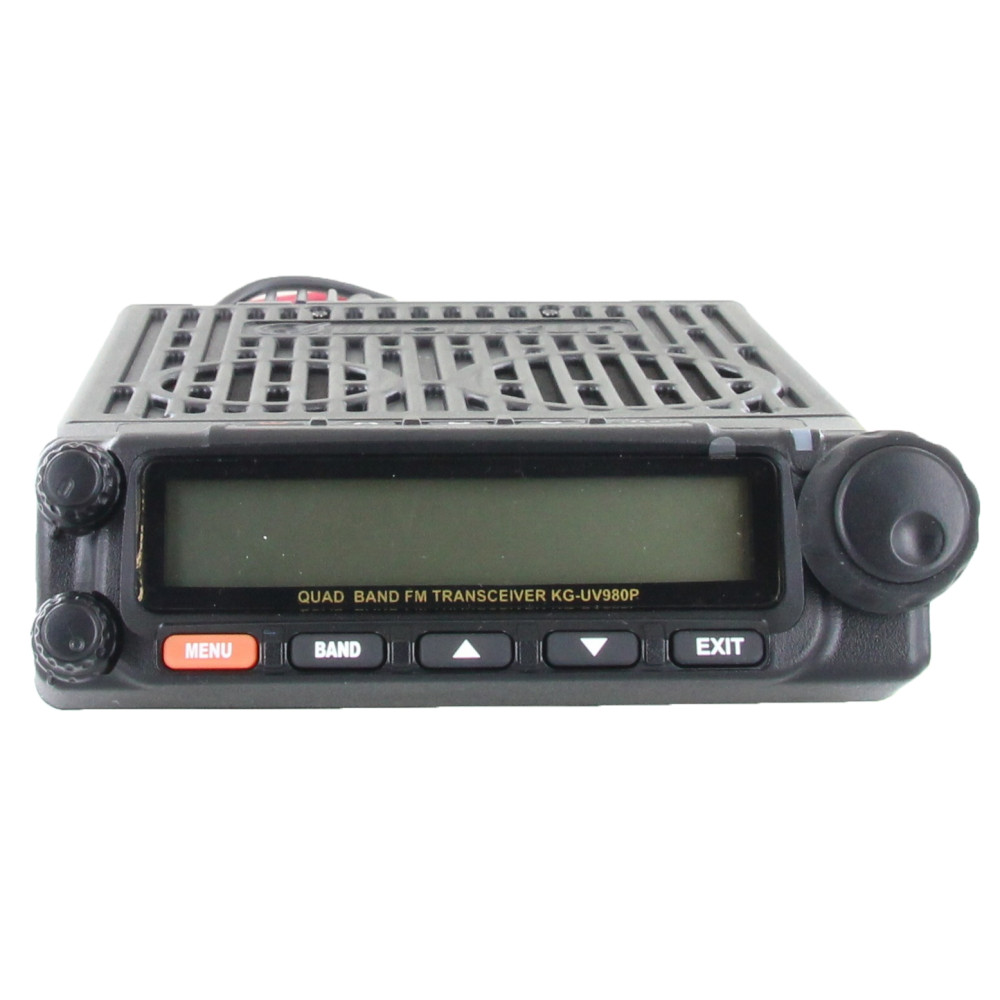

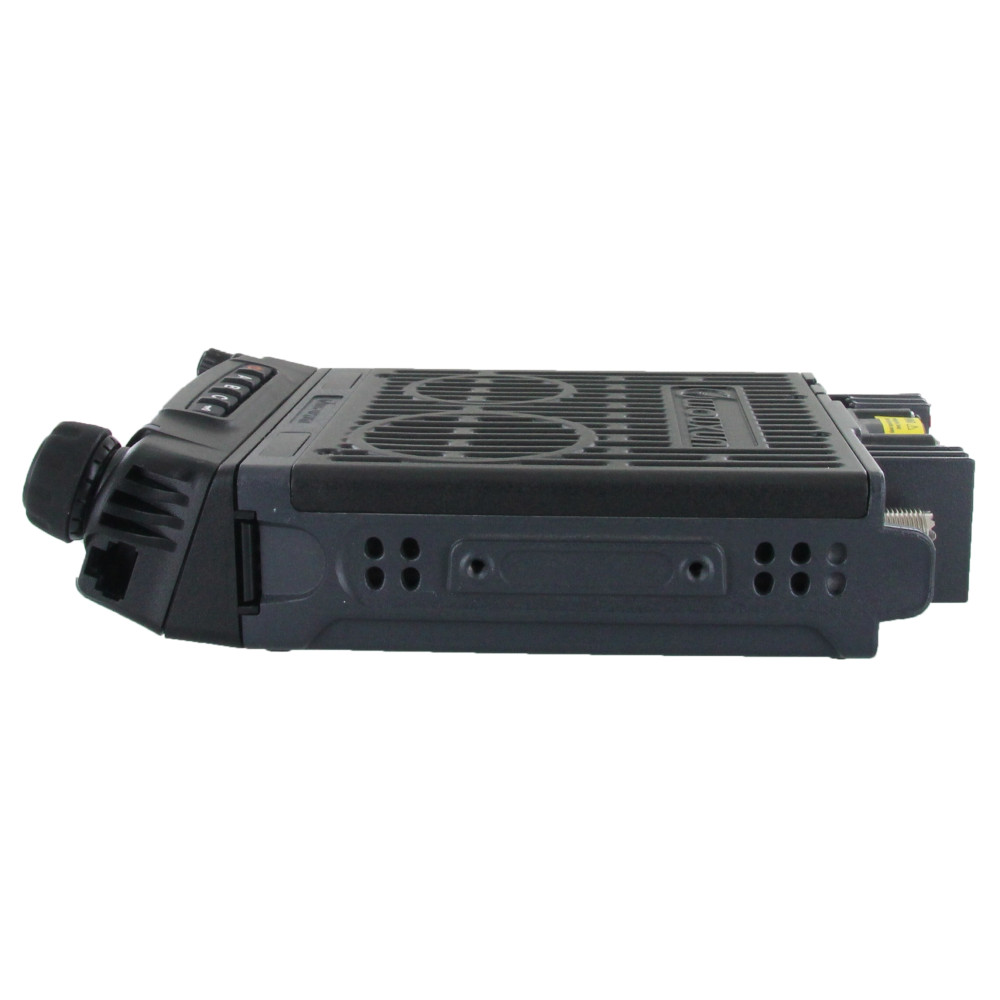

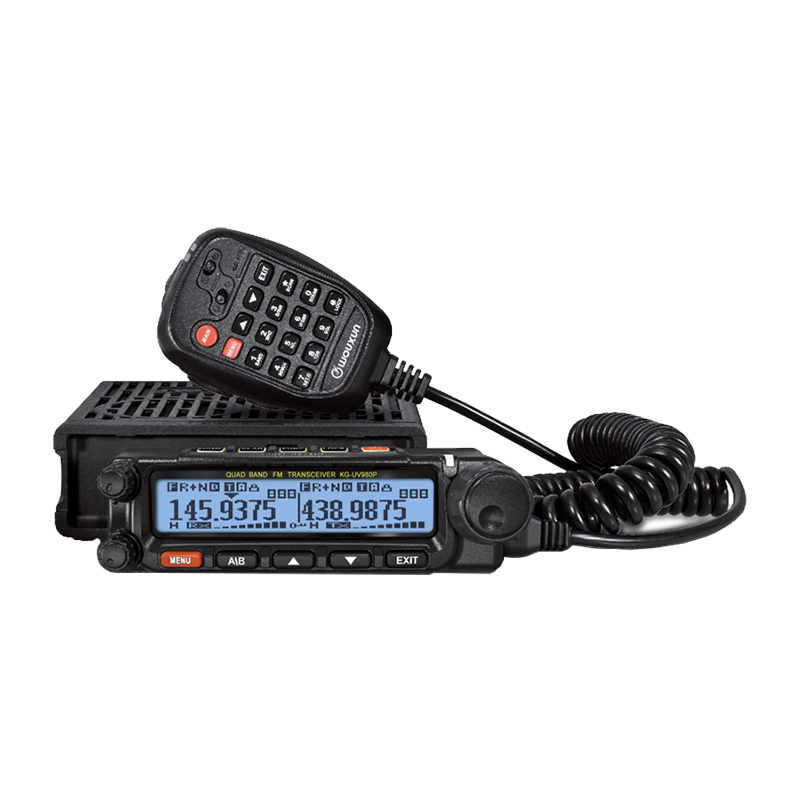

The Wouxun KG-UV980P is a new Quad Band base/mobile two way radio packed with a plethora of features at an unbelievably affordable price. With four band transmission and eight band reception, this powerful radio delivers up to a maximum of 10 watts on 6 meters, 10 watts on 10 meters, 40 watts on 70 cm UHF and 50 watts on 2 meters VHF for maximum range and power at extremely low cost!
The KG-UV980P has 999 programmable memory channels with CTCSS and DSC encode/decode, DTMF encoding/decoding, priority channel scanning, and twin band simultaneous reception. You can select wide or narrow bandwidth (25KHz/12.5KHz) at the press of a button and select your output power level to high, medium or low for optimal transmission.
Want more power? That's only the beginning. The real power of the UV980P is in its versatility. The Wouxun KG-UV980P isn't merely a two way radio, it's a full duplex cross-band mobile repeater! Choose from five repeater settings - normal radio mode, directional cross-band repeater mode, two way cross band repeater mode, repeater receiving mode (receiver) or two-way cross-band relay mode (used to combine two transceivers into a repeater). Yes, that's right. You can connect

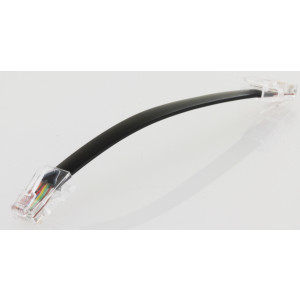

two KG-UV980P radios together using the 15 foot extension cable or the microphone connection cable (both included)
to create your own working repeater! Now
that's power!
Impressed? There's more. The KG-UV980P has dual speakers built right into the top of the chassis with multiple speaker channel settings,
plus a speaker built into the DTMF hand microphone, for a grand total of
three supplied speakers!
But wait, there's still more. All the standard features of a Wouxun mobile/base station are there too, such as the built-in 76-108Mhz FM radio, 1750Hz burst tone, Channel Name edit and display, group calls, 8 group scrambler, low voltage voice prompt, stun and kill function, reduced noise settings, remote control setting and a built-in cooling fan. They are all included as standard issue in this model.

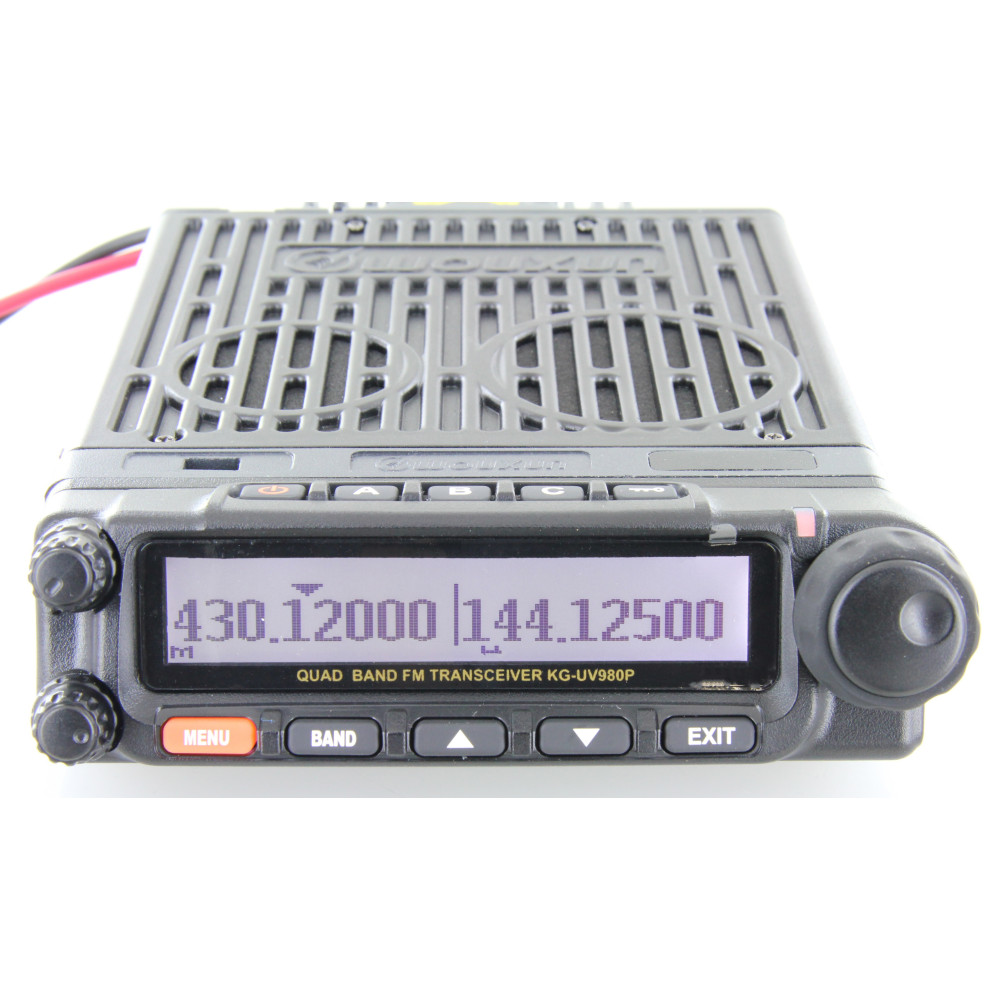

That's not all. The large, dual frequency LCD display of the popular KG-UV920P is included the KG-UV980P as well. The backlit buttons on the front panel help you see them in the dark. The full featured keypad on the handheld speaker mic is also backlit and voice prompts assist you with menu navigation.

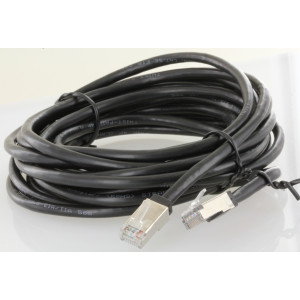

The front panel is also customizable! The KG UV980P includes two kinds of switchboard panels to fit your installation. Choose from an upward facing inclined panel or a flat panel for installation in your vehicle. The front panel as detachable and can be relocated separately from the radio chassis. The included 15 foot extension cable allows you to install it just about anywhere in your vehicle so you can have it right where you need it.
The KG-UV980P can also be powered by the optional Wouxun SPS31WIN Power Supply to turn your quad band mobile receiver into a fully operational quad band base station!
The Wouxun KG-UV980P comes with a handheld speaker microphone, inclined switchboard panel, flat switchboard panel, mobile mounting bracket, remote front panel bracket, mobile power cord, 15 foot extension cable, hand microphone hook, fuses, screw set, an owner's manual and a one year manufacturer warranty from Wouxun.
Note
Disassembly, hardware or software hacks may damage your radio or render it inoperable and will void the manufacturer warranty. Customers who attempt to modify, hack, reverse engineer or otherwise attempt to alter the KG-UV980P radio from its original specifications with the use of hardware or software hacks do so at their own risk. Optional Power Supply
Turn your Wouxun KG-UV980P mobile radio into a full-featured fixed base station with the Wouxun DWC30WIN Power Supply!
This 30A switching power supply has an output voltage of 13.8V DC and is adjustable between 9V and 15V! It offers automatic current limiting within 30A for protection from short-circuits and includes a large LCD display with digital meter for high visibility.
The KG-UV980P and DWC30WIN combo is a great option for those who want a powerful base station without the powerfully high cost!
Optional Programming Cable

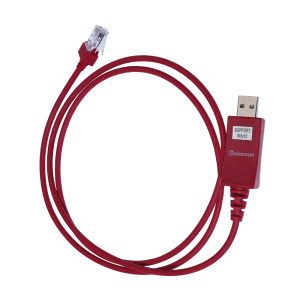

For your convenience, an optional USB programming cable (Model PCO-003) is available to program the Wouxun KG-UV980P from a computer.
NOTE: Programming software is available for download from the Downloads tab above.
Wouxun KG-UV980P Features
- 999 Memory Channels
- Quad Band
- 28-29.7MHz Frequencies (10m)
- 50-54MHz Frequencies (6m)
- 144-148MHz VHF Frequencies (2m)
- 430-450MHz UHF Frequencies (70cm)
- AM 108-136MHz (RX)
- Repeater Capable
- Duplex Cross-Band and Cross-Band Repeater
- 8 Group Scrambler
- 10W (6m and 10m)/40W (UHF)/50W (VHF) Maximum Transmit Power
- FM Radio
- Memory Channel
- Channel Scan
- Priority Scan
- Dual Watch
- Busy Channel Lockout
- Full Duplex Cross Band and Cross Band Repeater
- Companding
- CTCSS/DCS Encode/Decode
- CTCSS/DCS Tone Scan
- Large LCD Dual Display
- Backlit Keypad
- Selectable 3 Color LED
- Channel Name Edit and Display
- Battery Meter
- Minimum Operating Voltage Alarm
- Power Saver
- Auto Power Off
- Timeout Timer
- Keypad Lock
- Audible Button Beeps
- Voice Prompts

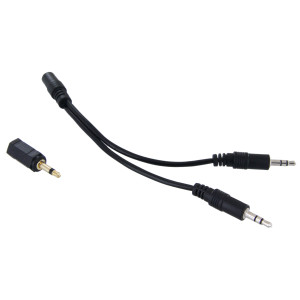

- Dual 3.5mm Speaker Ports
- Cloning Capable
- PC Programmable (Requires Optional Cable)
- Dual Speaker and Dual Output

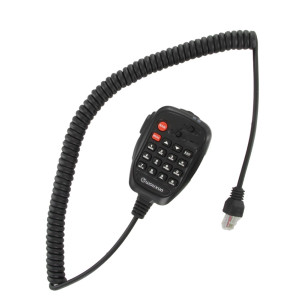

- Backlit DTMF Hand Microphone With Speaker
- Cooling Fan
- Remote Front Panel Installation Option
- DTMF Encoding and Decoding
- Stun and Kill Function
- Reset
- One Year Manufacturer Warranty
Included with the Wouxun KG-UV980P
- Wouxun KG-UV980P Quad Band Base/Mobile Two Way Radio
- Hand Microphone
- Inclined Switchboard Panel (Already Installed)
- Flat Switchboard Panel

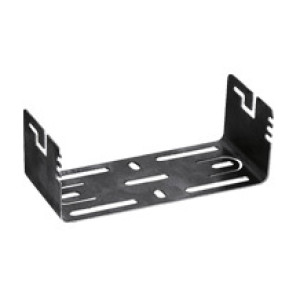

- Mobile Mounting Bracket
- Remote Front Panel Bracket
- Mobile Power Cord
- Extension Cable
- Screw Sets

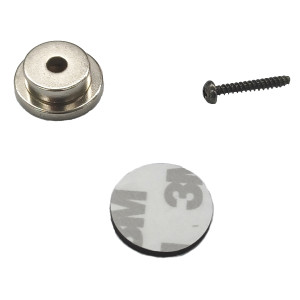

- Hand Microphone Hook
- 2 Fuses 15A 32V
- Owners Manual
Wouxun KG-UV980P Specifications
- Dimensions: 140mm × 44mm × 207mm
- Weight: 1437.8g (Including Microphone)
- Power Requirement: 13.8VDC+/- 15% (Negative Grounded)
- Antenna Connector Type: SO-239 (UHF Female)
