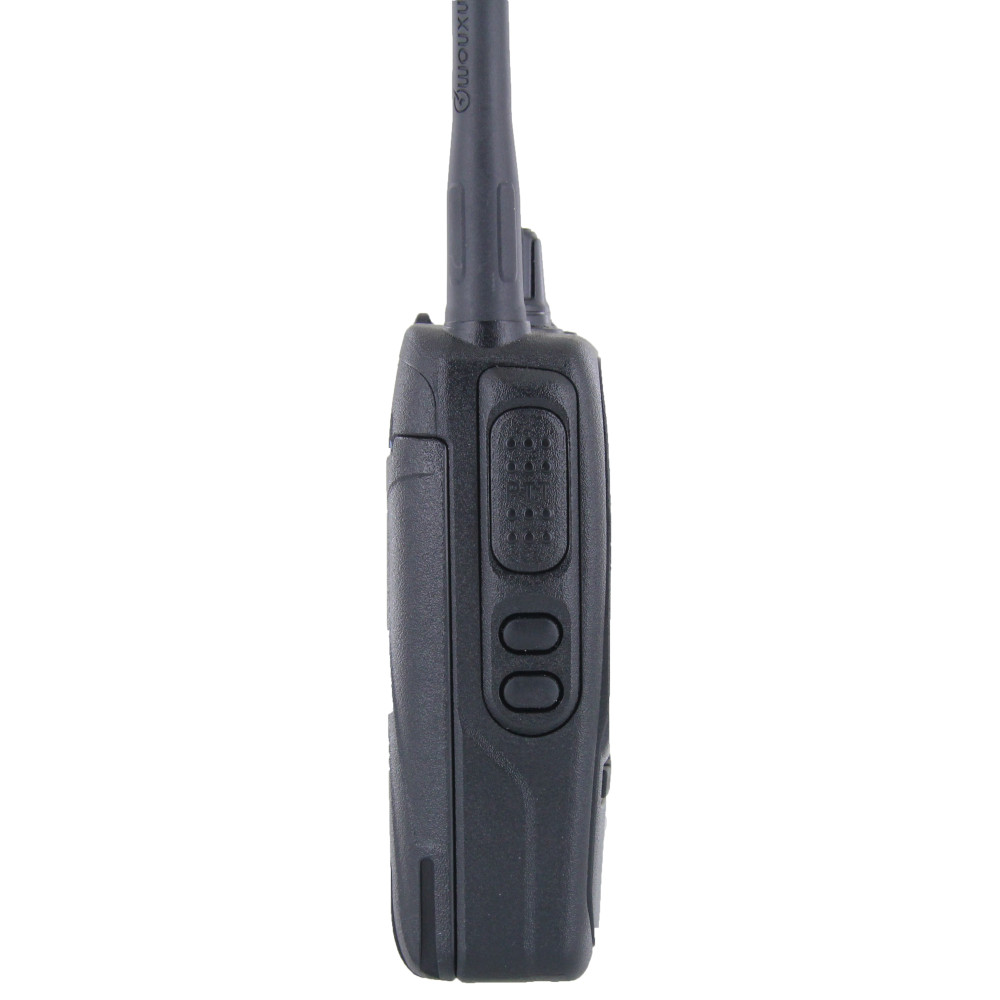

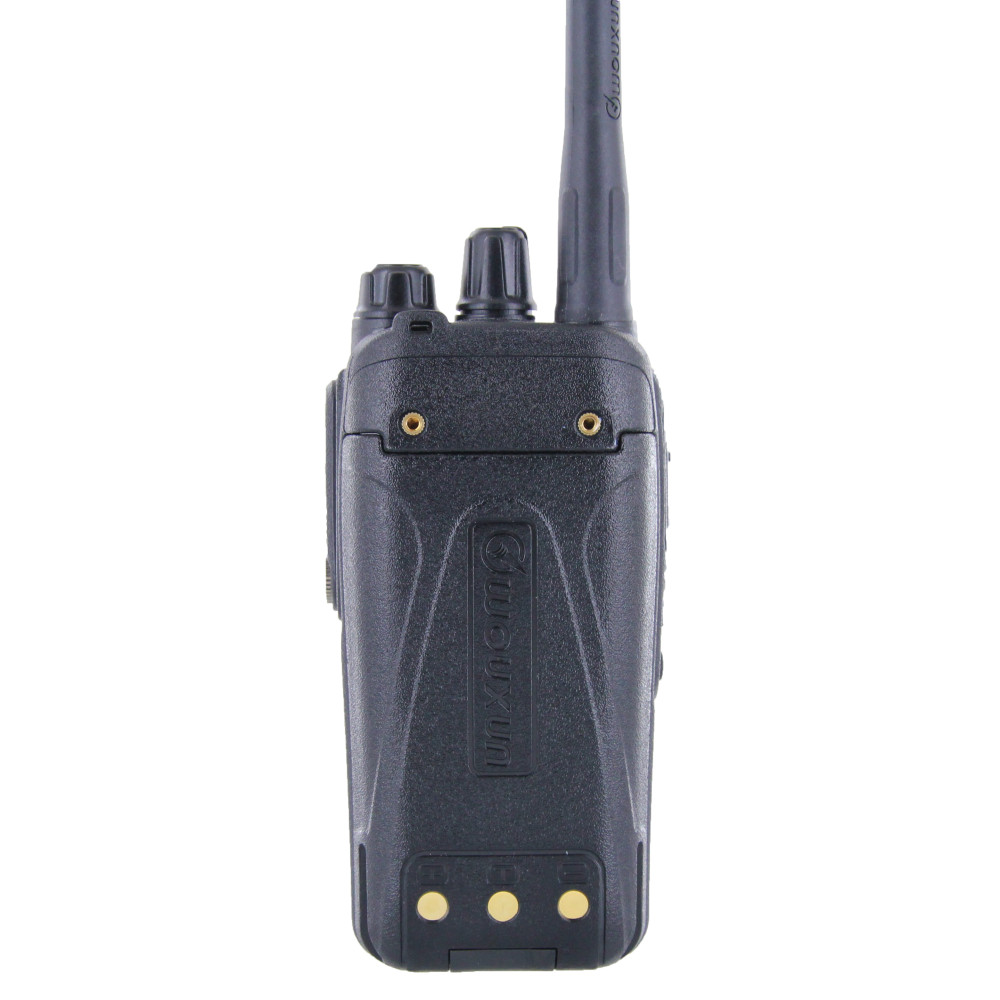

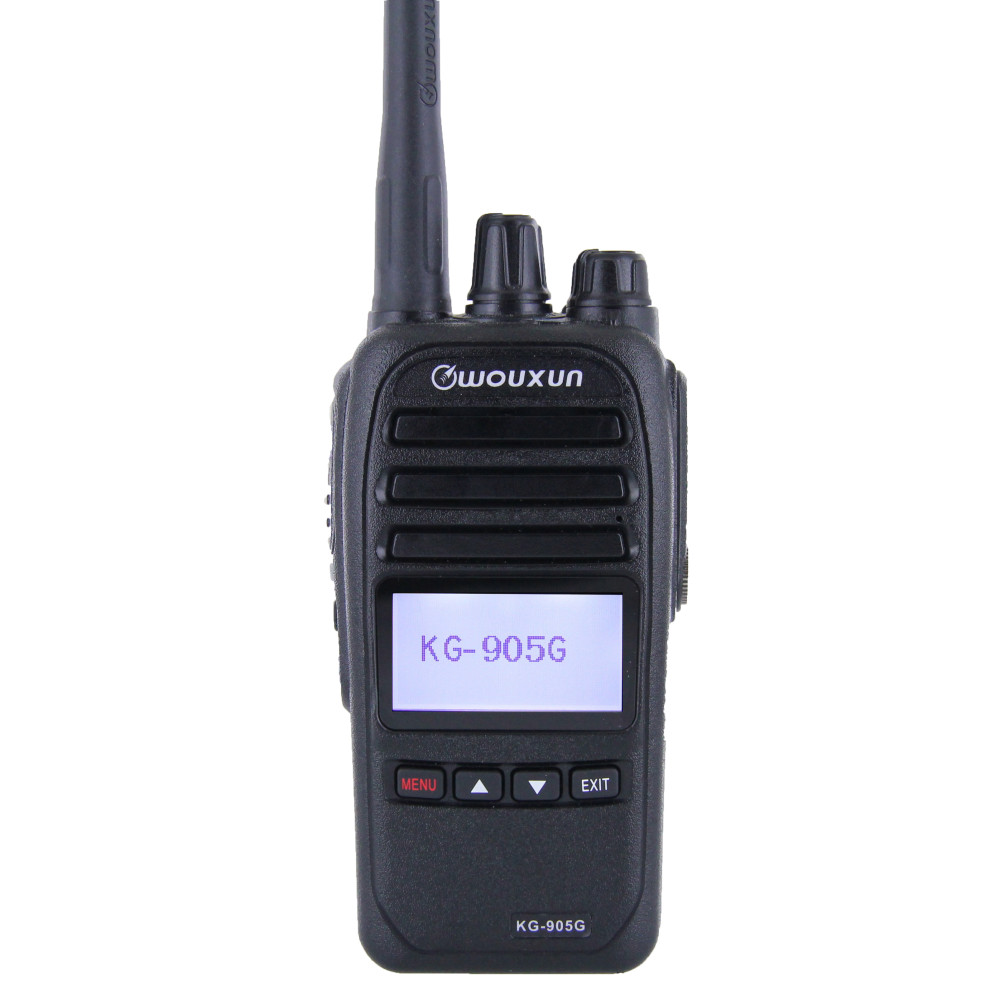

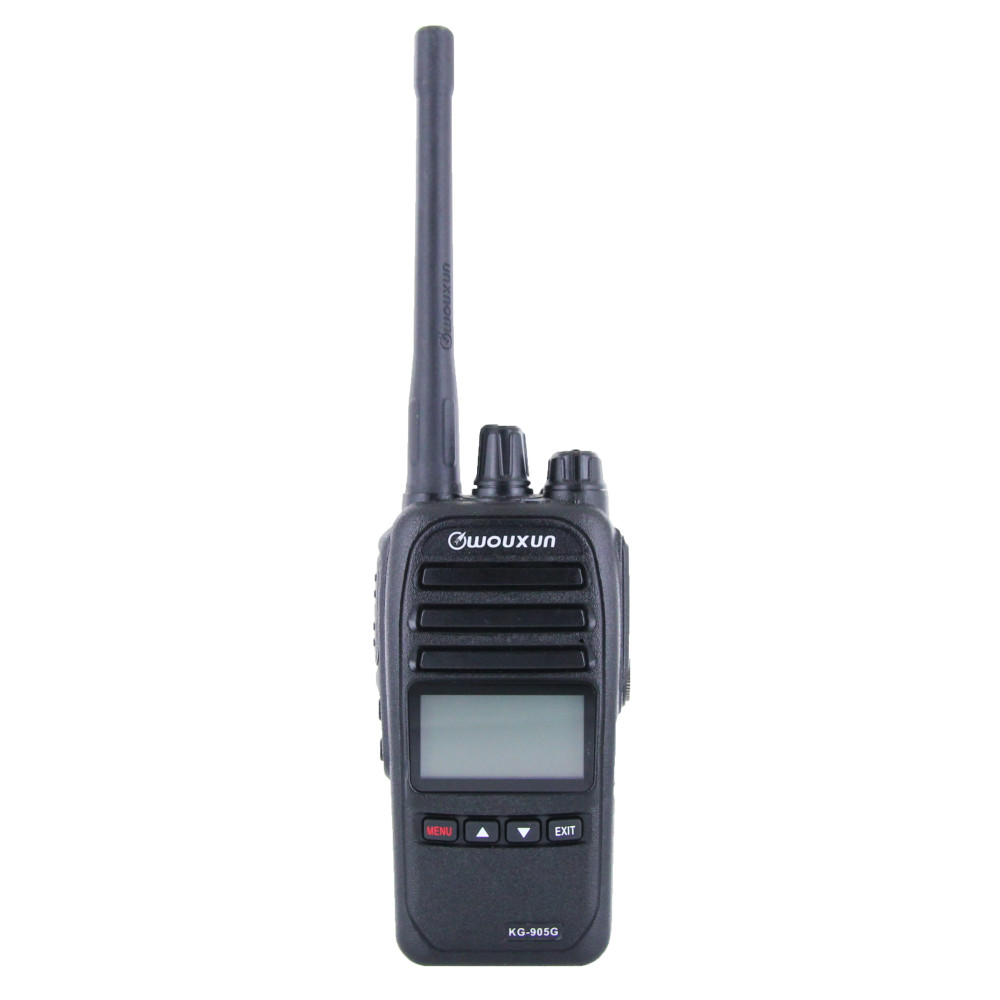

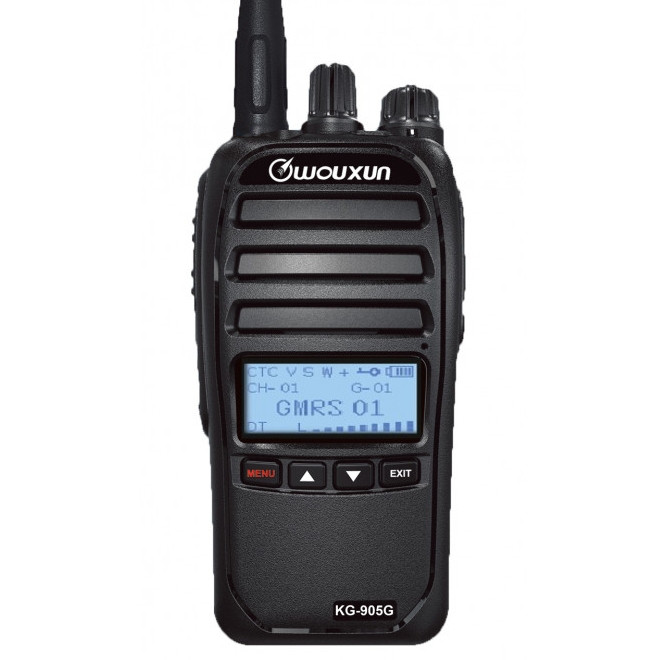

Features. Performance. Power. The Wouxun KG-905G takes the best for the GMRS and puts it right in the palm of your hand! Designed with the serious prosumer in mind, the KG-905G lets you take advantage of all that the GMRS has to offer and more. And you get it all right out of the box!
The KG-905G transmits on the 15 high powered GMRS simplex channels, 8 low powered simplex channels and all 8 GMRS repeater channels at up to 5 watts of power, with no special programming needed. It supports up to 256 custom channels and 16 channel groups, with 157 standard and non-standard CTCSS tones and DCS codes to eliminate unwanted interference. Want split tones? you've got them! CTCSS/DCS tone scan? You've got that too. The KG-905G makes it easy to find and configure tones and codes to match existing radios in your group.
Sure, there are the standard features of GMRS handheld transceivers, such as channel scan, timeout timer, roger beep, button beeps and VOX, but that's just to be expected. Where The KG-905G really outclasses the competition is in its more
advanced functionality.
Wouxun takes the KG-905G way beyond the bubble pack with features you won't find in typical consumer grade GMRS walkie talkies, such as Priority Channel Scan, Group Scan, Busy Channel Lockout, built-in voltage meter, selectable power, selectable wide and narrow bandwidth, English voice prompts, programmable function keys, and even a built-in stopwatch. The LCD text display is professional grade too, with easy to read icons, customizable channel names and a user selectable Power On message. Did we mention the battery comes with a USB-C charging port? It does!
But it isn't just functionality that sets the KG-905G apart from the rest of the pack. It's also durability. The KG 905G is rated IP66 for dust and water protection, which means it can take the harsh rigors of outdoor elements with ease! This transceiver has complete protection against contact with dust, and can take water projected from any direction in powerful jets from a 12.5mm nozzle. That's a fair amount of liquid force that few consumer grade radios can take. With that kind of protection from the elements, the KG-905G is ready for the outdoors.
Did we mention the KG-905G is also PC programmable? Well, it is! With an optional programming cable and the Wouxun programming software available in the Downloads tab above, you can customize it to fit your personal needs, to make it your very own.
Not to mention that the Wouxun KG-905G is FCC Part 95E type accepted for legal use on the GMRS, but we did anyway. Imagine, a portable handheld GMRS two way radio that's airworthy, customizable, ruggedly durable and FCC approved.
The GMRS was never like this!
The Wouxun KG-905G includes a 2600mAh rechargeable Li-Ion battery pack with USB-C charging port, belt clip, removable antenna, wrist strap, desktop charger, AC cord, owner's manual and a one year manufacturer warranty from Wouxun.
Wouxun KG-905G Series Questions and Answers
Yes. This radio is fully compatible with all 22 channel FRS, GMRS, or FRS/GMRS combo radios.
While this radio is easy to use and is compatible with other FRS and GMRS radios, it was designed with power users in mind. It is
more durable, is higher wattage, is equipped with a more powerful battery and has better audio quality than typical consumer radios. It is also IP66 dust and waterproof. Basically, it is built like a
business radio.
It also has advanced features that would usually appeal more to "power users," such as repeater support
and the ability to use PC programming software to customize the channels list.
Yes, if you use the programming software (available from the Downloads tab). The KG-905G supports up to 256 custom channels, and with the software you can add new channels or even remove standard ones. It also supports
channel groups. The CTCSS/DCS tones can be customized for each channel and can be different for transmit and receive.
Extra channels are useful for many reasons. If you access different repeaters that use the same frequency but different tones, it's more convenient to add each combination to its own channel instead of changing tones through the menu. Channels can also be given friendly names instead of a simple number, and the default channel names can be customized.
A
programming cable is required to customize the radio through the software. Check the Accessories tab above for options.
Wouxun currently offers two portable handheld GMRS radios, the
KG-805G and the
KG-905G. We carry both models.
The difference is the KG-805G costs less, has 128 custom channels, and is IP55 water resistant. The KG-905G has 256 custom channels, 16 channel groups, a larger improved display, CTCSS/DCS tone scan and is IP66 waterproof. Both radios are equipped with a superheterodyne receiver, 5 watts of power, and many advanced features. Overall, it's really a personal choice.
Yes. Even though this radio is fully compatible with license free FRS radios, it has several features that make it fall under
the GMRS service and not FRS. Some of these features are: 5 watts of power (FRS limit is 2), removable antenna (FRS must be fixed),
and repeater support (FRS doesn't support repeaters). Check out our
GMRS licensing FAQ page for more info.
Want a high quality radio that is compatible with the KG-905G and doesn't require a license? Check out the
Wouxun KG-805F FRS radio.
Lots of reasons! In short, we've been in the radio business for a long time (since 2002) and we do things the right way. Our staff is here to help
if you have a question or a problem. We stock these radios in our on-site warehouse, so if we tell you something will ship, then you can believe us.
Our competitors come and go, but many depend on distributors to ship for them and have no control over when your order leaves. We're an authorized
dealer for all of our brands, so you can be sure that your products will have their full warranty and not be counterfeit.
Wouxun Handheld GMRS Radio Feature Comparison
Wouxun Handheld GMRS Radio Feature Comparison |
Item | KG-805G | KG-905G | KG-S88G | KG-935G Plus |
Receiver Type | Superheterodyne | Superheterodyne | Superheterodyne | Direct Conversion |
Custom Channels | 128 | 256 | 400 | 999 |
Channel Groups | | ✔ | | |
Weather Channels | | | | ✔ |
400-470 MHz UHF Receive | ✔ | ✔ | ✔ | ✔ |
136-174 MHz VHF Receive | | | | ✔ |
FM Radio | ✔ | | | ✔ |
Full DTMF Keypad | | | ✔ | ✔ |
Display Type | Graphic LCD | Graphic LCD | Graphic LCD | Full Color/Multi Theme |
Dual Display Mode | | | | ✔ |
Battery Pack | 1700mAh | 2600mAh | 2000mAh | 2600mAh |
USB-C Charging Port | | ✔* | ✔ | ✔* |
Dust/Water Protection | IP55 | IP66 | IP67 (Submersible) | IP66 |
*USB-C charging port is located on the battery. Optional Programming Cable

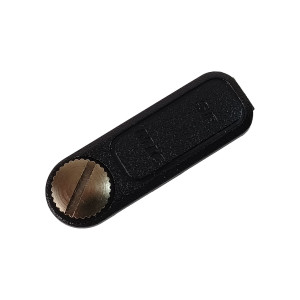

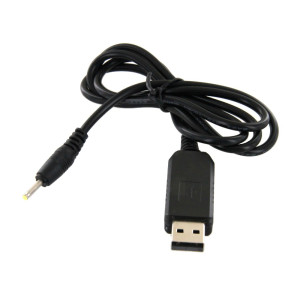

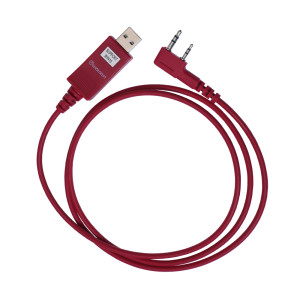

For your convenience, an optional USB programming cable is available to program the Wouxun KG-905G from a computer.
NOTE: Programming software is available for download from the Downloads tab above.
Wouxun KG-905G Features
- 22 GMRS Channels
- 8 GMRS Repeater Channels
- Up to 256 Custom Channels
- 16 Channel Groups
- Repeater Capable
- 5 Watts Transmit Power
- Superheterodyne Receiver
- 157 CTCSS/DCS Tones
- Split CTCSS/DCS Tone Support
- Li-Ion Battery Pack (2600mAh) With USB-C Charging Port
- Rechargeable Battery Included
- Battery Charger
- IP66 Waterproof
- PC Programming Support
- Transmit Overtime Alarm
- Timeout Timer
- Channel Scan
- Priority Channel Scan
- Group Scan
- Scan Add/Delete
- CTCSS/DCS Tone Scan
- Busy Channel Lockout
- Backlit Text Display
- Backlit Keys
- Battery Meter
- Voltage Meter
- Low Battery Alert
- Power Saver
- VOX
- Key Lock
- Programmable Function Keys
- Stopwatch Timer
- English Voice Prompts
- Audible Button Beeps
- Drop-In Charge Capable
- Audio Accessory Connector
- Factory Reset
- One Year Manufacturer Warranty
Included with the Wouxun KG-905G
- Wouxun KG-905G GMRS Two Way Radio

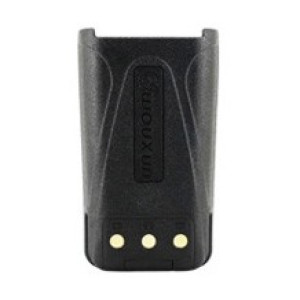

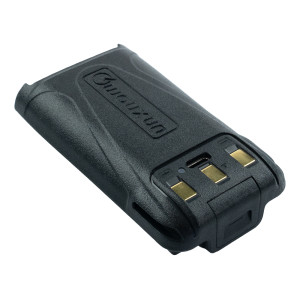

- 2600mAh Li-Ion Battery Pack with USB-C Charging Port

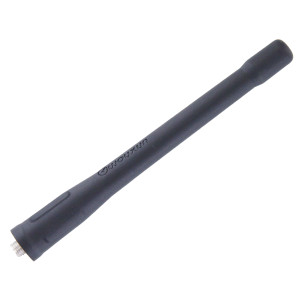

- Removable Antenna

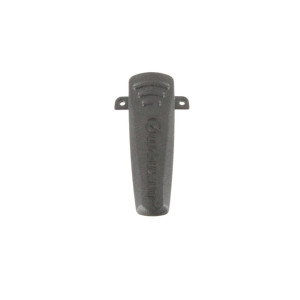

- Belt Clip
- Wrist Strap

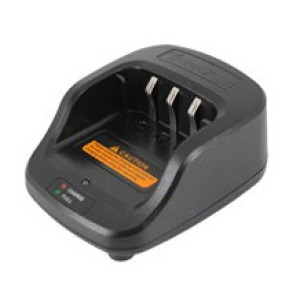

- Charger Tray
- AC Cable
- Owners Manual
Wouxun KG-905G Specifications

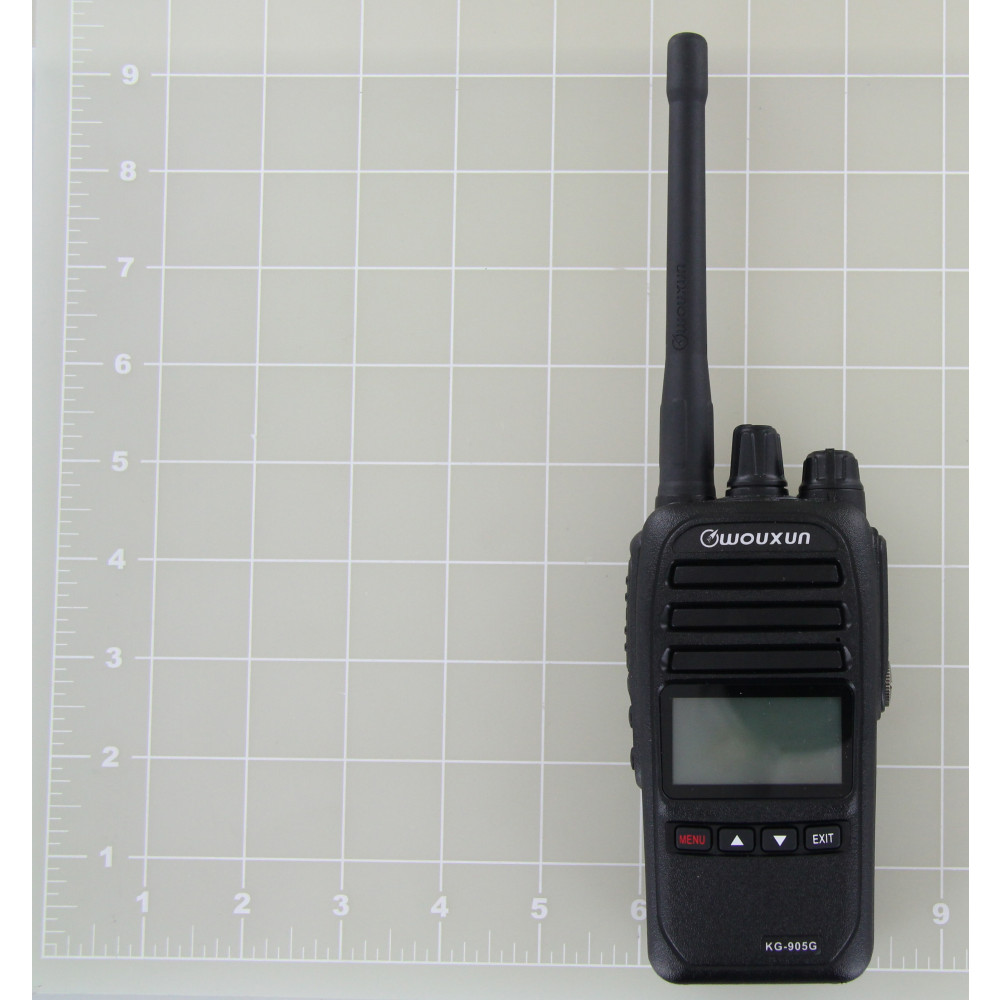

- Dimensions: 5.25 in. x 2.5 in. x1.5 in. (132mm × 62mm × 37mm
- Weight: 12 oz. (340g)

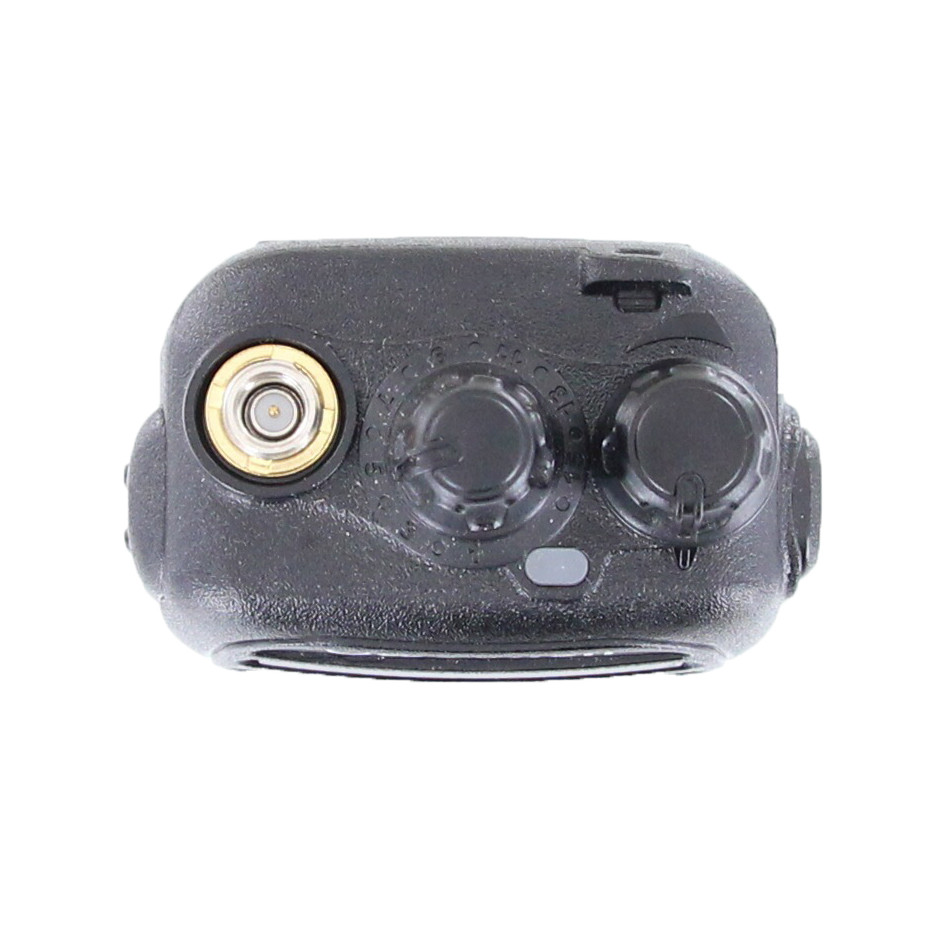

- Antenna connector type: SMA Male (Standard)
