Details
Stop using business or amateur radios for GMRS! The Wouxun KG-1000G Plus is FCC approved specifically for GMRS use, so it is completely legal! FCC ID: WVTWOUXUN20
The Wouxun KG-1000G Plus is
the mobile and base station radio that GMRS fans have been waiting for! With 30 GMRS channels and the ability to receive on multiple bands, this 50 watt powerhouse is full of functions and features that takes the GMRS experience beyond limited capabilities of the typical GMRS transceiver, and without an exorbitant price.
The KG-1000G Plus has 999 programmable memory channels with CTCSS and DCS encode/decode, 7 built-in NOAA weather channels, simultaneous reception, priority channel scanning, CTCSS/DCS scan, simultaneous dual mode operation, and an FM radio. You can select wide or narrow bandwidth (20KHz/12.5KHz) and select from four output power levels for optimal transmission. It also supports DTMF encoding/decoding.
But the Wouxun KG-1000G Plus isn't just a mobile two way radio, it's also capable of connecting to a second KG-1000G Plus to become full base or mobile repeater! Yes, that's right. You can connect
two KG-1000G Plus radios together using the short (SCO-001) or long (SCO-002) display connection cables included in the package
to create your own working repeater! Now
that's a Plus!
And that's not all. The KG-1000G Plus has dual speakers with multiple speaker channel settings,

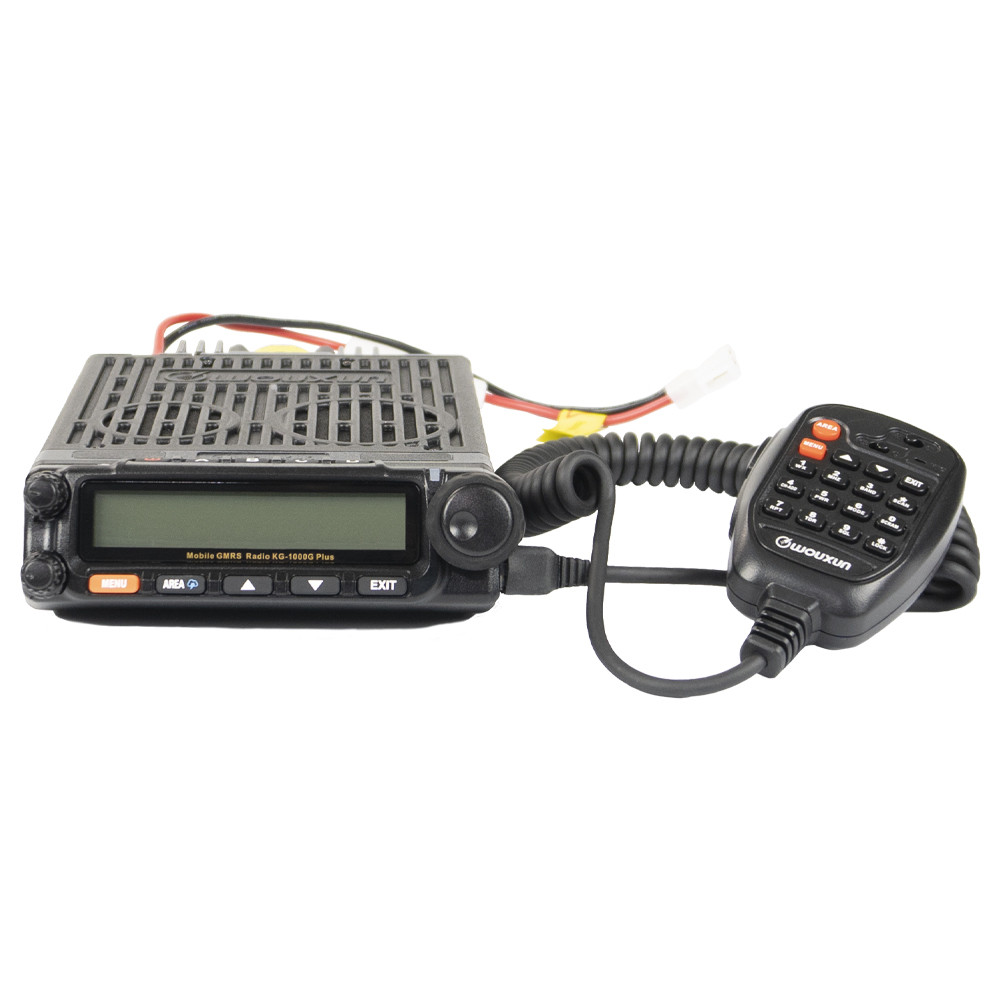

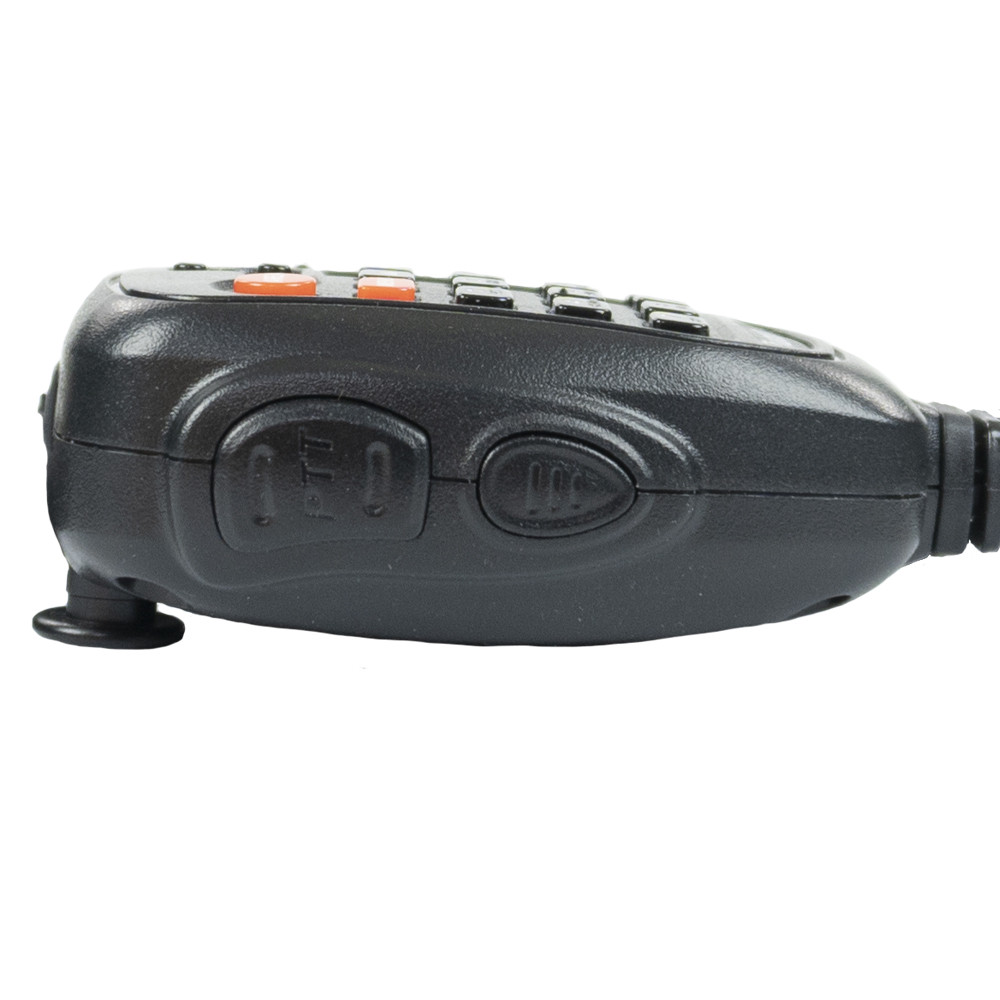

plus a speaker built into the DTMF hand microphone. That's
three total speakers!

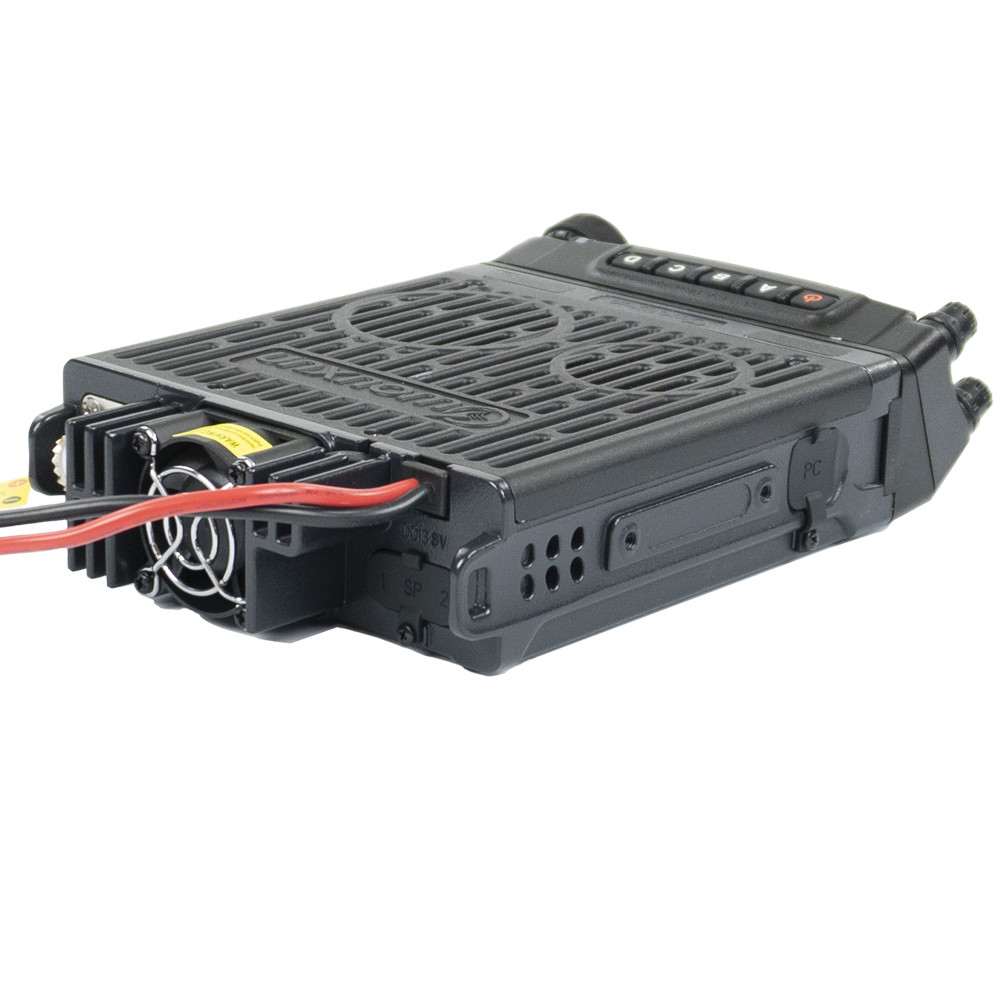

All the standard features of a Wouxun mobile/base station are there too, such as the 1750Hz burst tone, Channel Name edit and display, group calls, 8 group descrambler, power management, stun and kill function, external speaker support, 4 configurable front panel buttons and a built-in cooling fan with adjustable cooling control. All extras, and for no extra fee.

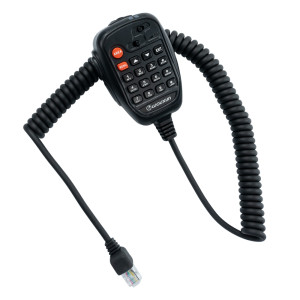

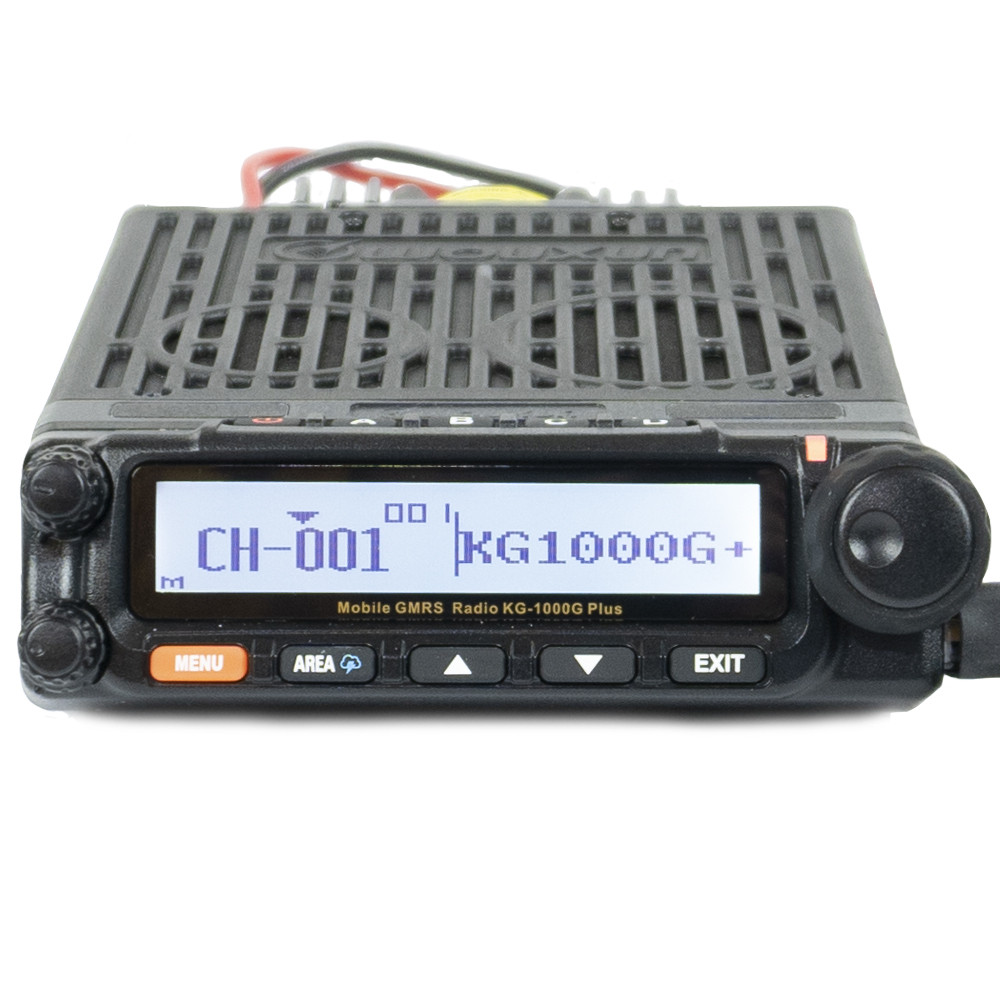

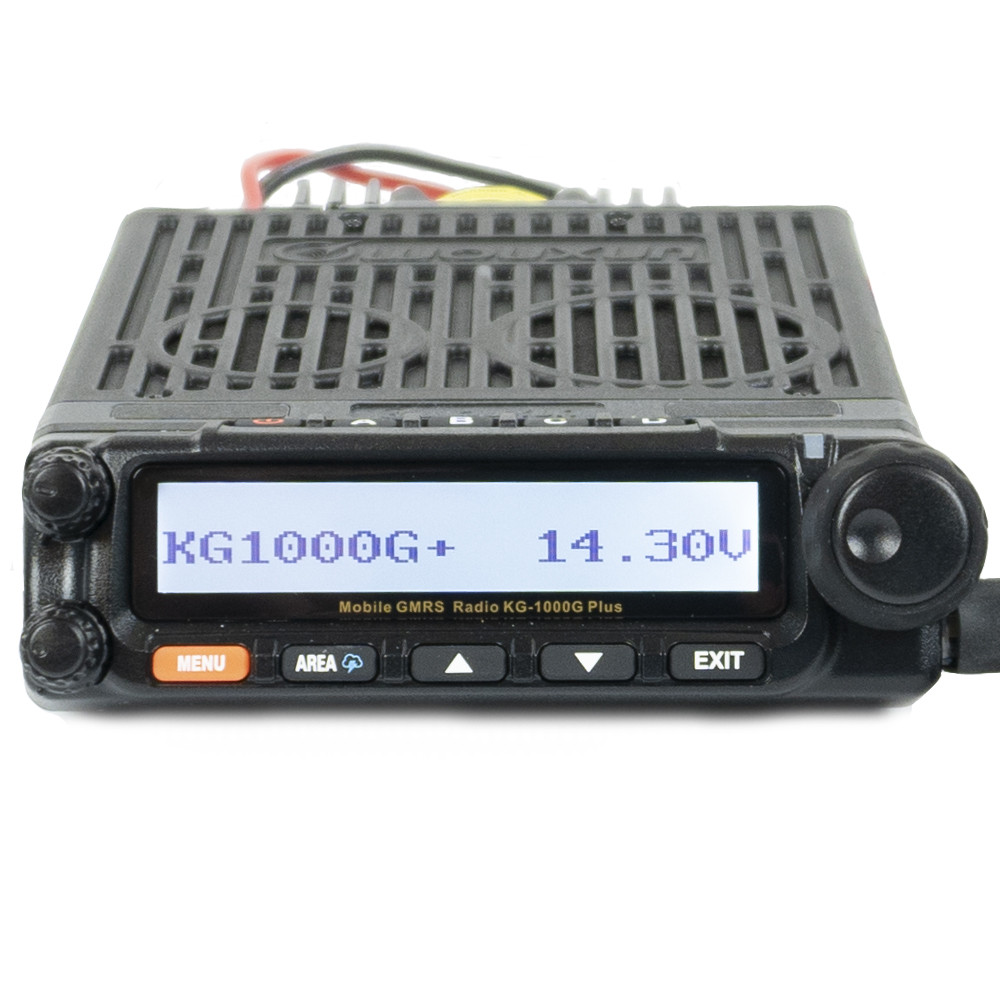

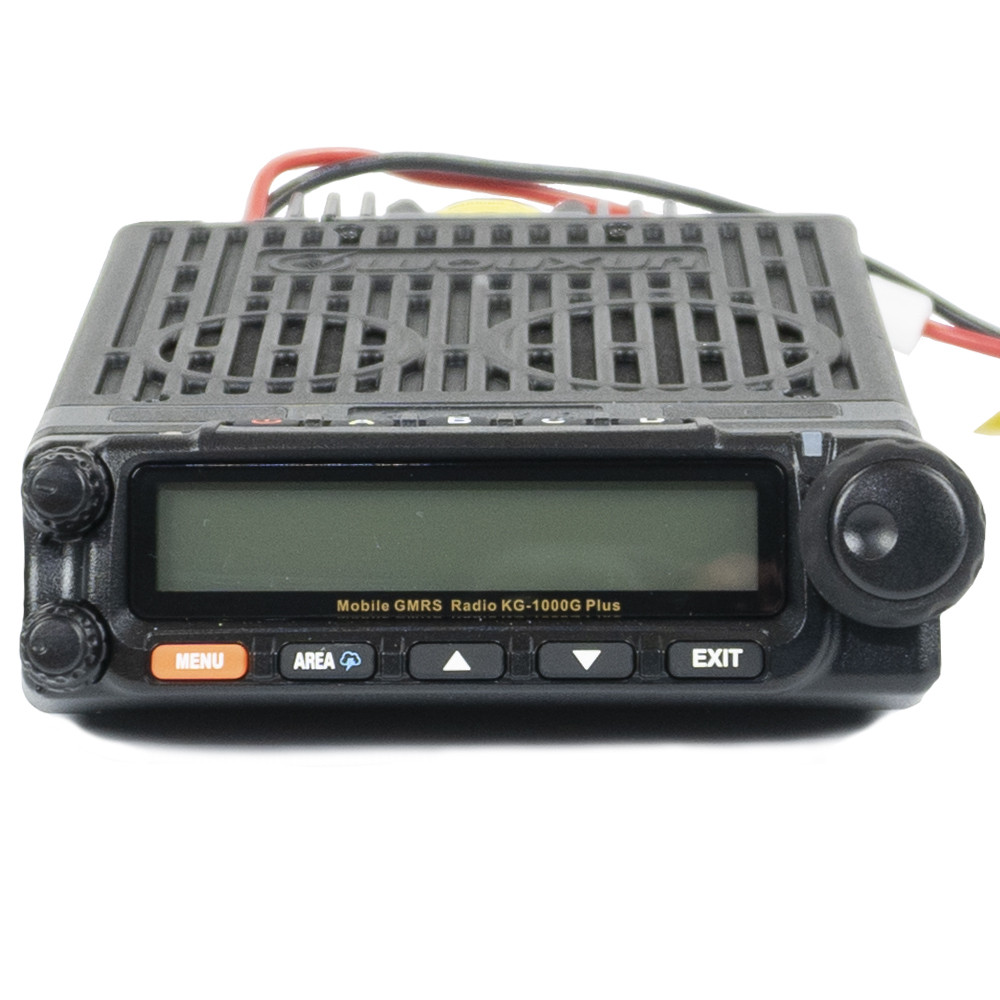

A large, dual frequency LCD display is part of the KG-1000G Plus as well. The backlit buttons on the front panel help you see them in the dark. The full featured keypad on the handheld speaker mic is also backlit and voice prompts assist you with menu navigation.

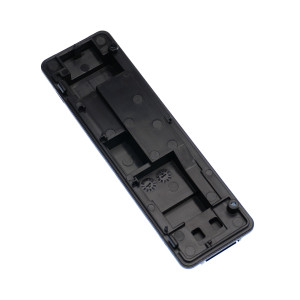

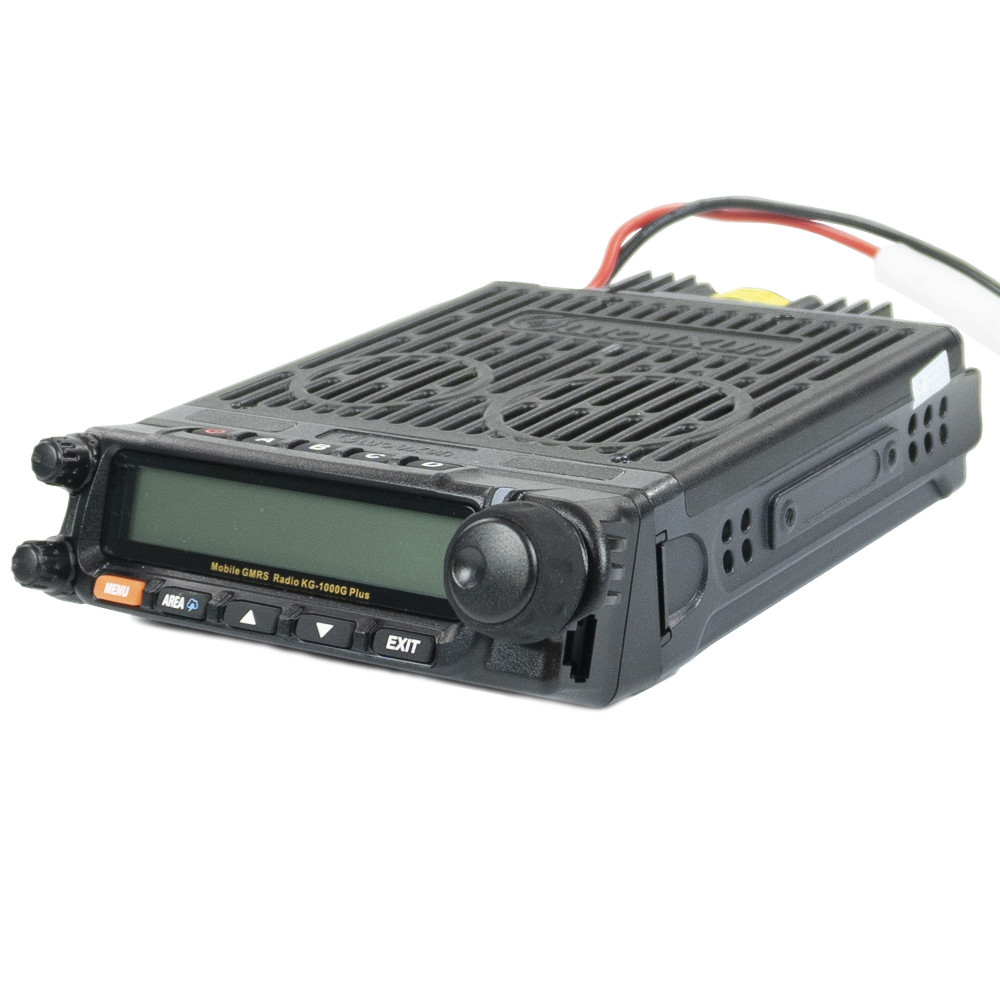

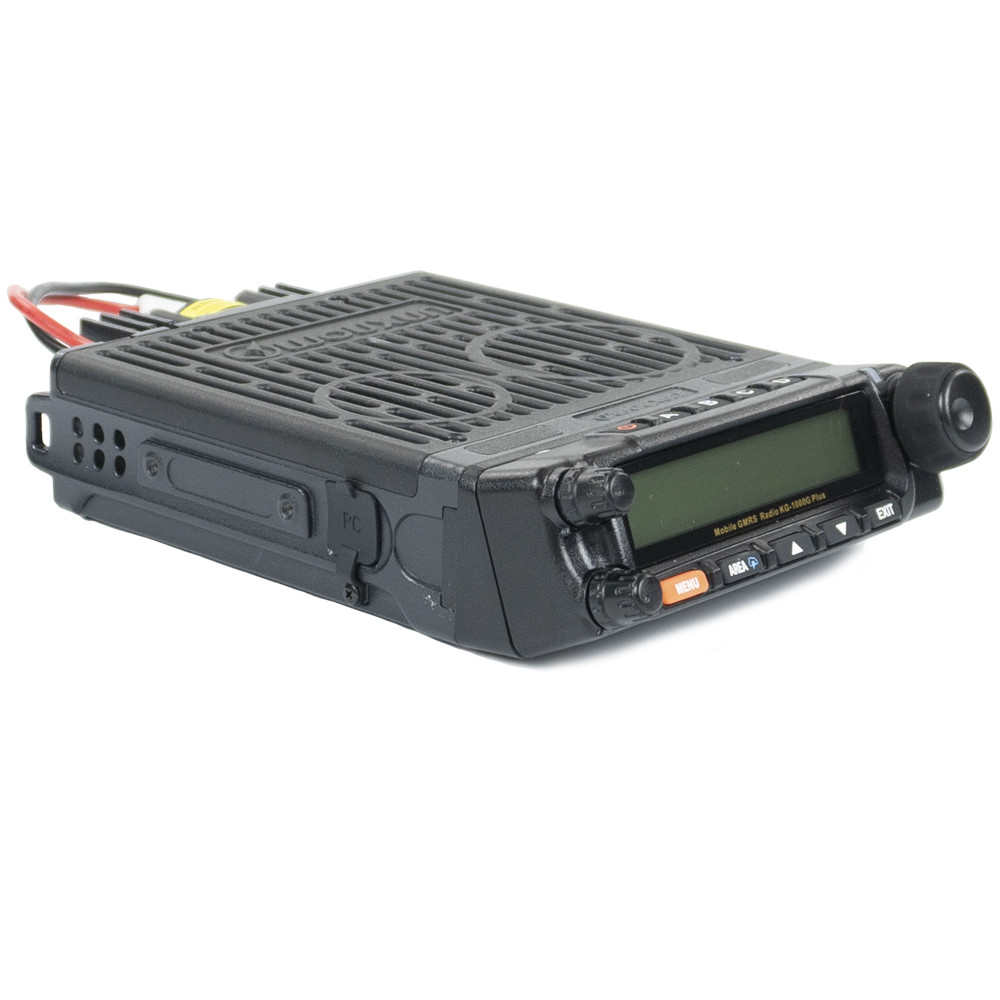

The front panel is also customizable! The KG-1000G Plus includes two kinds of switchboard panels to fit your installation. Choose from an upward facing inclined panel or a flat panel for installation in your vehicle. The front panel as detachable and can be relocated separately from the radio chassis. The included 15 foot extension cable allows you to install it just about anywhere in your vehicle so you can have it right where you need it.
The KG-1000G Plus can also be powered by the optional Wouxun SPS31WIN Power Supply to turn your GMRS mobile receiver into a fully operational GMRS base station!
The Wouxun KG-1000G Plus comes with a handheld speaker microphone, inclined switchboard panel, flat switchboard panel, mobile mounting bracket, remote front panel bracket, mobile power cord, 15 foot extension cable, hand microphone hook, fuses, screw set, an easy to understand owner's manual in plain English and a one year manufacturer warranty from Wouxun.
Optional Power Supply
Turn your Wouxun KG-1000G Plus mobile radio into a full-featured fixed base station with the Wouxun DWC30WIN Power Supply!
This 30A switching power supply has an output voltage of 13.8V DC and is adjustable between 9V and 15V! It offers automatic current limiting within 30A for protection from short-circuits and includes a large LCD display with digital meter for high visibility.
The KG-1000G Plus and DWC30WIN combo is a great option for those who want a powerful base station without the powerfully high cost!
Optional Programming Cable

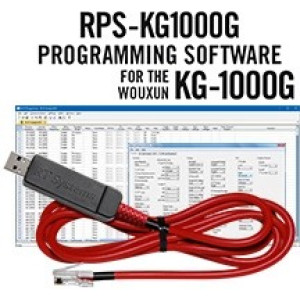

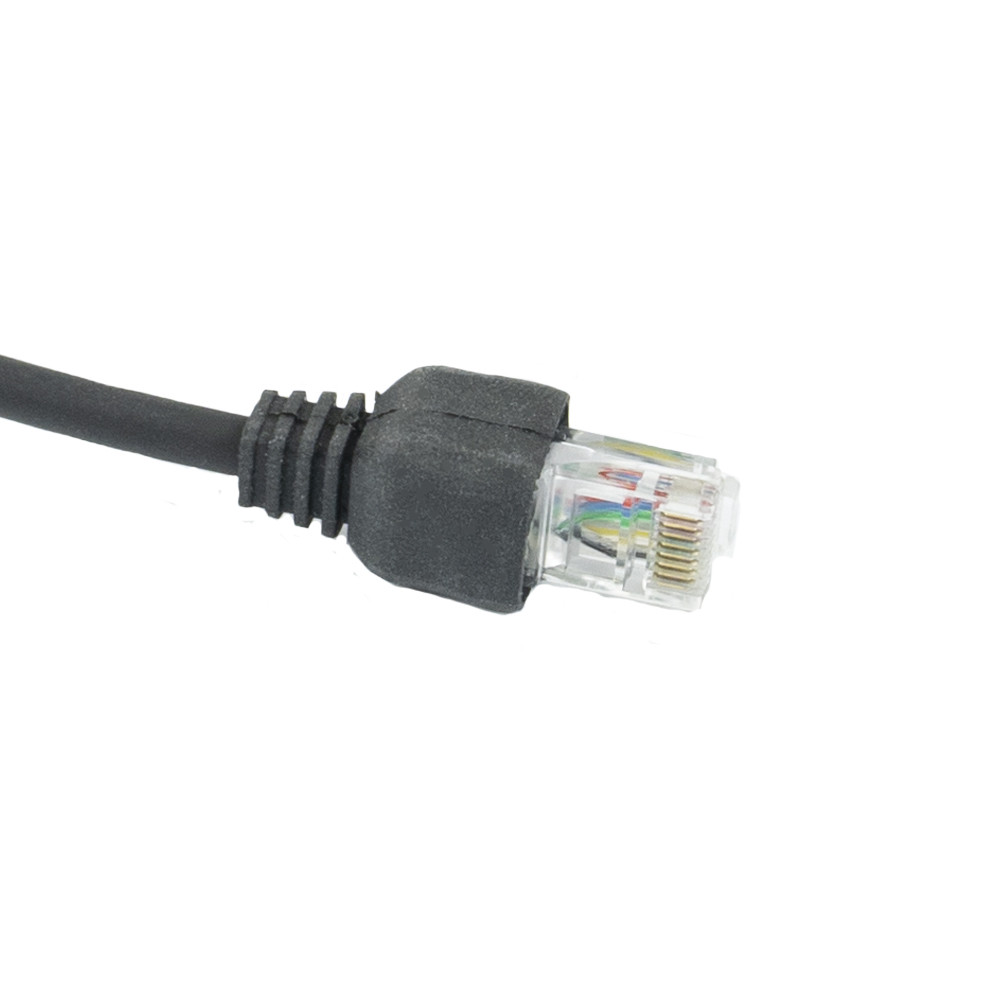

For your convenience, an optional USB programming cable (Model PCO-003) is available to program the Wouxun KG-1000G Plus from a computer.
NOTE: Programming software is available for download from the Downloads tab above.
Wouxun KG-1000G Series Questions and Answers
Yes. This radio is fully compatible with all 22 channel FRS, GMRS, or FRS/GMRS combo radios.
Yes! The KG-1000G Plus is FCC Part 95E type accepted for legal use on the GMRS. It is also Part 15B type accepted as a scanning receiver. The FCC ID is WVTWOUXUN20.
While this radio is compatible with other FRS/GMRS radios, this is not a consumer grade radio. It was designed with power users in mind. It has many advanced features that would usually appeal more to the avid GMRS operators, such as repeater support and the ability to use PC programming software to customize the channels list. When connected to a second KG-1000G Plus, it can even be converted into a GMRS repeater! You won't find this feature on other GMRS type accepted mobile radios.
Yes, if you use the programming software (available from the Downloads tab). The KG-1000G Plus supports up to 999 programmable channels, and with the software you can add new channels or even remove standard ones. The CTCSS/DCS tones can be customized for each channel and can be different for transmit and receive.
Extra channels are useful for many reasons. If you access different repeaters that use the same frequency but different tones, it's more convenient to add each combination to it's own channel instead of changing tones through the menu. Channels can also be given friendly names instead of a simple number, and the default channel names can be customized.
A
programming cable is required to customize the radio through the software. Check the Accessories tab above for options.
Absolutely! It also supports both standard and non-standard CTCSS/DCS, plus it has the ability to scan for tones and codes.
Yes. Even though this radio can communicate with license free FRS radios, it has several features that make it fall under
the GMRS service and not FRS. Some of these features are: Up to 50 watts of power (FRS limit is 2), removable antenna (FRS must be fixed),
and repeater support (FRS doesn't support repeaters). Check out our
GMRS licensing FAQ page for more info.
Lots of reasons! In short, we've been in the radio business for a long time (since 2002) and we do things the right way. Our staff is here to help
if you have a question or a problem. We stock these radio in our on-site warehouse, so if we tell you something will ship then you can believe us.
Our competitors come and go, but many depend on distributors to ship for them and have no control over when your order leaves. We're an authorized
dealer for all of our brands, including Wouxun, so you can be sure that your products will have their full warranty and not be counterfeit.
Wouxun KG-1000G Plus Features
- 30 GMRS Channels
- 8 Built-In GMRS Repeater Channels
- 999 Custom Memory Channels
- 50-53.995 MHz Receive Only Frequencies (6m)
- 108-179.995 MHz Receive Only VHF Frequencies
- 320-349.995 MHz Receive Only Frequencies
- 400-479.995 MHz Receive Only UHF Frequencies (70cm)
- 700-985 MHz Receive Only Frequencies
- AM 108-136MHz (RX)
- Built-in NOAA Weather Channels
- Repeater Capable
- Tune Specific Frequencies Directly (Frequency Mode)
- 8 Group Descrambler
- 50W Maximum Transmit Power
- FM Radio
- 4 TX Power Levels
- Channel Scan
- Priority Scan
- Supports 10 Scan Groups
- Simultaneous Scanning on A/B Areas
- CTCSS/DCS Tone Scan
- Wide/Narrow Bandwidth Selectable
- Busy Channel Lockout
- Repeater Mode (Requires 2nd Unit)
- Companding
- Standard and Non-Standard CTCSS/DCS
- Split CTCSS/DCS Tone Support
- Large LCD Dual Frequency Display
- Three Color Selectable LED
- Backlit Keypad
- Channel Name Edit and Display
- Battery Meter
- Minimum Operating Voltage Settings
- Adjustable Cooling Fan Control
- Automatic Temperature Testing
- Power Management
- Timeout Timer
- Keypad Lock
- Audible Button Beeps
- English Voice Prompts

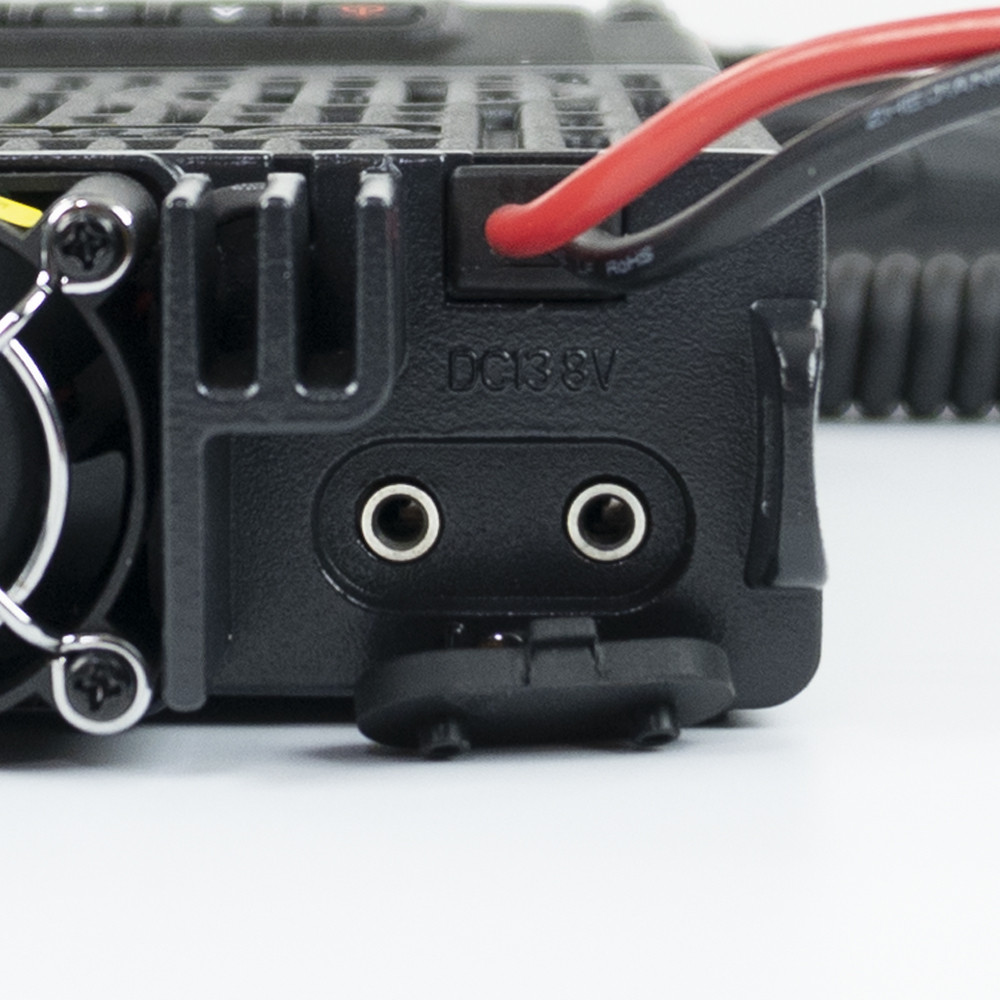

- Dual 3.5mm External Speaker Ports
- Offset Frequency Programmable
- Receive AM Transmissions
- Auto-Detect AM Transmissions
- Group Call, All Call and Selective Call
- Incoming Caller ID Display
- PC Programmable (Requires Optional Cable)
- Dual Speakers
- Multiple Speaker Output Settings

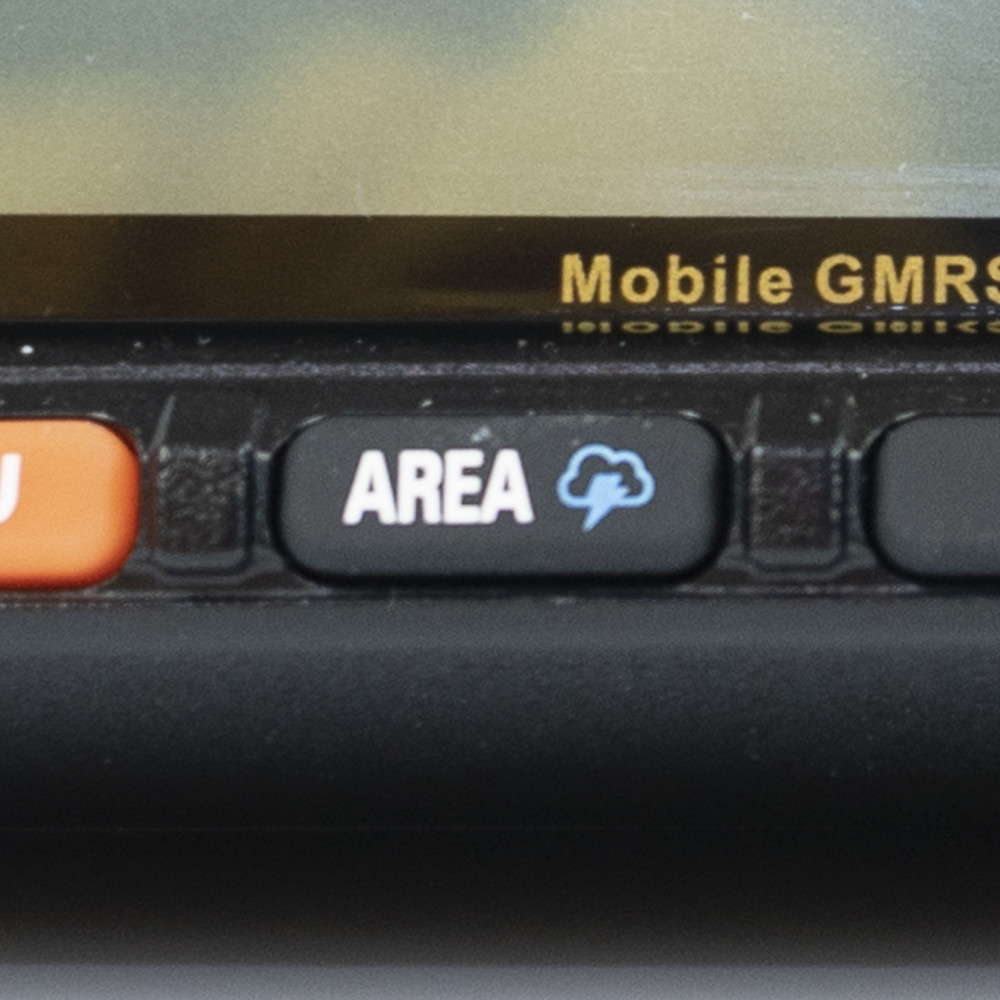

- 4 Configurable Front Panel Buttons
- Backlit DTMF Hand Microphone With Speaker
- Cooling Fan
- Remote Front Panel Installation Option
- DTMF Encoding and Decoding
- Stun and Kill Function
- Reset
- One Year Manufacturer Warranty
Included with the Wouxun KG-1000G Plus
- Wouxun KG-1000G Plus GMRS Base/Mobile Two Way Radio
- Hand Microphone (KG-UV10A)

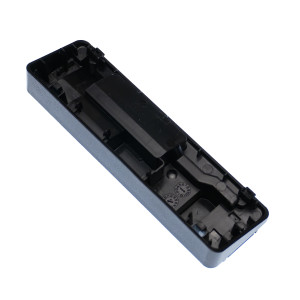

- Inclined Switchboard Panel (Already Installed)
- Flat Switchboard Panel
- Mobile Mounting Bracket
- Remote Front Panel Bracket
- Mobile Power Cord
- Remote Display 15 ft. Extension / Repeater Mode Cable (SMO-002)
- Display Connection / Repeater Mode Cable (3 inch / SMO-001)
- Screw Sets
- Hand Microphone Hook
- 2 Fuses 15A 32V
- Owners Manual
Wouxun KG-1000G Plus Specifications
- Dimensions: 5.51 in. x 1.73in. x 8.14 in. (140mm × 44mm × 207mm)
- Weight (Including Microphone): 3.16 lbs. (1437.8g)
- Power Requirement: 13.8VDC+/- 15% (Negative Grounded)

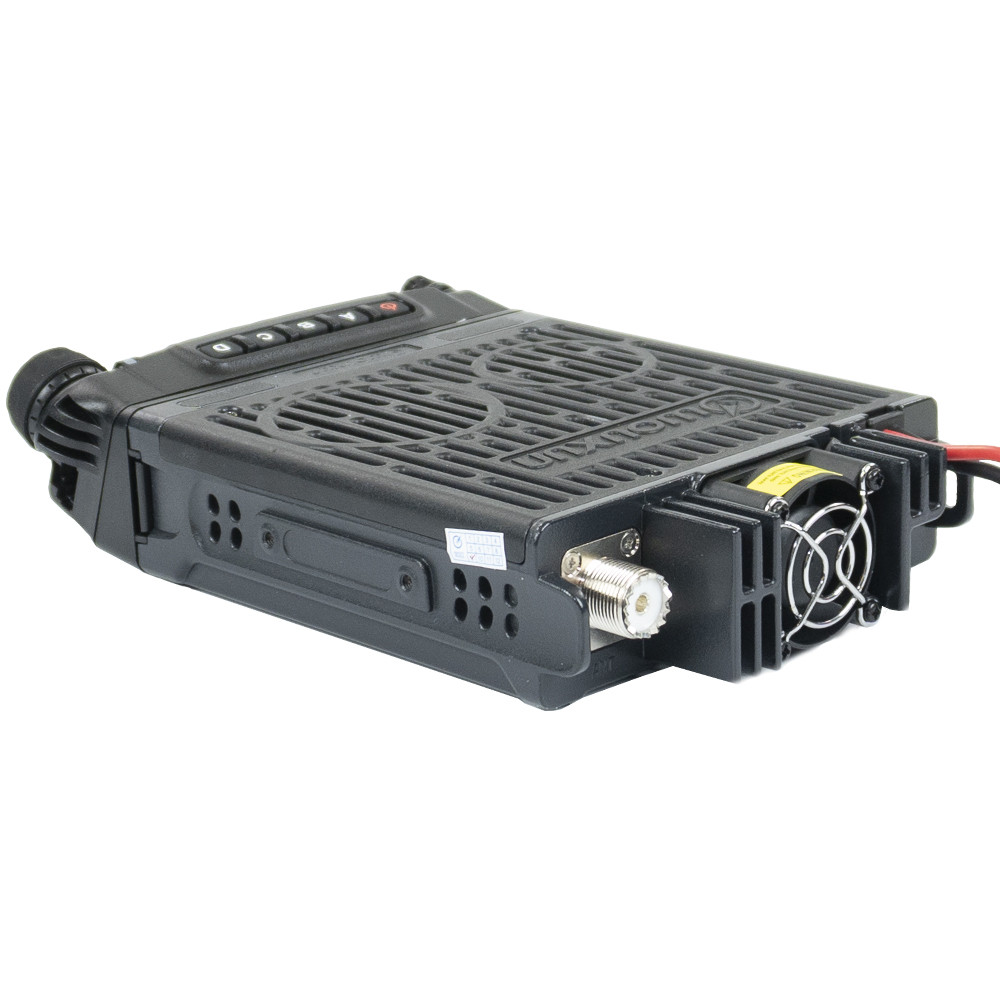

- Antenna Connector Type: SO-239 (UHF Female)
