Details
This radio has been approved by the FCC. Type accepted for Part 15B, FCC ID PODTH9800 PLUS UPGRADE VERSION!!
Why settle for two bands when you can have four? With the TYT TH-9800 Plus Quad Band UHF/VHF mobile two way radio, now you can! The TH-9800 is a powerful transceiver with the high end features you expect from a TYT mobile at a low end price. It covers 26-33 MHz, 47-54 MHz and 144-148MHz with 50 watts on VHF and 420-450MHz with 40 watts on UHF, to provide maximum power for mobile communications at a minimal cost.
The TH-9800 Plus gives you V/V, U/U and V/U simultaneous receive. It is also a V+U cross-band mobile repeater with full duplex capability. It has 800 memory channels with independent settings for each channel, user defined CTCSS and DCS codes, and 8 group voice scrambler. It also features a built-in fan to keep things cool while in operation.
The TH-9800 is loaded with extras, such as Automatic Repeater Shift (ARS), programmable memory scan, tone search scan, and DTMF signaling. It also includes Auto Range Transponder System (ARTS), a feature usually found on many Vertex Standard business radios.

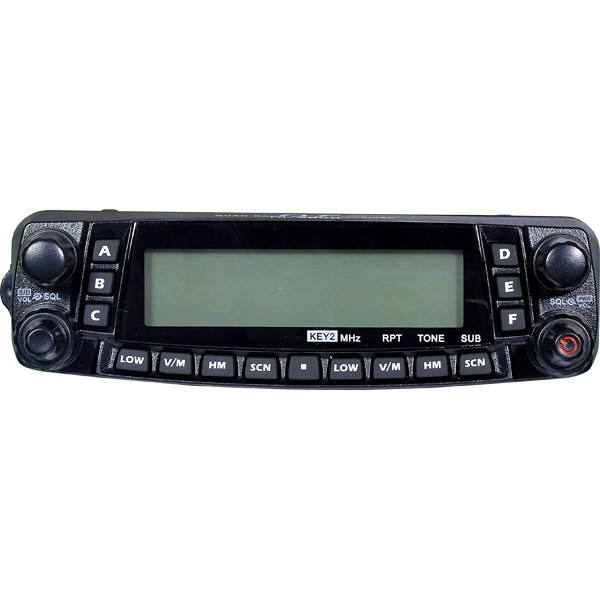

TYT also equipped the TH-9800 with the large, dual frequency LCD display found on many of their other mobiles, plus a full featured backlit DTMF keypad on the handheld microphone. The front panel is detachable and can be relocated separately from the radio chassis. The included extension cable allows you to install it just about anywhere in your vehicle so you can have it right where you need it.
The TYT TH-9800 Plus comes with hand microphone, detachable front panel, mobile mounting bracket, mobile power cord, extension cable, hand microphone hook, fuses, screw packs, an owner's manual and a one year manufacturer warranty from TYT.
Optional Programming Cable

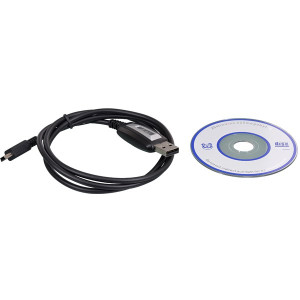

For your convenience, an optional USB programming cable (Model TYT-PROG-MBL) is available to program the TYT TH-9800 from a computer.
NOTE: Programming software is available for download from the Downloads tab above.
TYT TH-9800 Features
- 809 Memory Channels
- Quad Band
- 144-148MHz VHF Frequencies
- 420-450MHz UHF Frequencies
- 26-33 MHz/47-54 MHz / AM 108-136MHz (RX)
- Repeater Capable
- Cross-Band Repeater Function
- 8 Group Voice Scrambler
- 40W (UHF)/50W (VHF) Transmit Power
- Power Selectable
- Memory Channel
- Channel Scan
- Priority Scan
- Skip Channel
- Dual Watch
- Busy Channel Lockout
- Talk Around
- V+U Full Duplex Operation and Cross Band Repeat Function
- Automatic Repeater Shift (ARS)
- Companding
- CTCSS/DCS Encode/Decode
- CTCSS/DCS Tone Scan
- Backlit LCD Display
- Backlit Keypad
- Channel Name Edit and Display
- Auto Power Off
- Timeout Timer
- Keypad Lock
- Audible Button Beeps
- 3.5mm Speaker Port
- Cloning Capable
- PC Programmable (Requires Optional Cable)
- Programmable Buttons
- Internal Speaker
- Backlit DTMF Hand Microphone
- Cooling Fan
- Remote Front Panel Installation Option
- DTMF Encoding and Decoding
- Reset
- One Year Manufacturer Warranty
Included with the TYT TH-9800

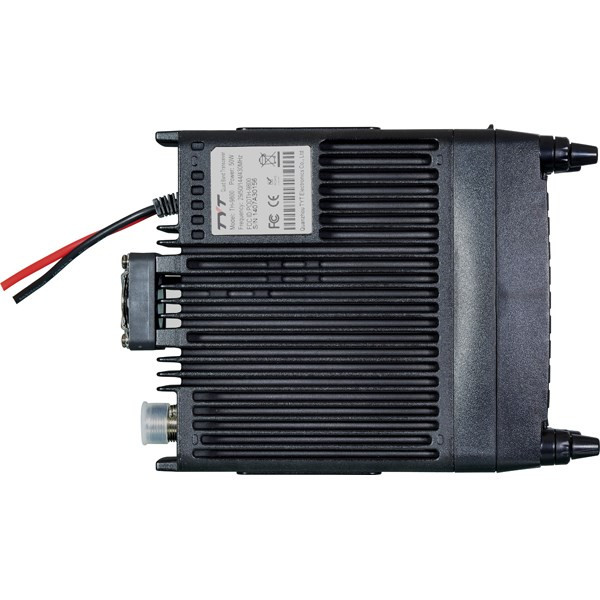

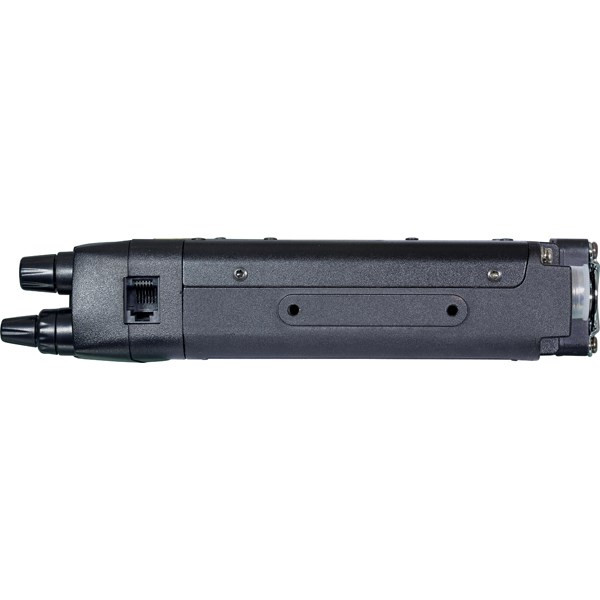

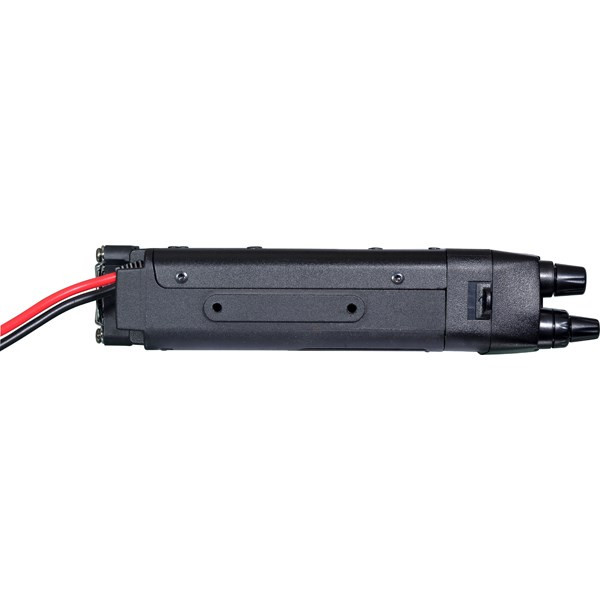

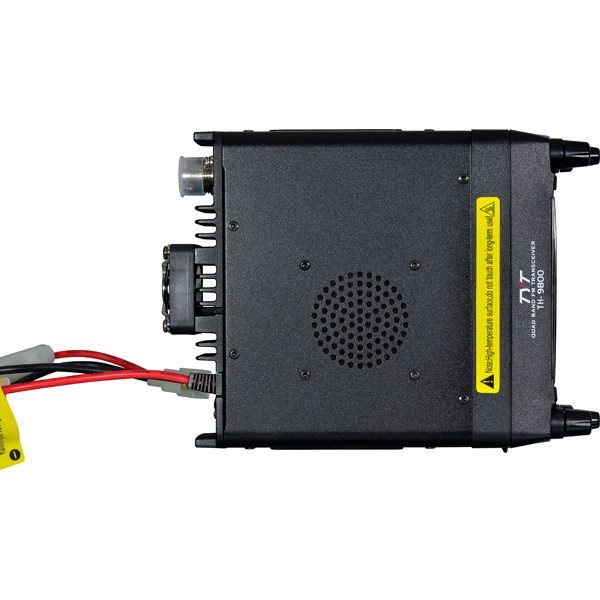

- TYT TH-9800 Quad Band Mobile Two Way Radio

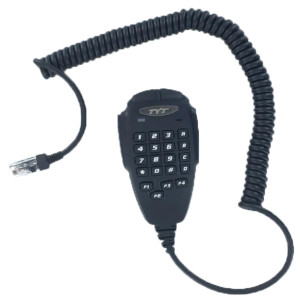

- DTMF Hand Microphone

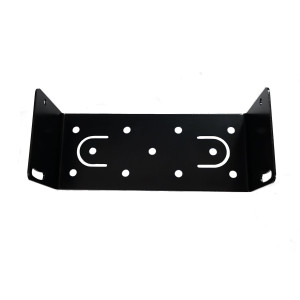

- Mobile Mounting Bracket
- DC Power Cable With Fuse Holder

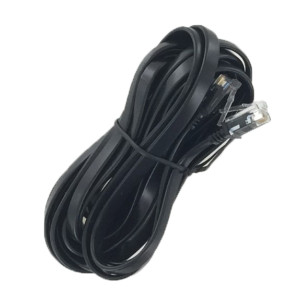

- Front Controller Separation Cable
- Front Controller Mounting Bracket

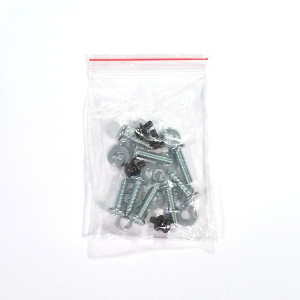

- Screw Packs
- Protection Fuses

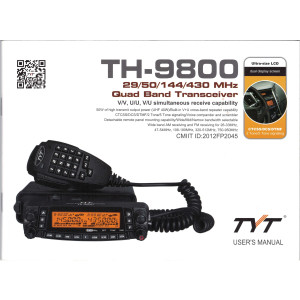

- Owners Manual
TYT TH-9800 Specifications
- Dimensions: 140mm (W) × 41.5mm (H) × 168mm (D)
- Weight: 1.2 Kg
- Antenna Connector Type: SO-239 (UHF Female)
