Tram RG-8X Double Shield Coaxial Cable Custom Length (per foot)

100 3 100 0

3 Review(s) | Add Your Review

Quick Overview

Availability: In stock

From: $0.59

To: $34.57

Price as configured: $0.00

Email to a Friend

Cable Length (Enter number of feet needed)*

Tram RG-8X Double Shield Coaxial Cable Custom Length (per foot) +$0.59

Buy 12 for $0.58 each and save 2%
Buy 18 for $0.58 each and save 2%
Buy 24 for $0.58 each and save 2%
Buy 30 for $0.57 each and save 4%
Buy 40 for $0.57 each and save 4%
Buy 50 for $0.56 each and save 6%
Buy 60 for $0.56 each and save 6%
Buy 70 for $0.55 each and save 7%
Buy 80 for $0.55 each and save 7%
Buy 90 for $0.54 each and save 9%
Buy 100 for $0.54 each and save 9%
Buy 200 for $0.49 each and save 17%
Buy 300 for $0.44 each and save 26%
Buy 400 for $0.39 each and save 34%
Buy 500 for $0.34 each and save 43%

Qty:

Connector 1*

Qty:

Connector 2*

Qty:

Choose Assembly Option*

Qty:

Price as configured: $0.00

Qty:

Details

Build your own cable!

Tram 8XF-G is double shielded coaxial cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!

Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

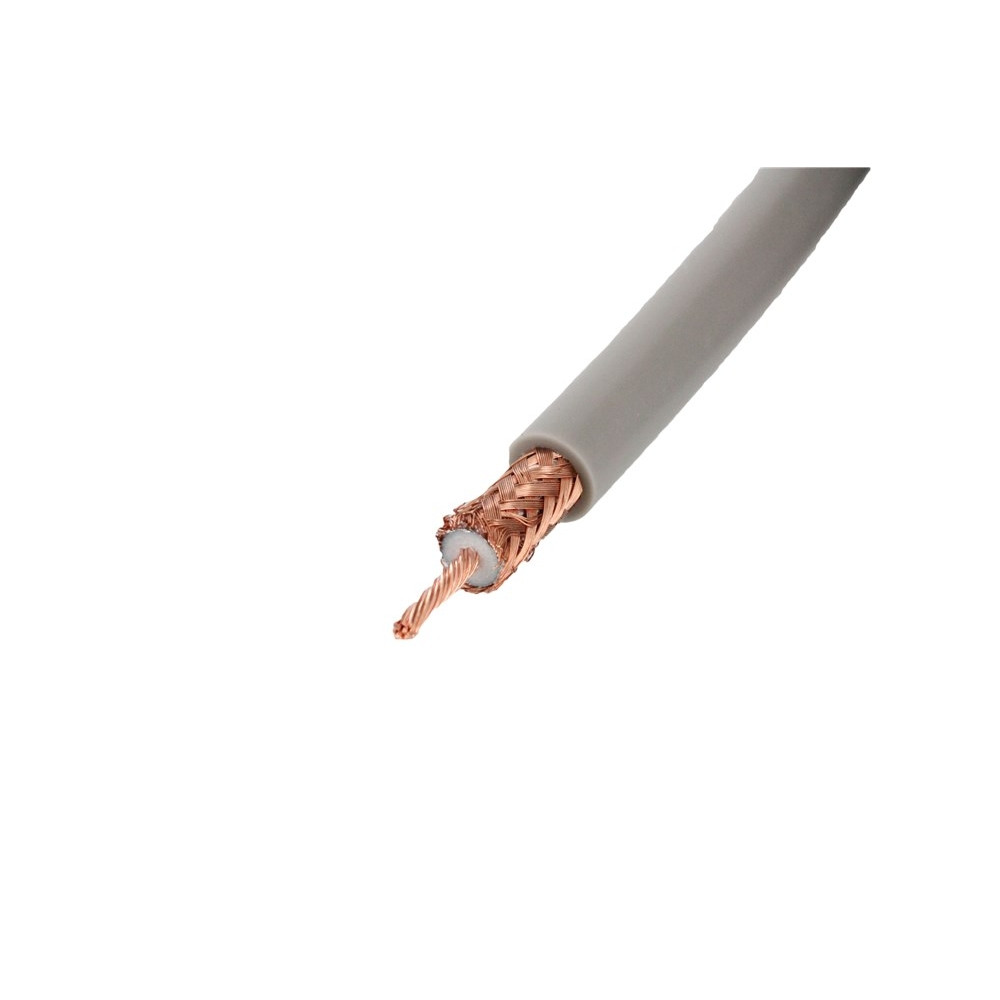

Tram Double Shielded RG-8X Cable

RG-8X type
Bare copper braid 95% aluminum foil 50 ohms 78% VOP
Stranded bare copper center conductor 19/29 ga. (0.011"/19/0.287mm)
Polyethylene foam insulation 0.155'/3.94mm
Capacitance: 25.90 pF/ft. (85.00 pF/m)
Gray PVC jacket 0.242" (6.15mm)

8XF-G Attenuation

Frequency MHz	Attenuation db/ft.	Attenuation dB/m
100	3.69	12.10
200	5.40	17.7
400	7.99	26.20
700	11.10	36.40
900	12.80	42.00

Additional Information

Coax Size	.240" / RG-8X / 7mm

Outstanding customer service review by The Dude on 6/6/2021

Rating

Very quick shipping and amazing customer service after the sale. Custom work was exactly as promised. Highly recommend
Great quality product, would buy it again! review by N8WUG on 3/4/2018

Rating

I use this coax on my HF, VHF and UHF antenna installations.
great buy review by jim on 2/19/2018

Rating

Excellent antenna for reception.
