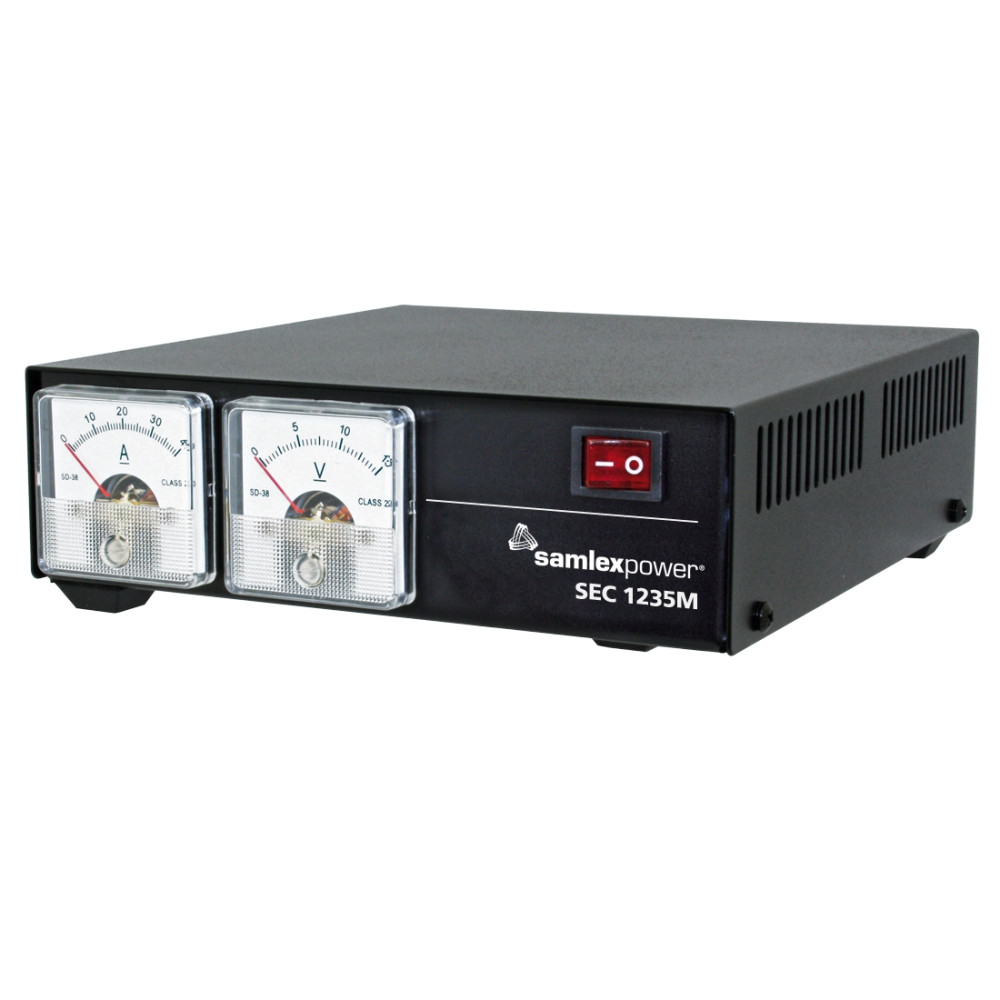

Samlex SEC-1235M 30 Amp Switching Power Supply

Product was successfully added to your shopping cart.

- The product Ritron BC-A Replacement Wall Charger for JMX Series Radios has been added to comparison list.

Details

Samlex SEC-1235M is a 30 Amp switching power supply designed specifically for land mobile radio applications. This high efficiency, advanced power supply produces clean, reliable power. It's great for converting mobile two way radios to base stations.

Features:

Genuine Samlex high efficiency switching power supply
Advanced switch-mode technology
Voltmeter and ammeter
Reliable power with minimum weight and size
Highly filtered to suppress RFI
Circuit innovations minimize output voltage ripple and RFI
Input voltage can be set at 120VAC or 240VAC (internal jumper)
UL listed to both USA & Canadian safety standards.
Screw terminal connectors
Over-current, short-circuit and over-voltage protection
Detachable power supply cord with NEMA 5-15P plug
Conforms to FCC Part 15(B), class B digital device
Internal AC side fuse
Power ON / OFF switch
Safe for tabletop placement
Part number: SEC-1235M
Designed specifically for land mobile radio applications
Works with mobile two way radios

Technical Specs:

Power Input: 120V AC, 60Hz 7.5A
Power Output: 13.8V DC ± 0.1V continuous: 30A ; current Limit: 35A, auto recovery
DIMENSIONS (W X D X H): 7.28 x 8.19 x 2.4 (in) / 18.5 x 20.8 x 6.1 (cm)
Weight: 3.4 (lbs) / 1.54 (kg)

Applications:

Two way radio base stations
Communications systems
Security systems
Test equipment
Plotters
GPS receivers
Automotive & Marine displays
DC computers
12 Volt lighting systems
OEM applications

Additional Information

Type	Switching
Features	Amp Meter, Fan, Overload Protection, Volt Meter
Maximum Amps	30
Mount Style	Desktop
Warranty	3 Years

Supplies power to both 1000G Plus review by Nanuk on 5/14/2024

Rating

I wasn't sure if one power supply would be able to supply both 1000G Plus but Customer service said it would work fine. One I got the system put together and turned on the power supply and radios it had no problems supplying power to both of them.
Samlex SEC-1235 M 30 Amp Switching Power Supply. review by Scott E. on 3/4/2024

Rating

Great power supply to handle a base station radio like the KG-1000G moblie.
It's a power supply - but the meters are fun to watch! review by Tim J on 5/14/2022

Rating

Needed a power supply for my base-installation of KG-1000G and all those in the $100-range were sold out so I had to pick one, and so I chose the one w 5-stars. Any 30A would have worked but pickins were slim. Not disappointed. Thanks to all the crew at BTWR!
Power review by Rezmedic on 10/12/2021

Rating

More then enough to handle both base radios.
