RigExpert AA-35 ZOOM HF Antenna Analyzer (60 kHz to 35 MHz)

Product was successfully added to your shopping cart.

Details

Every job needs the right tool, and when it comes to fast, reliable and accurate antenna testing, the RigExpert AA-35 ZOOM HF Antenna Analyzer does it all! The AA-35 ZOOM is designed specifically for measuring SWR (standing wave ratio), return loss, cable loss, and other parameters of cable and antenna systems from 60 kHz to 35 MHz, all in a portable, self-calibrating package.

With the AA-35 ZOOM, you can easily perform the following tasks:

Rapid check-out of an antenna
Tune an antenna to resonance
Compare characteristics of an antenna before and after specific event (rain, hurricane, etc.)
Make coaxial stubs or measure their parameters
Cable testing and fault location
Measure cable loss and characteristic impedance
Measure capacitance or inductance of reactive loads

Interface:

320×240 color TFT display
6×3 keys on the water-proof keypad
Multilingual menus and help screens

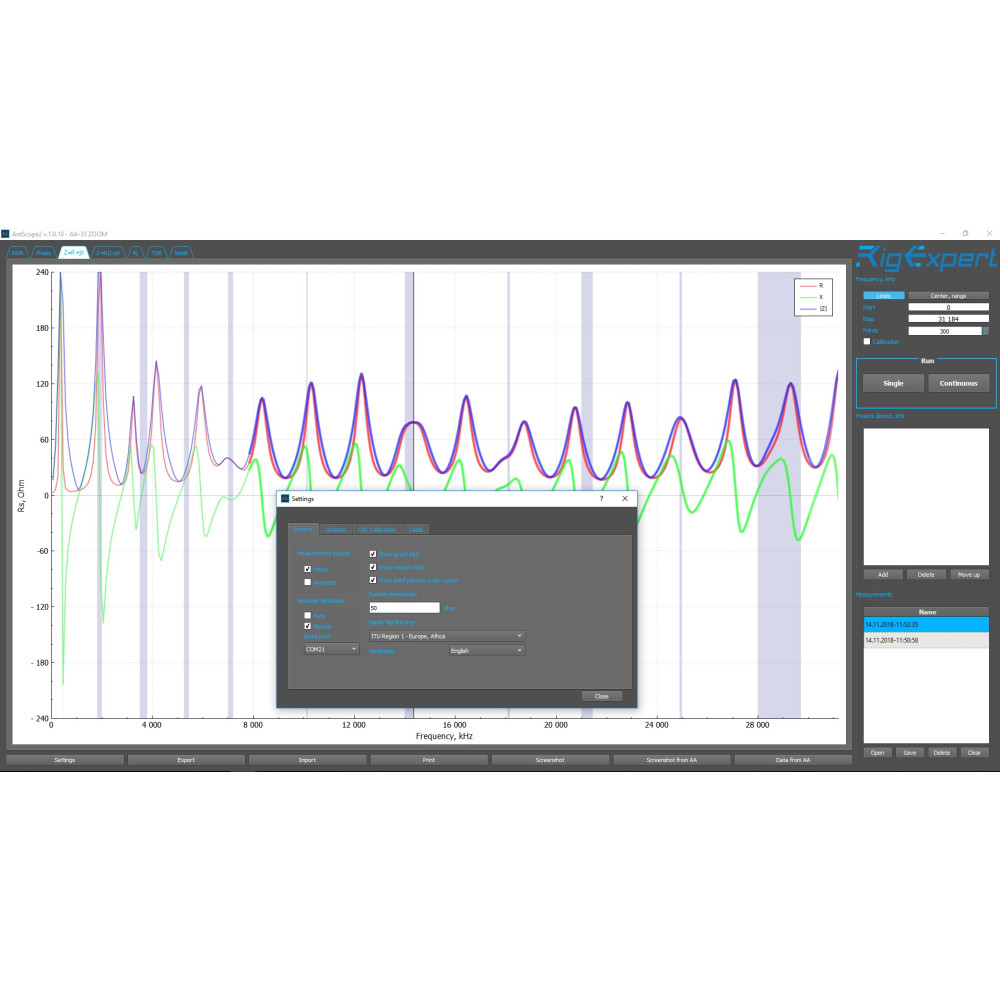

USB connection to a personal computer

Display modes:

SWR at single frequency
SWR, return loss, R, X, Z, L, C and phase angle at single frequency
SWR chart, 100 points
R, X chart, 100 points

The AA-35-ZOOM operates on two AA 1.5V alkaline batteries for up to 4 hours of continuous measurement. It can also be connected to a PC or a DC adapter with USB socket for continuous power.

Why struggle with multiple tools for antenna testing? Get the RigExpert AA-35-ZOOM and do it all!

Included with the RigExpert AA-35 ZOOM

RigExpert AA-35 ZOOM HF Antenna Analyzer
Soft case
USB cable
Alkaline batteries
User’s manual

RigExpert AA-35 ZOOM Specifications

Frequency range: 0.06 to 35 MHz
Frequency entry: 1 kHz resolution
Measurement for 25, 50, 75 and 100-Ohm systems
SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
SWR display: numerical or analog indicator
R and X range: 0…10000, -10000…10000 in numerical modes, 0…1000, -1000…1000 in chart modes
Non Volatile memory: 10 slots to save measurement results
Power Output: Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged
Connector type: UHF (SO-239)
Output signal shape: square, 0.06 to 35 MHz
Output power: +13 dBm (at 50 Ohm load)
Dimensions: 4.1 in x 8.1 in x 1.4 in (103 mm x 207 mm x 37 mm)
Operating Temperature: 32…104 °F(0…40 °C)
Weight (w/o batteries): 10.9 oz (310 g)
