Messi & Paoloni Hyperflex 13 Premium .500" Coax Cable - Custom Length (per foot)

100 3 100 0

3 Review(s) | Add Your Review

Quick Overview

Availability: In stock

From: $2.69

To: $54.67

Price as configured: $0.00

Email to a Friend

Cable Length (Enter number of feet needed)*: Messi & Paoloni Hyperflex 13 Premium .500" Coax Cable - Custom Length (per foot) +$2.69

Qty:
Connector 1*: Qty:
Connector 2*: Qty:
Choose Assembly Option*: Qty:

Price as configured: $0.00

Qty:

Details

Build your own cable!

Messi & Paoloni Hyperflex 13 premium coaxial cable is a must-have for the most ambitious installations. It can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can assemble the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!

Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

Why choose Messi & Paoloni Hyperflex 13 cable?

12.7mm (.500") cable

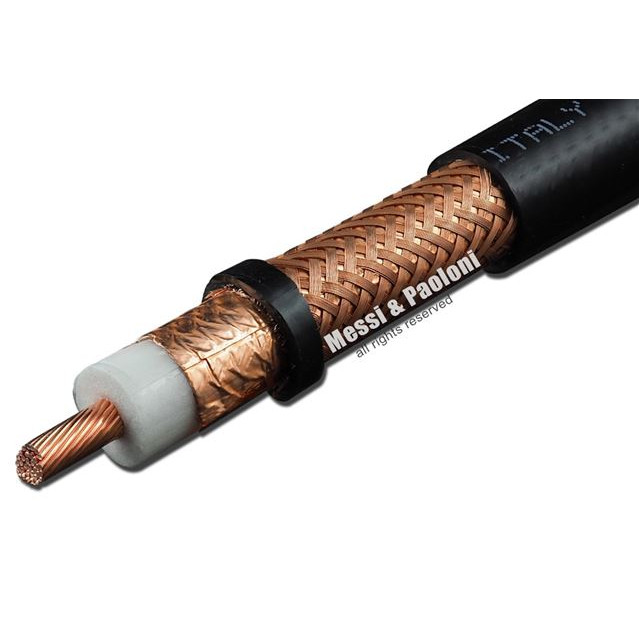

The only coaxial cable that has 37 wires on the central conductor
Designed to withstand tight bending and rotor antennas
Equal attenuations to stiffer and bulkier 15mm (.500") cables
A must-have for the most ambitious installations
Excellent performance with the lowest possible signal loss, even at higher frequencies and long distances
Better than Ultraflex 13 at high frequencies (UHF) and slightly more flexible

Hyperflex 13 Attenuation (68°F / 20°C)

Frequency MHz	Attenuation db/100ft.	Attenuation dB/100m
1.8 MHz	0.1	0.5
3.5 MHz	0.2	0.6
7 MHz	0.2	0.8
10 MHz	0.3	1.0
14 MHz	0.3	1.1
21 MHz	0.4	1.3
28 MHz	0.4	1.5
50 MHz	0.6	2.0
100 MHz	0.8	2.8
144 MHz	1.1	3.6
200 MHz	1.3	4.2
400 MHz	1.8	6.1
430 MHz	1.9	6.4
800 MHz	2.7	9.0
1000 MHz	3.0	10.1
1296 MHz	3.5	11.7
2400 MHz	5.0	16.6
3000 MHz	5.7	18.9
4000 MHz	6.8	22.4
5000 MHz	7.8	25.6
6000 MHz	8.7	28.7
7000 MHz	9.6	31.7
8000 MHz	10.5	34.5
9000 MHz	11.4	37.5
10000 MHz	12.3	40.5
12000 MHz	14.0	46.0

Videos

Additional Information

Warranty	2 Years
Coax Size	.500" / 13mm

the best review by John K on 10/8/2022

Rating

using 20 feet for 1296 jumper and operation is flawless.
Excellent product! review by AnthonyP on 5/16/2022

Rating

Nice product to work with! Buy the scissors to cut it and attach end instead of going old school! Flexible.
Best High End Ham Cable Available review by rus5 on 5/14/2022

Rating

Amazing specs and amazing quality. Best cable I've ever used after over 50 years of being a ham.

"Buy Two Way Radios" did a great job filling my on-line order for a custom length. My only complaint is the way cable length is entered in the order form. It's entered as "quantity" in one place while "quantity" also shows up in ANOTHER place as well, this time presumably meaning "number of cable assemblies of the length desired". Very amateurish ordering system.
