Messi & Paoloni Extraflex Bury 13 Premium .500" Coax Cable - Custom Length (per foot)

100 4 100 0

4 Review(s) | Add Your Review

Quick Overview

Availability: In stock

From: $2.84

To: $54.82

Price as configured: $0.00

Email to a Friend

Cable Length (Enter number of feet needed)*: Messi & Paoloni Extraflex Bury 13 Premium .500" Coax Cable - Custom Length (per foot) +$2.84

Qty:

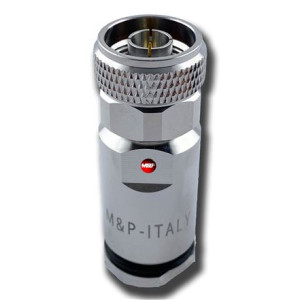

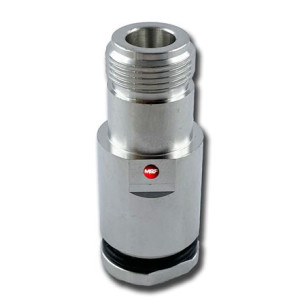

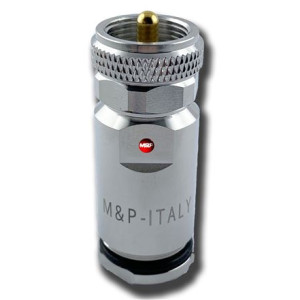

Connector 1*: Qty:
Connector 2*: Qty:
Choose Assembly Option*: Qty:

Price as configured: $0.00

Qty:

Details

Build your own cable!

Messi & Paoloni Extraflex Bury 13 premium coaxial cable is specifically made for direct burial and outdoor use and is a must-have for the most ambitious installations. It can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can assemble the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!

Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

Why choose Messi & Paoloni Extraflex Bury 13 cable?

12.7mm (.500") cable
UV shielded polyethylene for direct burial and outdoor use
Coaxial cable has 37 wires on the central conductor
Designed to withstand tight bending and rotor antennas
Equal attenuations to stiffer and bulkier 15mm (.500") cables
A must-have for the most ambitious installations
Excellent performance with the lowest possible signal loss, even at higher frequencies and long distances

Extraflex Bury 13 Attenuation (68°F / 20°C)

Frequency MHz	Attenuation db/100ft.	Attenuation dB/100m
1.8 MHz	0.1	0.5
3.5 MHz	0.2	0.6
7 MHz	0.2	0.8
10 MHz	0.3	1.0
14 MHz	0.3	1.1
21 MHz	0.4	1.3
28 MHz	0.4	1.5
50 MHz	0.6	2.0
100 MHz	0.8	2.8
144 MHz	1.1	3.6
200 MHz	1.3	4.2
400 MHz	1.8	6.1
430 MHz	1.9	6.4
800 MHz	2.7	9.0
1000 MHz	3.0	10.1
1296 MHz	3.5	11.7
2400 MHz	5.0	16.6
3000 MHz	5.7	18.9
4000 MHz	6.8	22.4
5000 MHz	7.8	25.6
6000 MHz	8.7	28.7
7000 MHz	9.6	31.7
8000 MHz	10.5	34.5
9000 MHz	11.4	37.5
10000 MHz	12.3	40.5
12000 MHz	14.0	46.0

Videos

Additional Information

Warranty	2 Years
Coax Size	.500" / 13mm

Outstanding Coax review by JT from NC on 2/5/2023

Rating

Premium quality product, outstanding service!
Its Good! review by David on 11/21/2022

Rating

I have been using this for about a month on my repeater 75’ run up tower…I was using LMR400 for this tower but was having issues with SWR being at 1.8 was the best I could get. With the new Messi & Paoloni cable 1.4 was the best I could get! I took the tower down this past weekend and added some ground plane radials that I made just experimenting really in the process of testing I hooked up the LMR400 again without changing anything else the SWR went right back up to 1.85 After adjusting the ground pane radials with the Messi & Paoloni cable 1.01 SWR with the LMR400 1.45 All I needed to see! Dave
Great deal! review by Mike on 11/7/2022

Rating

Superb product for 432 MHz and a great supplier. Shipped very quickly.
Spectacular product review by John on 10/3/2022

Rating

Excellent quality coax properly terminated and running nicely on 23cm: can't ask for a better product! And, it beats the competition!
