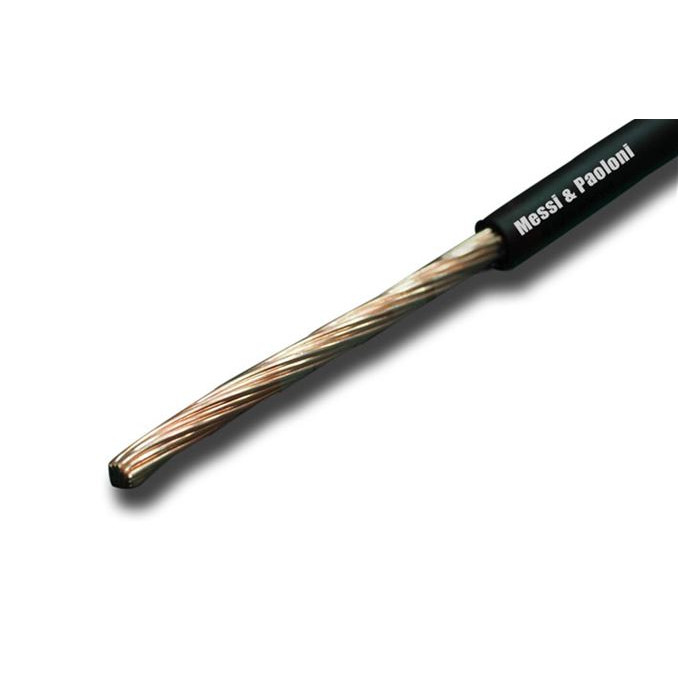

M&P Dipoflex Dipole and Grounding Cable

Messi & Paoloni Dipoflex Dipole and Grounding Cable is the ultimate choice for use in the construction and grounding of dipole antennas. The 1.25/Sq mm. conductor and strong, flexible rope composed of 19 copper wires provide excellent conductivity at all frequencies. Packaged in a UV-resistant sheath of polyethylene, this cable has a long life even under extreme conditions. It can be ordered in custom lengths according to your needs. Choose the length you need for your custom antenna project.

Price is per foot.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

Why Dipoflex Dipole and Grounding Cable?

• Dipole antenna wire, made of pure copper geometrically stranded.
• Conductor: Copper 19 X 0.29mm (19 X 0.011 in)
• Diameter: 1.45 mm (0.057 in)
• Section: 1.25 sq.mm (0.0019 in2)
• Electrical resistance: 15 Ohm/Km (4.6 Ohm/1000ft)
• Max. applicable Power = 4000W
• Sheath: PE black with UV filter
• Diameter: 3.1 mm (0.122 in)
• Tear resistance: 45 Kg (99.2 lb)
• Velocity Factor: VF = 1 (299.792 Km/S)
• Weight: 1.338 Kg/100m (2.95 lb/100ft)
