ICT Icom Mobile Radio Base Station Kit (IC04)

100 1 100 0

Quick Overview

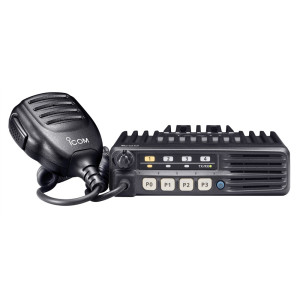

The ICT IAPS04 (formerly CS120-20AG/ICO4) combines the ICT12012-20AG switching power supply with BASE-ICO4 base station cover to create a complete, ready-to-use base station assembly designed and customized to house and convert select Icom mobile radios into a fully functional base station. The ICT power supply incorporates extra filtering, providing a virtually noise-free environment and trouble-free operation. Works with Icom F121S, F221S, F5011, F5021, F5121D, F5220D, F6011, F6021, F6121D and F6220D mobile radios.

Free Shipping

Availability: Out of stock

$240.00

Email to a Friend

Details

ICT12012-20AG switching power supply
BASE-ICO4 base station cover
Model IAPS04 (formerly CS120-20AG/IC04)
Attractive finish
Lightweight
Sleek profile
Easy to install
Input voltage: 90 - 130 VAC
Input Frequency Range: 50 - 60 Hz
Output voltage: 13.8 VDC +/- 150 mV
Output current: 20.0 Amps(peak) 17.0 Amps(continuous)
Current Limiting: 20.5 Amps
Line Regulation: 0.20%
Load Regulation: 0.85%
Output Ripple (Max): 25 mV RMS
Efficiency (Min): 85%
Fuse: 5A
Operating Temperature: -50°F to 125°F
Dimensions (L x W x H): 8.51" x 6.45" x 4.2" / 21.61cm x 16.38cm x 10.66cm
Weight: approx. 2.22kg. (4.9 lbs.)
Works with Icom F121S, F221S, F5011, F5021, F5121D, F5220D, F6011, F6021, F6121D and F6220D mobile radios.
One year warranty

Additional Information

Warranty	1 Year

Great product and service! review by Capt. on 7/18/2018

Rating

Found the exact replacement for a faulty unit that failed after a power surge! Good price and quick shipping....much appreciated!
