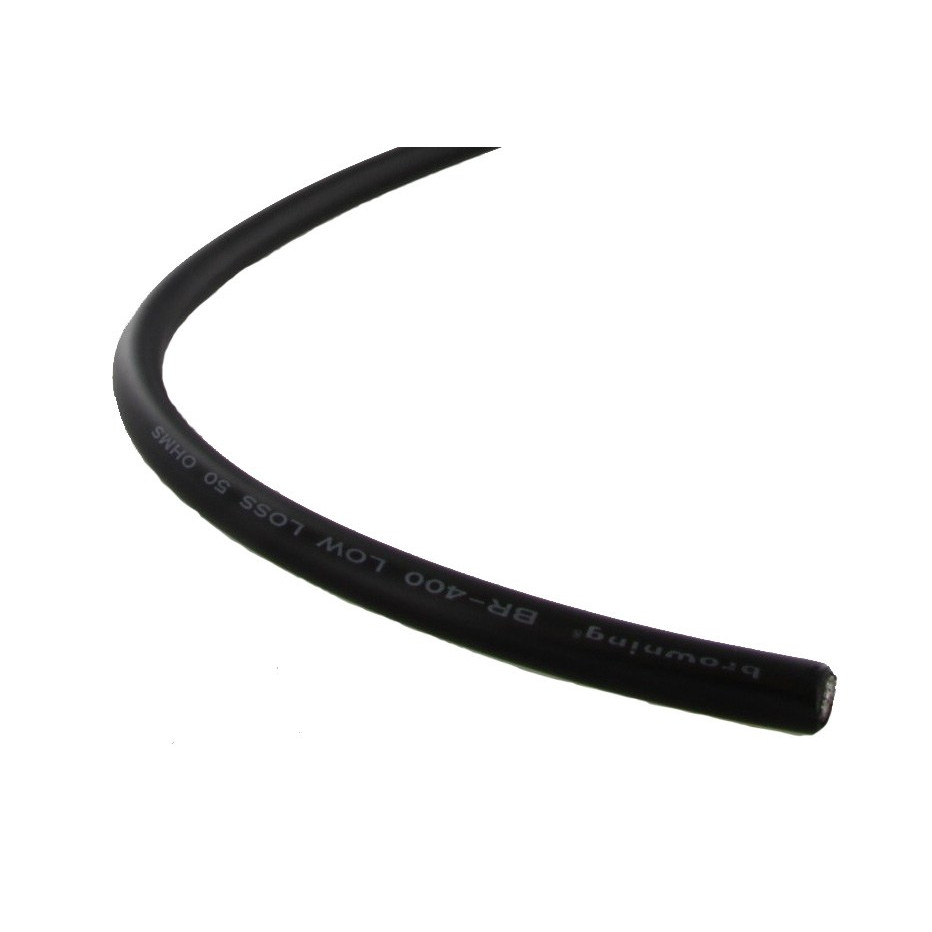

Browning BR-400 Coax Cable Custom Length (per foot)

100 2 100 0

2 Review(s) | Add Your Review

Quick Overview

Availability: In stock

From: $1.49

To: $39.47

Price as configured: $0.00

Email to a Friend

Cable Length (Enter number of feet needed)*

Browning BR-400 Coax Cable Custom Length (per foot) +$1.49

Buy 12 for $1.48 each and save 1%
Buy 18 for $1.47 each and save 2%
Buy 24 for $1.46 each and save 3%
Buy 30 for $1.45 each and save 3%
Buy 40 for $1.44 each and save 4%
Buy 50 for $1.43 each and save 5%
Buy 60 for $1.42 each and save 5%
Buy 70 for $1.40 each and save 7%
Buy 80 for $1.39 each and save 7%
Buy 90 for $1.38 each and save 8%
Buy 100 for $1.37 each and save 9%
Buy 200 for $1.24 each and save 17%
Buy 300 for $1.11 each and save 26%
Buy 400 for $0.99 each and save 34%
Buy 500 for $0.86 each and save 43%

Qty:

Connector 1*

Qty:

Connector 2*

Qty:

Choose Assembly Option*

Qty:

Price as configured: $0.00

Qty:

Details

Build your own cable!

Browning BR-400 cable can be ordered in custom lengths according to your needs. Choose the lengths you need with the connectors you want. You can solder or crimp the connectors onto the cable yourself or we can make the cables for you ready to use for a nominal fee. It's your choice!

Price is per foot. Connectors are optional and have an additional charge per connector.
IMPORTANT NOTE: This item is made to order. Due to the customization of this product, all sales are final. No refunds.

Browning BR-400 Coax Cable

Braided 0.405 inch diameter coaxial cable
Low loss RG-8/RG-213/9913 type
High velocity gas-injected foam polyethylene dielectric - 85%
100% shield coverage—95% tinned copper braid plus bonded aluminum tape
Copper coated aluminum inner conductor
Black polyethylene jacket

Electrical Specifications

Velocity of propagation - 85%
DC breakdown - 2500 Volts
Peak power rating - 16kW
DC resistance, inner conductor (ohms) - 1,39/1000'(4.56/km)
DC resistance, outer conductor (ohms) - 1.65/1000' (5.41/km)
Jacket spark-volts RMS - 8,000
Impedence - 50 Ohms
Capacitance - 23.9 pF/ft. (78.4 pF/m)
Inductance - 0.060 uH/ft. (0.20 uH/m)
Shielding effectiveness - >90 dB

BR-400 Attenuation and Average Power Rating

Frequency MHz	Attenuation db/100ft.	Attenuation dB/100m	Avg. Power KW
30	0.7	2.2	3.3
50	0.9	2.9	2.6
150	1.5	5.0	1.5
220	1.9	6.1	1.2
450	2.7	8.9	0.8
900	3.9	12.8	0.56
1500	5.1	16.8	0.43
1800	5.7	18.6	0.39
2000	6.0	19.6	0.37
2500	6.7	22	0.33

Additional Information

Coax Size	.400" / 10mm

Browning BR 400 Cable review by Frank EBR on 1/15/2024

Rating

Works well at this frequency.
Excllent review by Jon on 8/13/2019

Rating

Currently using 60ft for a dual band repeater setup, excellent power handling and no issues, using remainder of 20ft to make jumpers to replace old jumpers
